Inter-M Americas Inc PAC-5600
Multi-Zone All-In-One 2 Bus Mixer Amplifier

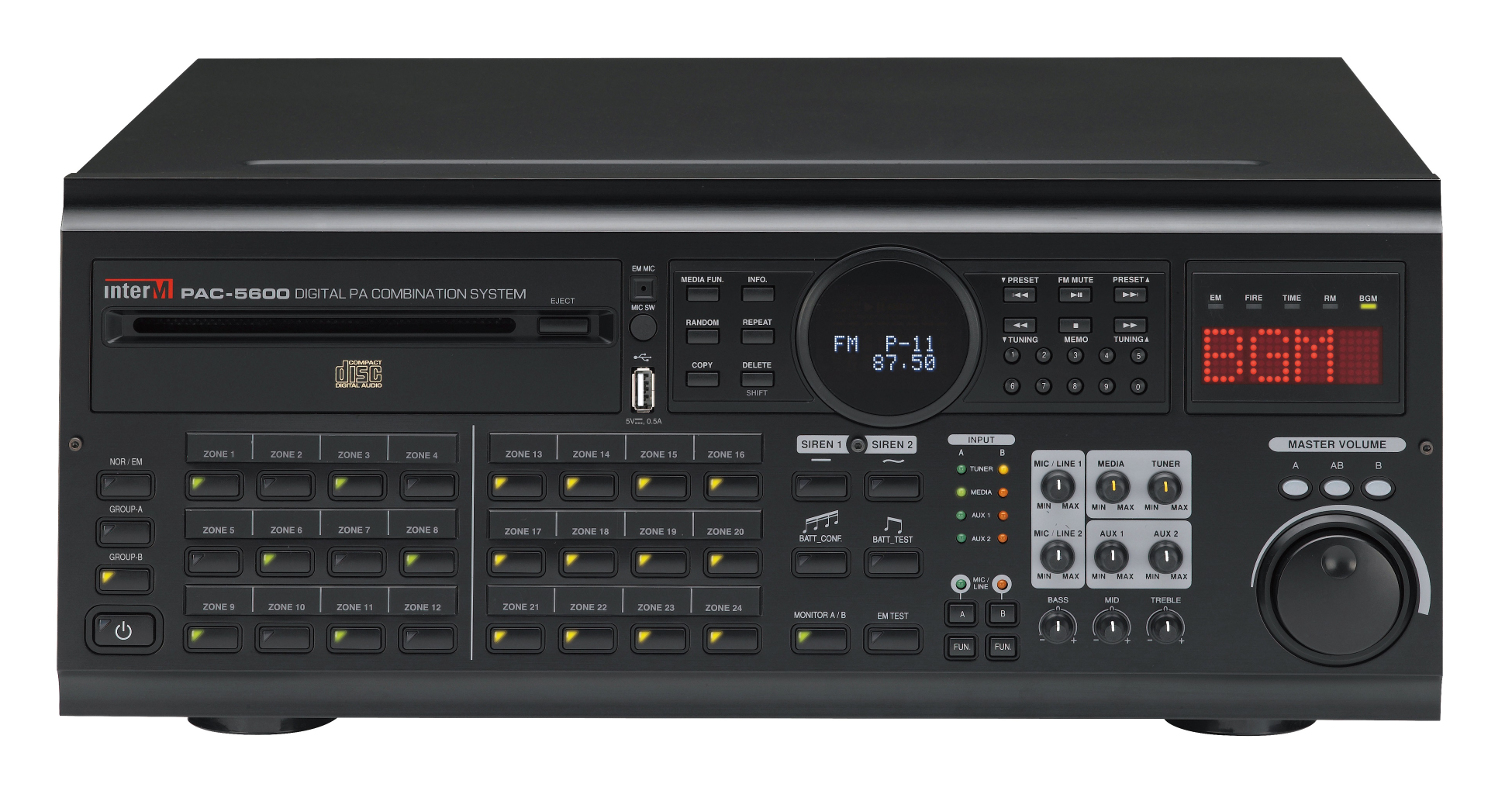

The Inter-M Americas PAC-5600 multi-zone all-in-one 2 bus mixer amplifier.

The PAC-5600 is the latest generation combination all-in-one public address system, which was inspired by Inter-M’s PAC-5000 design. With its dual 300 watt per channel of Class D amplifier, the PAC-5600 offers twice as much power than its predecessor, the PAC-5000. New features include web browser control configuration, multiple source playback with an internal MP3 player, multi-zone paging, emergency prerecorded messaging, and a built in speaker line checker.

The PAC-5600 mixer amplifier is a digital multi-zone amplifier system, which offers up to 24 separate zone switching/selection and BGM facilities. The PAC-5600 has 24 zone outputs separated into 2 groups of 12, which are each powered by a 300 watt amplifier for a total of 600 watts of power. The PAC-5600 also includes an AM/FM tuner, a media, and a CD Player. The mixer contains 6 microphone inputs on 3 pin XLR, a telephone paging input, and 2 auxiliary inputs on dual RCA sum-to-mono.

The Inter-M PAC-5600 is both mains and DC powered, and is also fully programmable and controllable by webenabled devices that include tablets and smart phones. The PAC-5600 is an ideal all-in-one compact integrated system that has many applications, which include shopping centres, halls, office buildings, retirement homes, and apartment complex installations.

Inter-M Americas PAC-5600 Features:

• Budget and space saving installation: The Systemincorporates most of the current PA functions plus Emergency and normalbroadcasting abilities thus allowing budget and space saving installation.
• Dual broadcasting system: With two-channel(300W+300W) high power amplifier built-in, dual broadcasting is possible in 24Zones separated by A/B channels.
• Digital processing & digital amplifier: Adoptingthe use of CLASS-D Amplifier to reduce the total weight, power consumption andoperating temperature.
• Built in various sound sources: The system providesFM Tuner, Media (CD/DRP/USB) player and two AUX (1,2) inputs for flexibleusage.
• Life time extension of cd mechanism: Has the abilityto copy the music CD to the internal memory (DRP) to extend the life of the CDmechanism.
• USB hosting: MP3/WMA files on the USB memory can becopied to internal memory (DRP) or play directly.
• Remote control support:  Using a network portfor remote control from the web page is possible. However, CD EJECT, TUNERMemory operation including each input level volume cannot be controlled.
• System expansion: System can be expanded up to 4units via the LINK-IN/OUT terminals while sharing the audio source. (MASTER 1Unit, SLAVE 4 Units)
• 24 Channel speaker select (zone 1 - zone 24): Thesystem provides 24 channel zone selections, which can be divided into twogroups for multiple broadcast areas and with system expansion total of 120channels can be operated.
• EQ adjustment: EQ adjustment is possible withbuilt-in DSP.
• Remote mic connection: Maximum of four remote MICscan be connected to one unit of the system, and with installation of key padone of the four units can be used up to maximum of 120 channels.
• Built in monitor speaker: One can monitor thebroadcast content with a built-in monitor speaker.
• Emergency power and battery charging: System hasbattery charge connect terminal for battery charge to provide emergency power.
• Fire detection and emergency broadcasting:  Thesystem provides 24 channel sensor input terminals for automatic fire alarmbroadcasting. It also provides the recording function of personalized alarmmessage.
• Chime and siren: Built-in Chime (4 Scale, 2 Scale)and Sire (Continuous Wave) can be used to broadcast in the event of anemergency. Also users can change the Siren and Chime.
• Increased inputs mic/lin: System has 5 MIC/LINE inputjacks that can be selected by a switch, phantom power (DC 24V) is alsosupplied for enhanced compatibility.
• Built-in EM microphone (condenser microphone): EMmicrophone is built-in to the front panel making emergency broadcast a simpletask.
• MP3 / WMA support: Unit supports MP3/WMA and CD-DA.
• Pre-programmed broadcasting:
• Broadcast can be pre-programmed by either PC TIMER orstored source.
  • PAC-5600: Pre-Program Maximum 50/Holiday Maximum 30 (Stored Source, PC TIMER).
  • PAC-5000A: Pre-Program Maximum 100 (PC TIMER).
  • (Pre-Programs can be controlled by broadcasting web pages and Windows applications)
• Rack mount: Rack mount bracket is included with theunit.
• Speaker line check function: Check connected speakerfor functionality.
• Battery check function: Check the condition of the battery.
