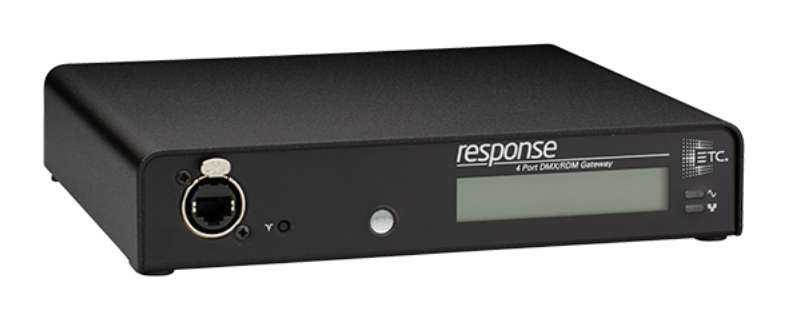

ETC/Elec Theatre Controls RSN-TERM
Response 4-port DMX/RDM Gateway with 4 Terminal Connectors

OUR PART #:  RSN-TERM

ETC’s Response DMX/RDM Four-Port Gateway system provides data distribution using the quality and reliability of ETC’s network technology.
Learn More
Our Price: $995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls RSN-TERM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ETC’s Response DMX/RDM Four-Port Gateway system provides data distribution using the quality and reliability of ETC’s network technology. This model, the RSN-TERM, is a version that comes with four DMX terminals.

This gateway is ideal for networking systems using the industry standard streaming ACN™ (sACN) protocol and is compatible with mounting and power supply accessories available for other DMX/RDM gateways. In the same manner as other ETC 4 Port gateways, it uses bidirectional Ethernet communication with other network devices to send or receive DMX512 data and RDM messages. It’s available for use as a table-top, rack-mount, or pipe-mounted device.

Unlike the original Net3 line of Four Port gateways, the Response 4 Port gateway does not have interchangeable sleds. This creates a lighter, and more affordable product.

Common applications for the RSN-TERM include:

  • Roadhouses
  • Touring
  • University/professional theaters
  • Convention halls
  • Tech tables
  • Stage manager panels
  • System integration

ETC RSN-TERM Features:

  • Distributes DMX and RDM data to any input/output device over Ethernet
  • Supports Net3 protocol powered by ACN
  • DMX/RDM Output/Input
  • Simple configuration and service of each port
  • LCD screen for labeling, status and configuration information
  • Power and Network status indicators
  • Power over Ethernet (PoE) or external DC power supply
  • Configurable using Net3 Concert Software

ETC RSN-TERM Specifications:

  • Dimensions (H x W x D): 1.71 x 8.5 x 8.2 in.
  • Weight: 1.75 lbs
  • Shipping Weight: 3.5 lbs
  • Functional:
    • Supports Net3/ACN (ANSI E1.31 and E1.17)
    • Supports RDM (ANSI E1.20)
    • Supports USITT DMX512-A (ANSI E1.11)
    • USITT DMX512 and ANSI E1.11 DMX512-A compliant
    • Advanced Input Patch (AIP) allows any incoming address to be associated with any sACN address
    • Flexible Output Patch (FOP) allows a 512-address universe to begin at any output address
    • Support for per-address- or per-universe-level priority
  • Mechanical:
    • Menu button for backlight/paging control
    • Backlit LCD display for identification and status reporting and basic configuraton.
    • Rack-Mount/Portable/Touring:
      • Fabricated from 16-gauge cold-rolled steel
      • Black, Fine-textured, powder-coat finish
      • C-clamp and U-bolt hardware available
      • Half 19” equipment rack width allows for up to eight DMX ports in 1U height
    • Network, power and data activity LED indicators:
      • Blue power indicator, green network activity indicator
      • Bi-color DMX activity indicator
    • Front-panel RJ45 for connection to lighting network
    • Reset button for hard reset or forced reboot
  • Processor:
    • Maximum delay time from input to output not greater than one packet time
    • Selectable DMX refresh rate with a maximum at least 40Hz
  • Environmental:
    • Ambient operating temperature: 32° to 104°F (0° to 40°C)
    • Operating humidity: 5% - 95% non-condensing
    • Storage temperature: -40° to 158°F (-40° to 70°C)
  • Electrical:
    • Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX and 802.3af for Power over Ethernet
    • Optional 8-28vDC power input for use with non-PoE systems
    • Maximum five-watt current draw
    • CE compliant and ETL listed
  • Configuration:
    • Configuration provided by Net3 Concert:
      • Supports up to 512 DMX addresses per port
      • Supports up to 63,999 Streaming ACN universes
    • Up to 2,048 channels in combination of data input or output
    • DMX data input or output configurable by user
    • Multiple outputs of a single DMX universe (DMX splitter) from a single Gateway
    • Supports discrete DMX universe outputs per port
    • Multiple sources may be combined to the network with each source or address allowed an independent priority
    • Individual port start address and offset
    • User-configurable labeling
