Optoma ZU850
8000 Lumens WUXGA Installation Laser Projector - Body Only

OUR PART #:  ZU850

Our Price: $11,199.00
List Price: $20,399.00
You save 45%!
Write the first review.
Related Products
Projection Calculator

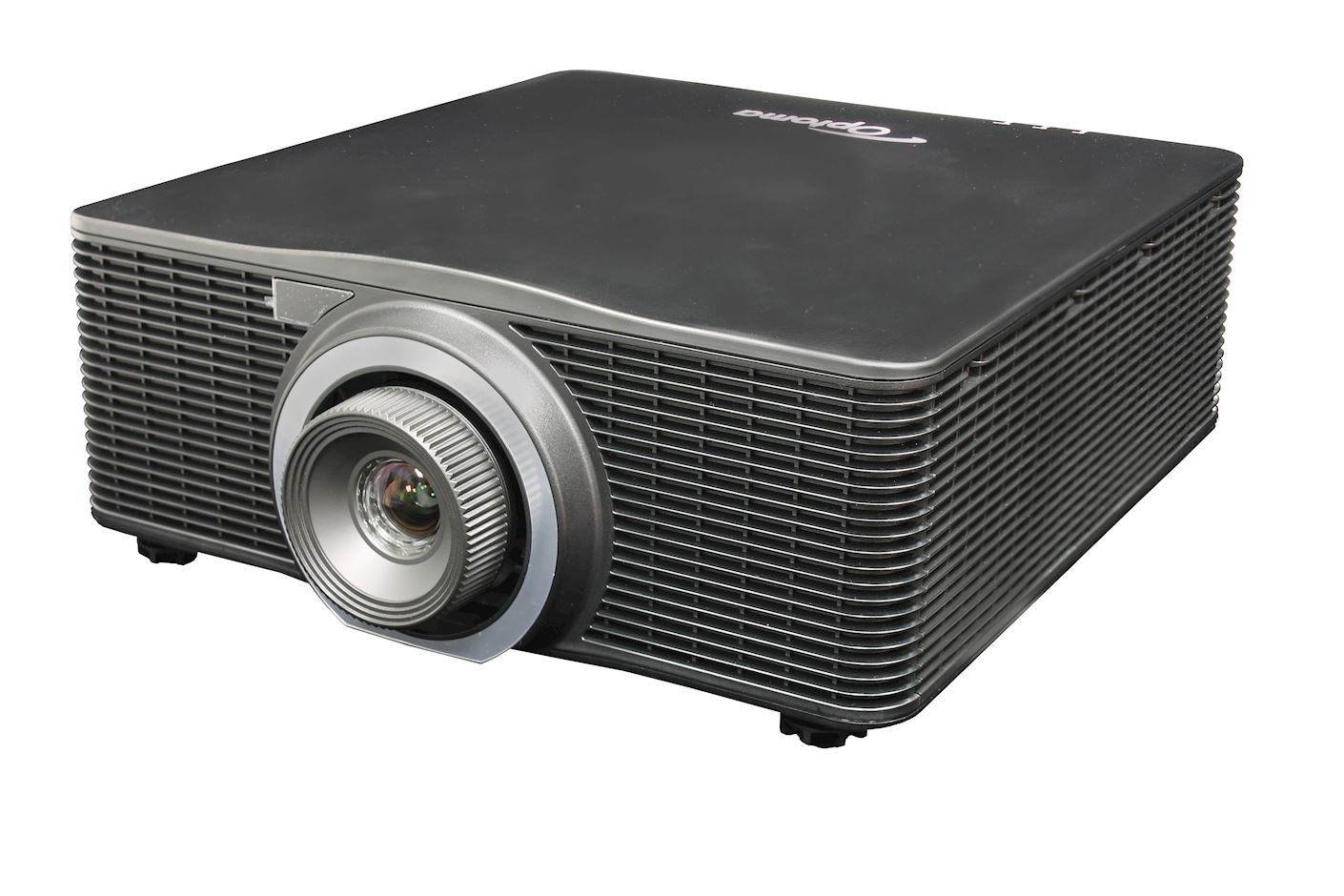

The ZU850 from Optoma is a WUXGA, 8000 lumen professional installation laser phosphor projector cable of providing up to 30,000 hours of impressive, virtually maintenance free operation. This technology eliminates the need for lamp and filter replacements for a low cost of ownership. This model is designed for large meeting rooms, boardrooms, auditoriums, museums, houses of worship and broadcast environment installations, the laser phosphor light source delivers vibrant colors and more consistent brightness, along with high resolution and contrast for stunning quality images.

NOTE: Some gear shown above are NOT INCLUDED and sold separately. No standard lens is supplied with this model. For more information on lens options for this and other Optoma products, please contact your Sales Pro.

This Optoma projector is part of the DuraCore family with dust-sealed, filter-free design with IP6X certification engine prevents dust and dirt from affecting the optical system, ensuring optimal image quality with minimal maintenance requirements. Motorized lens shift, zoom and focus combined with 360° and portrait operation mode provide total flexibility for simple, trouble-free installation. A choice of five premium-quality lenses ranging from 0.75:1 to 5.5:1 throw ratio that the ZU850 can be used for a variety of projection distances.

The ZU850 also offers an array of advanced connectivity options including HDMI, DVI-D, HDBaseT and 3G-SDI. Every aspect of the ZU850 has been carefully designed and built to suit the requirements of even the most complex professional installation, representing the ultimate in professional image projection.

Optoma ZU850 Includes:

  • ZU850 projector
  • AC power cord
  • VGA to VGA cable
  • Remote control
  • Carrying case
  • Batteries for remote
  • Multilingual CD-ROM user’s manual
  • Quick start card
  • Warranty card

Optoma ZU850 Features:

  • WUXGA with 8000 ANSI lumens and 10,000:1 contrast ratio produces a sharp luminous image
  • Engine built in multi color laser technology delivering a wider color gamut maintaining High Brightness
  • Built-in edge blending and image warping with portrait and 360° operation mode
  • Extensive connectivity options featuring HDMI, HDBaseT, 3G-SDI and wireless mirroring and streaming via USB dongle
  • DuraCore: providing 30,000 hours maintenance-free laser light source at full brightness
  • 5 interchangeable optical lens options with 24/7 mode operation

Optoma ZU850 Specifications:

  • Model: ZU850
  • Display Technology: Single DMD, 0.67” WUXGA DMD, TypeA, DC3 DLP® Technology by Texas Instruments™
  • Native Resolution: WUXGA 1920 x 1200
  • Brightness: 8000 ANSI lumens
  • Contrast Ratio: 2,000,000:1 (Extreme black enabled) 2000:1 (full on/full off)
  • Throw Ratio 3: 0.75:1~5.5:1 (interchangeable lenses)
  • I/O Connectors: 1 x HDMI In (version1.4), 1 x DVI-D (only support digital signal), 1 x VGA In (D-Sub 15pin) (Computer In or Component), 1 x HDBaseT, 1 x 3G-SDI, 1x VGA Out (Support VGA loops through to monitor) (Monitor Out), 1 x 3D SYNC Out, 1 x HDMI Out (version1.4), 1 x RS232 (D-sub 9 pin) (PC Control), 1x
  • Keystone Correction: V: +/- 20 %, H: +/- 20 %
  • Weight: 50.7 lbs (w/out lens)
  • Dimensions (WxHxD): 19” x 20.7” x 7.7”
  • Aspect Ratio: 16:10 (Native), 16:9, 4:3, Auto
  • Projection Screen Size: 50” - 300”
  • Projection Distance: 2.6 –115 ft (0.8 ~35 m)
  • Projection Lens: (No standard lens supplied) 5x lenses to choose from
  • Uniformity: 80%
  • Maximum Resolution: 1920 x 1200 WUXGA
  • Computer Compatibility: HD, WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac compatible
  • Video Compatibility: NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
  • Horizontal Scan Rate: 15.375–91.146KHz
  • Vertical Scan Rate: 24–85Hz, 120Hz
  • Noise Level (Eco mode): 32dB
  • Power Supply: AC input 100 – 240V, 50–60 Hz
  • Power Consumption: 770W (Bright), 395W (ECO)
  • Operating Conditions: 41°–104°F (5°–40°C), 85% max humidity
  • Security: Kensington® Lock Port, security bar and keypad lock
  • Remote Control: BR-3074W
  • Optional Accessories: Universal ceiling mount, DLP®Link™ 3D glasses, Wireless Dongle, Wireless HDMI system, Remote
  • Optional Wireless: No
  • Video: NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
  • Projection method: Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
  • Warranty: 5 year or 30,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector


  • 1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • 2 Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
  • 3 +/- 5% tolerance
