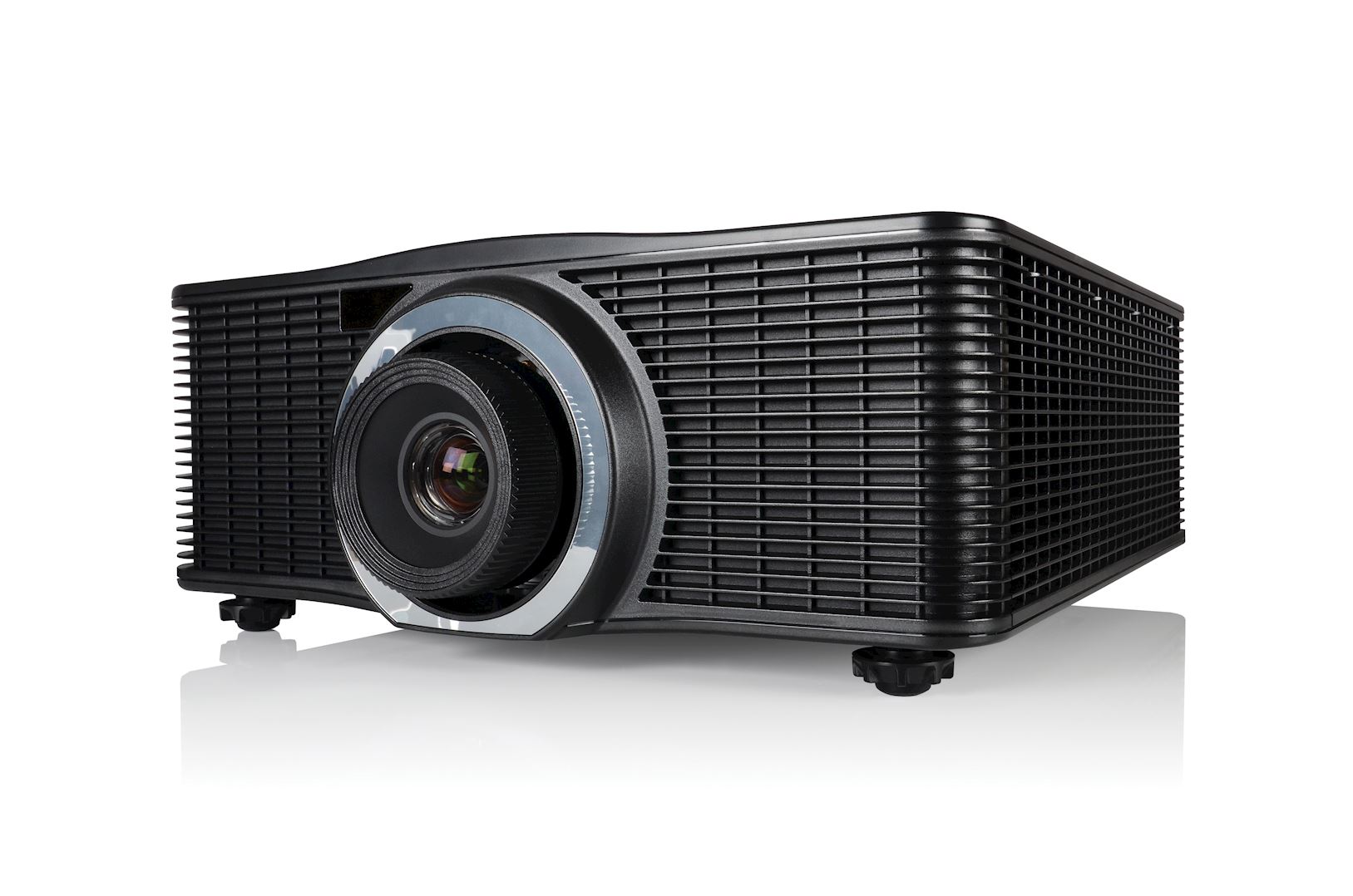

Optoma ZU650+
6000lm WUXGA Installation Laser Projector, Body Only

OUR PART #:  ZU650+

The Optoma ZU650+ is a lamp-less projector with laser phosphor technology, thus eliminating the need for lamp and filter replacements...
Learn More

Call for price! Not available online.
List Price: $17,999.00

Similar Products
Projection Calculator

The Optoma ZU650+ is a lamp-less projector with laser phosphor technology, thus eliminating the need for lamp and filter replacements, all while providing 20,000 hours of low-cost operation. This model features an industry unique Multi Color Laser (MCL) Technology on it's light source design, which delivers a wider color gamut while maintaining high brightness.

NOTE: Some gear shown above are NOT INCLUDED and sold separately. No standard lens supplied with this model. For more information on this and other Optoma products, please contact your Sales Pro.


The ZU650+ is a ProAV installation projector which comes with low-weight, quiet operation and 5 lens options. The ZU650+ is an ideal projector solution for museums, boardrooms, higher education, house of worship and smaller entertainment venues. Optoma's ZU650+ comes equipped with a variety of inputs, including HDBaseT and HDMI, the ZU650+ allows you to connect to a wide variety of HD devices to easily display your content. Using the HDBaseT port facilitates easy installations running up to 328' with a single CAT6 cable for: Video, Audio and Control.

Optoma ZU650+ Includes:

  • ZU650+ projector
  • AC power cord
  • VGA cable
  • Remote control
  • Batteries
  • Multilingual CD-ROM user’s manual
  • Basic user manual
  • Warranty card

Optoma ZU650+ Features:

  • 6000 Lumens WUXGA Laser
  • Built-in HDBaseT via RJ45 port
  • Engine built in multi color laser technology delivering a wider color gamut maintaining High Brightness.
  • 5 interchangeable lenses options
  • 360° and 1Portrait Mode operation
  • H/V Lens Shift and Keystone

Optoma ZU650+ Specifications:

  • Model: ZU650+
  • Display Technology: Single DMD, 0.67" WUXGA DMD, TypeA, DC3 DLP® Technology by Texas Instruments™
  • Native Resolution: WUXGA 1920 x 1200
  • Brightness: 6000 Center 5000 ANSI Lumens
  • Contrast Ratio: 2,000,000:1 (Extreme black enabled) 2000:1 (full on/full off) 250:1 ANSI
  • ANSI Contrast: 250:1 ANSI
  • Throw Ratio3: 0.75:1~5.5:1 (interchangeable lenses)
  • Zoom Type: Optical Zoom 1.26x~1.9x, Digital Zoom -5%V/H ~ +40%V/H
  • Lens Shift:
    • ±100% Vertical
    • ±30% Horizontal
  • I/O Connectors:
    • Input: 1x HDMI (version 1.4) (with locking screw) 1x DVI-D (only support digital signal) 1x VGA (D-Sub 15pin) (Computer In) 1x HDBaseT 1x Component (Y/Pb/Pr)
    • Output: 1x VGA Out (Support VGA loops through to monitor) (Monitor Out) Control 1x RS232 (D-sub 9 pin) (PC Control) 1x Wired in (3.5mm phone jack) (Remote In) 1x Wired out (3.5mm phone jack) (Remote Out) 1x USB type A (for WiFi dongle purpose) 1x Mini USB (for LAN FW upgrade only) (Service) 1x IR Receiver
  • Speaker (Watts): 10W
  • Keystone Correction: ±20° Vertical and Horizontal
  • Weight: 40 lb (18 kg) without lens
  • Dimensions (W x H x D): 19.1” x 20.1” x 7.7” (485 x510 x 196 mm)
  • Aspect Ratio: 16:10 (Native), 16:9, 4:3, Auto
  • Projection Screen Size: 50" ~ 300"
  • Projection Distance: 2.6'–115' (0.8~35 m)
  • Projection Lens: (No standard lens supplied) 5x lenses to choose from - BX-CTA15 (Short Throw) Throw ratio: 0.75-0.95
  • Uniformity: 85%
  • Maximum Resolution: WUXGA (1920 x 1200)
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA,WXGA, HD, WUXGA, Mac
  • Video Compatibility: SDTV / EDTV / HDTV
  • Noise Level:
    • 35 Typical (570W)
    • 33 Eco (300W)
  • Power Supply: AC input 100–240V @ 50–60 Hz,auto-switching
  • Power Consumption: W ±15% Max (Bright), 300W ±15% Max (ECO)
  • Operating Conditions: 41~104°F (5~40°C)
  • Security: Kensington® lock port, security bar
  • Remote Control: IR and wired remote
  • Optional Accessories: Universal ceiling mount, Optoma screen, wireless HDMI system, Optional lenses
  • Optional Wireless: No
  • Projection method: Front, rear, ceiling mount, tabletop
  • Wireless specification:
    • Range (Typical):
      • HDMI system: WHD200, HDCast PRO - BLACK
      • Compliance: WHD200 (Source lock on), HDCast PRO - BLACK, Chromecast™, FireTV™ Stick

NOTES:

  • 1Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • 2Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
  • 3 +/- 5% tolerance
