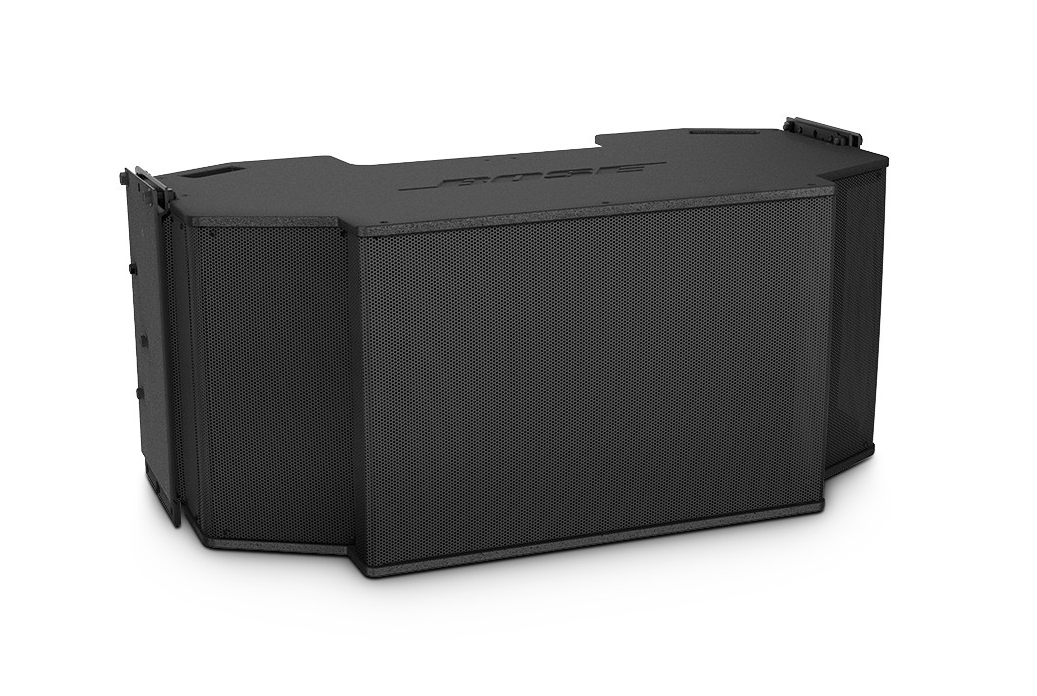

Bose RM12005
Array Module Loudspeaker, Black

OUR PART #:  RM12005-BLACK

RoomMatch® RM12005 array module delivers superb audio quality for fixed-installations in almost any room size, shape, acoustic requirement or budget.
Learn More

Call for price! Not available online.

Similar Products

RoomMatch® RM12005 array module delivers superb audio quality for fixed-installations in almost any room size, shape, acoustic requirement or budget. Overcoming the acoustic limitations of both line array and point-source conventional designs, RoomMatch® modules form a new class of curvilinear array that allows seamless audio quality, with consistent front-to-back and side-to-side tonal balance.

Bose RoomMatch RM12005 Features:

  • Concert-quality sound
  • RoomMatch waveguide technology
  • Progressive directivity arrays
  • Continuous-arc diffraction-slot (CADS) manifold
  • Bose EMB2 and LF10 drivers

Bose RoomMatch RM12005 Specifications:

  • System Performance:
    • Recommended High-Pass Filter: 50 Hz with minimum 24 dB / octave (4th order) slope
    • Nominal Coverage Pattern (H x V): 120° H x 05° V
    • Recommended Crossover Frequency: 550 Hz (acoustic, active, external DSP)
  • Transducers:
    • Driver Compliment:
      • HF: 6 x Bose EMB2 extended mid-band high frequency compression drivers (2-inch voice coil)
      • LF: 2 x Bose LF10 ultra-linear 10-inch woofers (3-inch voice coil)
  • Physical:
    • Enclosure: Baltic birch plywood, engineered plastics, and steel frame
    • Finish: Two-part spray polyurethane coating on plywood, black
    • Grille: 19-gauge (1.0 mm) perforated steel, powder-coated finish, black
    • Environmental: Indoor use only
    • Connectors: Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
    • Suspension / Mounting: Integrated side-plate rigging hardware; optional array frame accessories
    • Dimensions: 16.9" H x 39.1" W x 23.6" D (428 mm x 993 mm x 598 mm)
    • Net Weight: 123 lb (55.8 kg)
    • Shipping Weight: 180 lb (81.6 kg) - approximate with pallet
