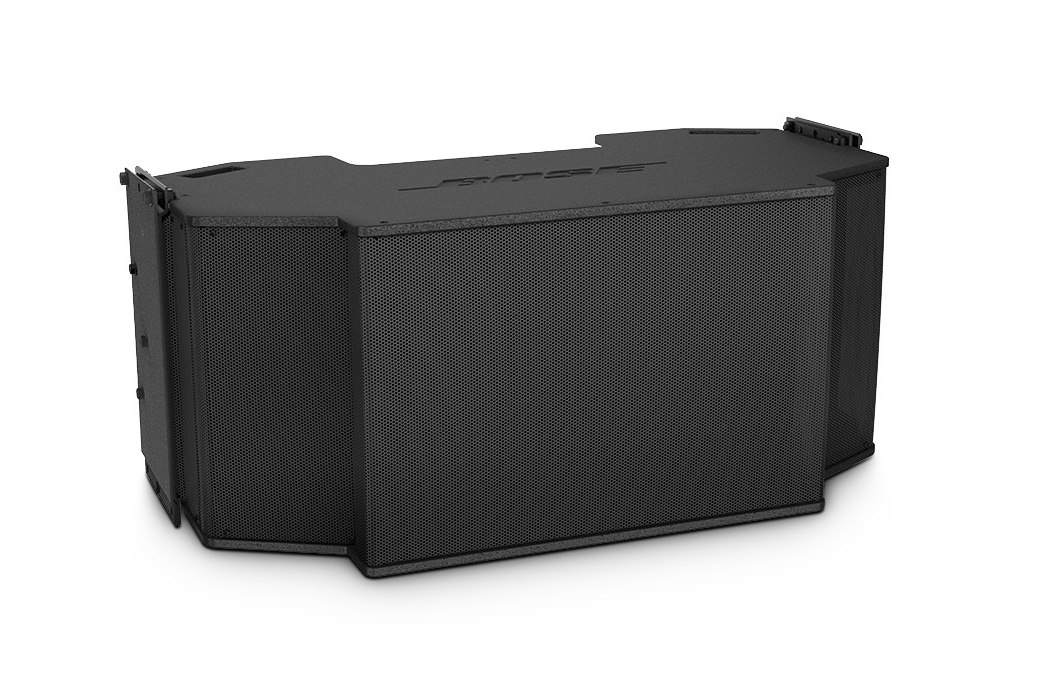

Bose RM9005
RoomMatch Symmetrical 5° Vertical Module, Black


The Bose RM9005 os a RoomMatch® DeltaQ™ array loudspeaker designed for permanent installation in the finest performing arts centers, auditoriums, sports arenas...
Learn More

Call for price! Not available online.

Similar Products

The Bose RM9005 os a RoomMatch® DeltaQ™ array loudspeaker designed for permanent installation in the finest performing arts centers, auditoriums, sports arenas, dance clubs and houses of worship, in which the large-format waveguides with choice of 42 coverage patterns can provide best-in-class coverage control, sound quality and vocal clarity even in venues with difficult acoustics.

Bose RM9005 Applications:

  • Theaters
  • Houses of worship
  • Auditoriums
  • Performing arts venues
  • Arenas

Bose RM9005 Features:

  • DeltaQ™ technology advances line-array loudspeakerdesign by allowing different “Q” (directivity) for each module in the array toimprove sound quality by better matching array coverage to audience areas anddistance, with improved phase coherency
  • 42 large-format waveguide patterns – allows designersto customize array coverage to exact venue dimensions to minimize wallreflections and deliver best-in-class sound quality even in venues withdifficult acoustics
  • Continuous-Arc Diffraction-Slot (CADS) Manifold –provides smooth high-frequency array summation and allows choice of 5vertical-coverage patterns. Select number of array modules based on soundlevel, low-frequency pattern control and budget requirements, independent oftotal array vertical coverage
  • Bose EMB2 compression drivers – deliver the vocalpower normally associated with 3-way systems with frequencies from 500 Hz to16 kHz projected from the large-format waveguides for remarkably consistentcoverage and vocal clarity
  • Integrated Rigging – allows fast installation of arrays with up to 8full-range modules at 10:1 safety factor

Bose RM9005 Specifications:

  • Frequency Response (+/-3 dB):  60 Hz - 16 kHz
  • Frequency Range (-10 dB):  55 Hz - 16 kHz
  • Nominal Coverage Pattern (H x V): 90° H x 05° V
  • Long-Term Power Handling:
    • Low Frequency: 500 W (2000 W peak)
    • High Frequency: 150 W (600 W peak)
  • Nominal Impedance:
    • Low Frequency: 4 Ohm
    • High Frequency: 8 Ohm
  • Sensitivity (SPL / 1 W @ 1 m):
    • LF No EQ: 94 dB
    • LF With EQ: 93 dB
    • HF No EQ: 108 dB SPL – 111 dB SPL
    • HF With EQ: 105 dB SPL - 108 dB SPL
  • Maximum SPL @ 1 m:
    • LF No EQ: 121 dB
    • LF With EQ: 120 dB
    • HF No EQ: 130 dB - 133 dB
    • HF With EQ: 127 dB - 130 dB SPL
  • Calculated Maximum SPL @ 1 m, peak:
    • LF No EQ: 127 dB
    • LF With EQ: 126 dB
    • HF No EQ: 136 dB SPL - 139 dB
    • HF With EQ: 133 dB – 136 dB
