Gefen Inc GefenToolBox Matrix, GTB-HD4K2K-442-BLK
Ultra HD 4:2 Matrix for HDMI, Black

OUR PART #:  GTB-HD4K2K-442-BLK

A compact and lightweight alternative to rack-mounted matrices...
Learn More
Our Price: $514.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

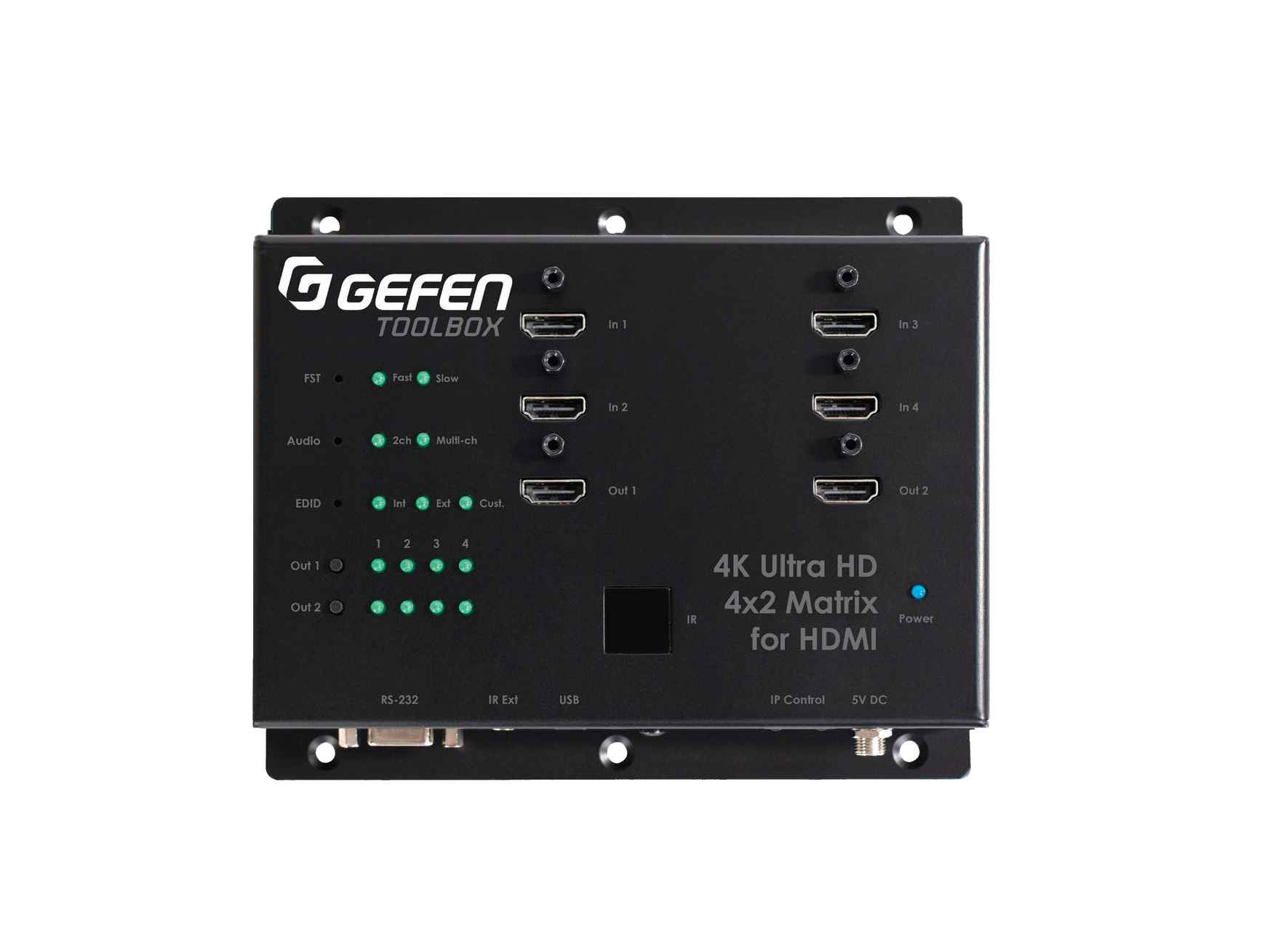

Gefen Inc GefenToolBox Matrix, GTB-HD4K2K-442-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A compact and lightweight alternative to rack-mounted matrices, Gefen's ToolBox 4x2 Matrix for HDMI 4K x 2K lets you Route four (4) Ultra Hi-Def sources to two (2) Ultra HD displays with FST, 3DTV, and 4K x 2K. It supports resolutions up to 4K (3840 x 2160 @ 60Hz 4:2:0 or 30Hz 4:4:4) and 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4). It also supports Deep Color, HDCP, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™. Each Hi-Def source can be routed to either of the connected displays via front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the onboard web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.

User Applications:

  • Home theater systems
  • Multiroom installations
  • Retail establishments
  • Schools
  • Sports bars
  • Museums
  • Hospitals
  • Hotel lobbies
  • Any other installations where Ultra High Definition HDCP-compliant AV content from up to (4) HDMI sources needs to be routed to up to (2) Ultra HD displays

Gefen ToolBox 4x2 Matrix for HDMI Includes:

  • (1) 4:2 Matrix for HDMI 4Kx2K (GTB-HD4K2K-442-BLK)
  • (1) IR Remote (RMT-8MIR)
  • (1) 5V DC Power Supply (EXT-PS526AIP-LP-6)
  • (1) Quick-Start Guide (QSG-GTB-HD4K2K-442)

Gefen ToolBox 4x2 Matrix for HDMI Features:

  • Routes four (4) Ultra Hi-Def sources to two (2) Ultra HD displays
  • Supports resolutions up to Ultra HD 4K (3840 x 2160 @ 60Hz 4:2:0 or 30Hz 4:4:4), 4K Cinema (DCI) @ 24 or 30Hz 4:4:4), and 1080p Full HD
  • HDMI 2.0 compliant
  • HDCP 1.4 compliant
  • Supports 12-bit Deep Color
  • 3DTV pass-through
  • Lip Sync pass-through
  • Push button controls for Routing, FST Modes, Audio, and EDID management
  • FST Technology speeds up HDCP authentication process
  • Advanced EDID Management for rapid integration of sources and displays
  • Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™
  • Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (sold separately)
  • RS-232 Serial interface for remote control using a computer or automation control system
  • IP control via Telnet, UDP, and the built-in web server interface
  • IR remote control
  • Field-upgradeable firmware via Mini-USB and IP ports
  • Locking Power Supply
  • Surface-mountable
  • FST:
    Fast Switching Technology (FST) is a Gefen software implementation for HDMI products. FST eliminates the lengthy HDMI authentication process, and allows connecting/disconnecting or turning ON / OFF of HDTV displays without having these activities affect other displays in the same distribution system.

Gefen ToolBox 4x2 Matrix for HDMI Specifications:

  • Maximum Pixel Clock: 300 MHz
  • HDMI Input Connectors: (4) Type A 19-pin female, locking
  • HDMI Output Connectors: (2) Type A 19-pin female, locking
  • USB Port: (1) Mini-B
  • RS-232 serial port: (1) DB-9, female
  • Ethernet (IP Control) Port: (1) RJ-45
  • FST Selector: (1) tact-type, recessed push-button
  • Audio Selector: (1) tact-type, recessed push-button
  • EDID Selector: (1) tact-type, recessed push-button
  • Routing Selectors: (2) tact-type push-buttons
  • Power Indicator: (1) LED, blue
  • FST Indicators: (2) LED, green
  • Audio Indicators: (2) LED, green
  • EDID Indicators: (3) LED, green
  • Routing Indicators: (8) LED, green
  • IR Sensor: (1), on front panel
  • IR Extender Port: (1) 3.5mm mini-stereo jack
  • DC Power Connector: (1) Locking type
  • Power Supply: 5V DC
  • Power Consumption: 13 Watts (max.)
  • Operating Temperature: +32 to 104 °F (0 to +40 °C)
  • Dimensions (W x H x D): 6.9" x 5.8" x 1.0" (175mm x 147mm x 26mm)
  • Shipping Weight: 5 lbs (2.3 kg)
