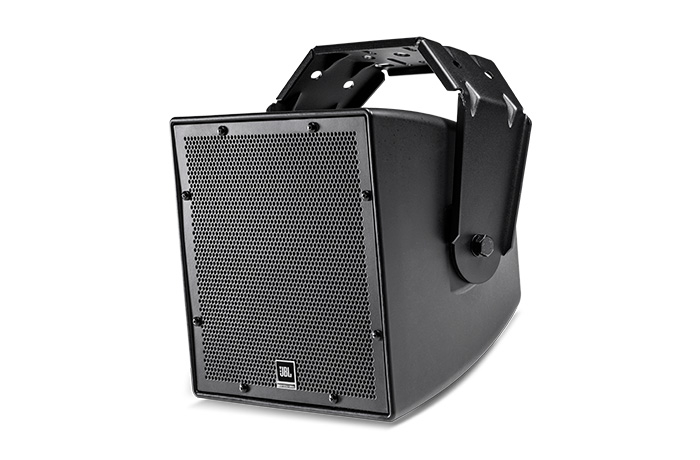

All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF , Black


The JBL AWC62 is a compact, coaxial-driver, 2-way...
Learn More
Our Price: $304.00
List Price: $380.00
You save 20%!
Write the first review.
In Stock

Related Products

The JBL AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL AWC62 Features:

  • Highly weather-resistant IP56 rating
  • Consistent 110° x 110° broadband pattern control
  • Components:
    • 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil
    • 25 mm (1 in) exit compression driver
  • Extraordinary clarity for speech, with extendedfrequency response for music
  • Advanced high-slope crossover network for constantcoverage and smooth, natural midrange
  • 175 Watt power handling (average continuous pinknoise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 70 Hz – 18 kHz frequency response
  • 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8 Ohm low-impedance

JBL AWC62 Specifications:

  • Frequency Range (-10 dB): 70 Hz – 18 kHz
  • Frequency Response (±3 dB): 100 Hz – 16 kHz
  • Coverage Pattern: 110º x 110º
  • Directivity Factor: 7.2 (1 k – 16 kHz)
  • Directivity Index (DI): 7.9 dB (1 k – 16 kHz)
  • Sensitivity (2.83V @ 1m): 92 dB (Ave. 100 Hz – 18 kHz)
  • Maximum SPL
    • Direct 8O: 114 dB (peaks of 120 dB)
    • 120 W Tap: 112 dB
  • Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF
  • Nominal Impedance: 8 ohms
  • Transformer Taps:
    • 70V: 120W, 60W, 30W, 15W
    • 100V: 120W, 60W, 30W
  • Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.
  • High Frequency Driver: 25 mm (1 in) diaphragm and voicecoil diameter
  • HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection
  • Enclosure: ABS with Glass enclosure
  • Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
  • Input Connection: CE-compliant covered barrier stripterminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal withround- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0mm (0.36”).
  • Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
  • Dimensions:
    • 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet
    • 288 mm (11.4 in) including gland nut
    • 309 mm (12.2 in) including bracket extending to back
  • Colors: Available in gray (similar to Pantone 420C) and black (-BK)
  • Net Weight: 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket
  • Shipping Weight: 8.8 kg (19.5 lb)
  • Included Accessories: U-bracket, matches loudspeaker color (gray orblack), zinc-rich extra thick powder coated, steel.
