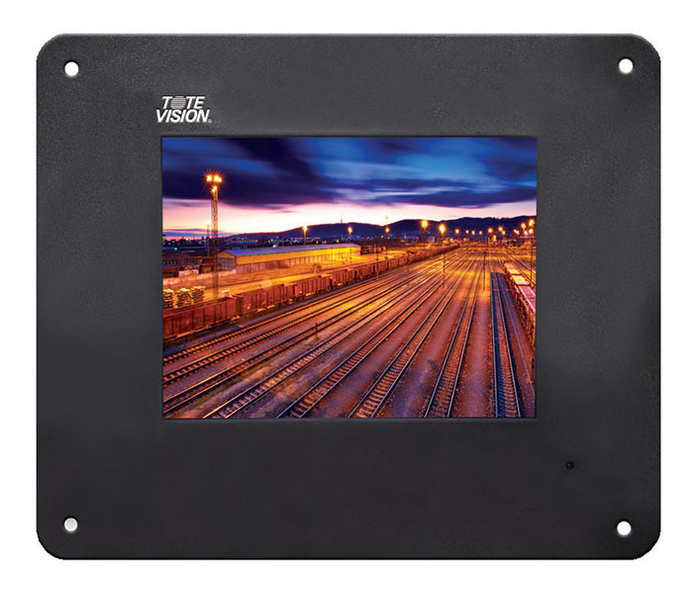

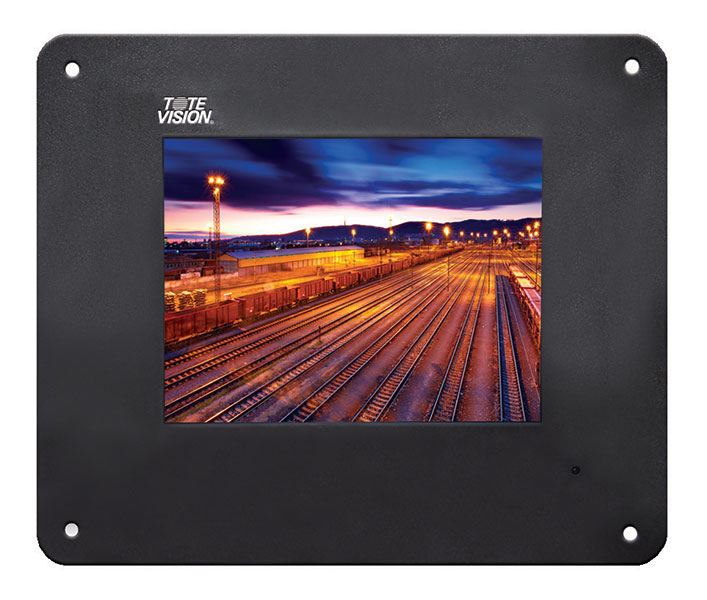

ToteVision LED-566HDMLX
5.6” Flush Mount Monitor with No Front Controls

OUR PART #:  LED-566HDMLX

The ToteVision LED-566HDMLX flush mount, LED-backlight, LCD monitor with no front controls...
Learn More
Our Price: $349.00
List Price: $465.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ToteVision LED-566HDMLX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ToteVision LED-566HDMLX flush mount, LED-backlight, LCD monitor with no front controls, supports both analog and digital signals and can display up to high definition (1080i/p). This latest generation model is ideal for any small screen, high quality video installations.

ToteVision LED-566HDMLX Features:

  • LED backlight: brighter picture using less power
  • Switchable 4:3 and 16:9 aspect ratios
  • Multi-featured: Underscan, Blue Gun, RGB adjustable
  • Monochrome and color peaking modes for fine control optimizing focus
  • DSLR Scaling when connected to a still photography camera
  • On-board memory retains last input source when power is off
  • Sturdy metal housing
  • Automatic scaling of signal resolution
  • Excellent electromagnetic shielding
  • Front controls allow the user to make adjustments via the On-Screen Display (OSD)

ToteVision LED-566HDMLX Specifications:

  • Mount: Flush Mount
  • Display: 5.6? TFT LCD
  • Resolution: 640 x 480 (displays 480i/p ~ 1080i/p)
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 4.4” x 3.3” (112.9 x 84.7mm)
  • Back Light: LED (20K)
  • HD Compatible: Yes
  • Anti Glare Coating: Yes
  • Brightness: 350 cd/m² (Nit)
  • Contrast: 500:1
  • Dot Pitch: 0.0588mm x 0.1764mm
  • Color Depth: 5600K ~ 6500K (User Adjustable)
  • Response Time: 10/15ms (Rising/Falling)
  • Viewing Angle: 70°/70°/50°/70°
  • HDMI: x1 Input
  • Composite: x1 BNC Input; x1 BNC Ouput
  • Power: x1 2.1mm DC Input
  • Operating Temp: -4 ~ 140°F (-20 ~ 60°C)
  • Humidity: 20% ~ 80%
  • Power Requirements: 12VDC; 630mA
  • Power Consumption: 5 Watts (Max)
  • Dimensions: 6.85” x 6.89” x 0.89” (174 x 175 x 22.5mm)
  • Product Weight:
    • Net: 0.88 lbs (0.4 kg)
    • Gross: 1.96 lbs (0.88 kg)
  • Case: Durable Metal
  • Additional Information:
    • Electromagnetic Shielding
    • Auto Power On function
    • Mirror Image function
    • Automatic Signal Resolution Scaling
    • Auto-sensing NTSC/PAL
