Panasonic ETD75LE95
Ultra Short-Throw Lens For 3-Chip DLP Projectors

OUR PART #:  ETD75LE95

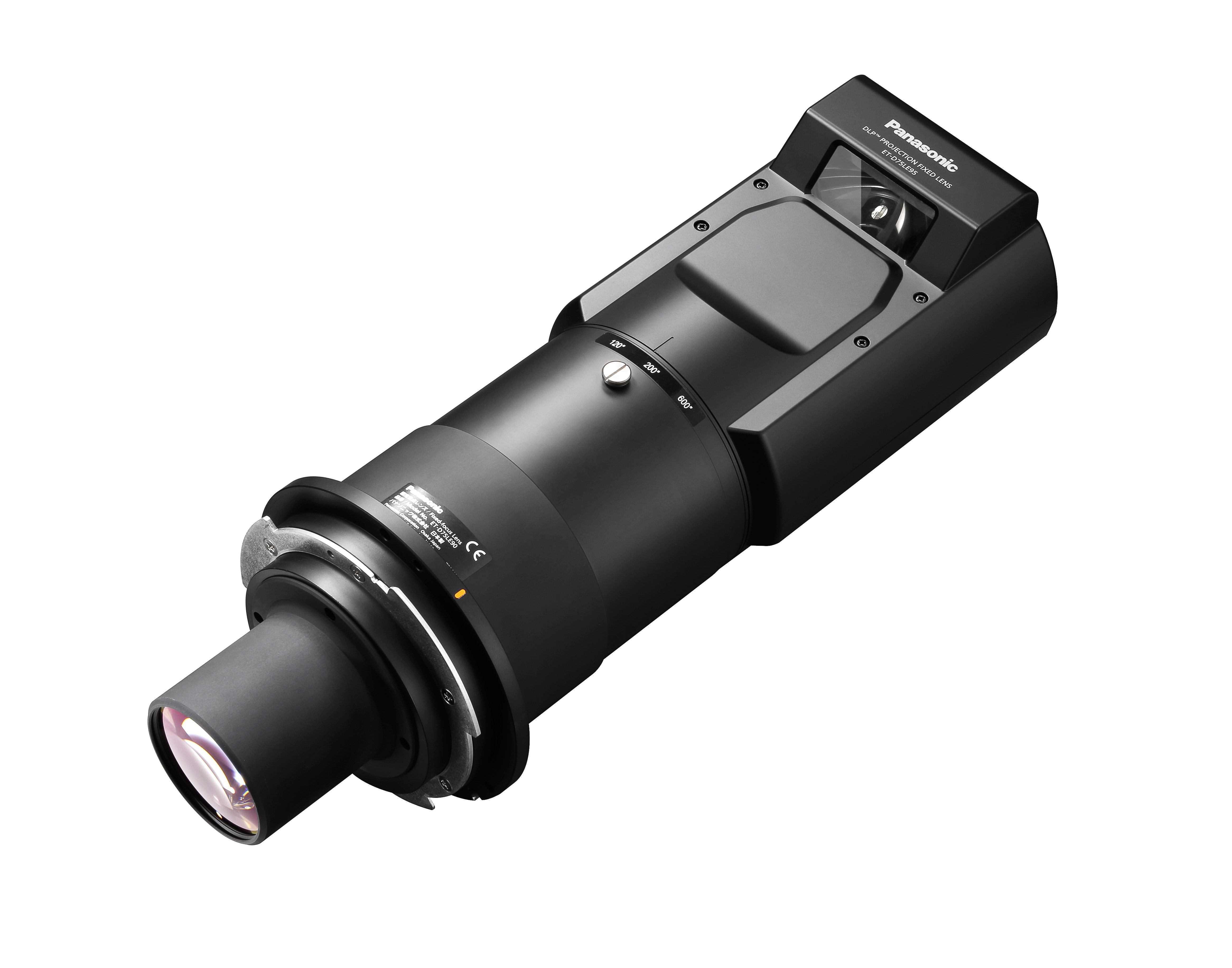

The Panasonic ET-D75LE95 Ultra Short Throw Lens is compatible with 3-Chip DLP™ Panasonic projectors and enables large-screen image projection from very short distances.
Learn More

Call for price! Not available online.
List Price: $20,199.00

Similar Products

The Panasonic ET-D75LE95 Ultra Short Throw Lens is compatible with 3-Chip DLP™ Panasonic projectors and enables large-screen image projection from very short distances. By mounting an ET-D75LE95 Ultra Short Throw lens onto a Panasonic 3-Chip DLP™ projector, throw distances are reduced by as much as 60 % (approximately) in comparison with the ET-D75LE50 Short Throw Lens. The huge space lets users exploit the high brightness and picture quality offered by 3-Chip DLP™ Panasonic projectors in spaces where limitations previously existed.

Supported projectors:

  • PT-RQ32K
  • PT-RZ31K/RS30K
  • PT-RQ13K
  • RZ12K/RS11K
  • PT-DZ21K/DZ21K2/DS20K/DS20K2/DW17K/DW17K2/DZ16K/DZ16K2
  • PT-DZ13K/DS12K/DW11K/DZ10K/DZ8700/DZ110K/DS8500/DS1100K/DW8300/DW90K

Panasonic ET-D75LE95 Specifications:

  • Model: ET-D75LE95
  • F value: 2.5
  • Focal length (f:): 7.5 mm
  • Throw ratio:
    • WUXGA/Full HD: Approx. 0.36:1
    • SXGA+: Approx. 0.39:1
    • WXGA: Approx. 0.40:1
  • Lens shift:



Vertical Shift

Horizontal Shift

PT-RQ13K

up: 10%, down: 5%

left: 21%, right: 21%

PT-RZ31K/RZ12K/DZ21K/DZ21K2/DZ13K/ DZ10K

up: 5%, down: 7%

left: 12%, right: 12%

PT-DZ16K/DZ16K2

up: 13%, down: 8%

left: 19%, right: 19%

PT-RS30K/RS11K/DS20K/DS20K2/DS12K

up: 7%, down: 7%

left: 8%, right: 8%

PT-DW17K/DW17K2/DW11K

up: 18%, down: 0%

left: 13%, right: 27%

  • Dimensions: 18 1/4" Ă— ø 6 1/16" (463.5 mm Ă— ø154 mm)
  • Weight: Approx. 12.6 lbs (5.7 kg)
