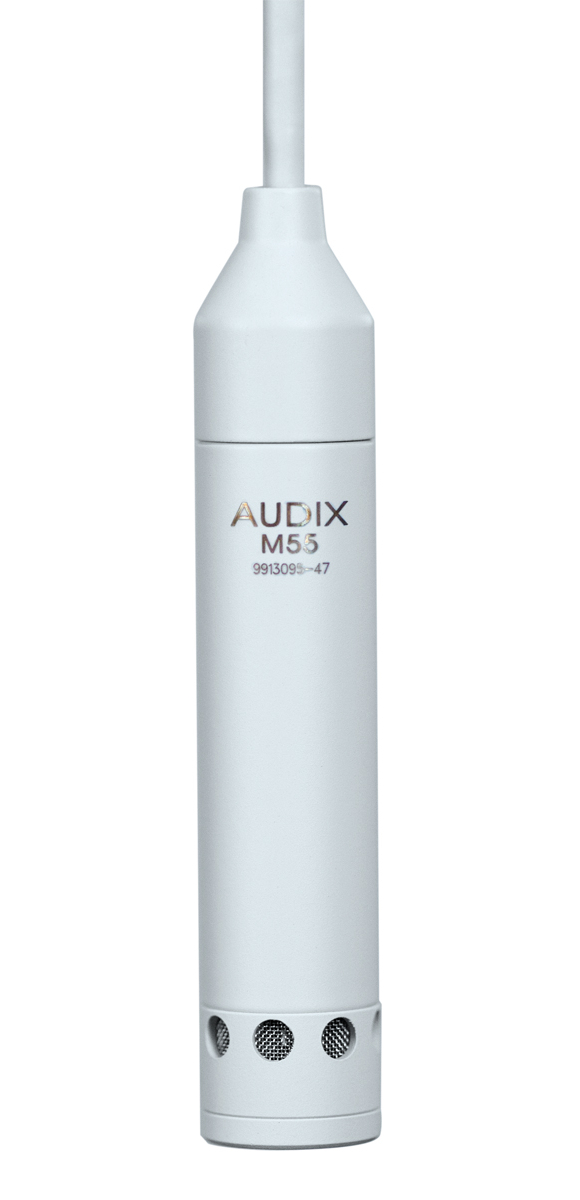

Audix M55WO Omnidirectional Hanging Ceiling Microphone, White

High-quality sound and a design that's easy to install.

The M55 hanging ceiling microphone system is designed for applications where aesthetics, sound quality, and ease of installation are critical. The primary applications for the ceiling mounted M55 include Video & Teleconference (VTC), distance learning, hospital rooms, surveillance, and ambient room miking. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices. Installing the M55 hanging microphone requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55's mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles. An optional aiming clip (MCHANGER) easily makes any additional angular adjustments. The cable assembly, with a terminal block connector, is neatly housed in an airtight, plenum-rated junction box. A wire safety cable provides additional seismic restraint.

Includes

• M55WO Ceiling Microphone
• Terminal Block Connector, 4-ft Integrated Microphone Cable
• Mating Terminal Connector
• Metal Plenum Junction Box

Features

• For VTC, distance learning, medical procedures, surveillance & more
• Fingertip height adjustment and rotation control
• Low-noise pre-amp circuitry
• Optimized for voice recognition
• 60Hz - 10kHz frequency response

Specifications

• Transducer Type: Condenser
• Frequency Response: 60 Hz – 10 kHz
• Polar Pattern: Omnidirectional
• Output Impedance: 150 ohms
• Sensitivity: 38 mV (C), 32 mV (HC), 40mV (O), 60 mV (S) / Pa @ 1k
• Equivalent Noise Level: 22 dB (A-weighted)
• Signal to Noise Ratio: 72 dB
• Maximum SPL: ≥130 dB
• Dynamic Range: 108 dB
• Power Requirements: 18 – 52 V phantom
• Connector: Terminal Block Connector
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish: Aluminum & Zinc Alloy / White Finish
• Weight: 70 g / 2.4 oz (Mic & Cable) 499 g / 17.6 oz (Junction Box & Safety Cable)
• Length: 54 mm / 2.1 in
