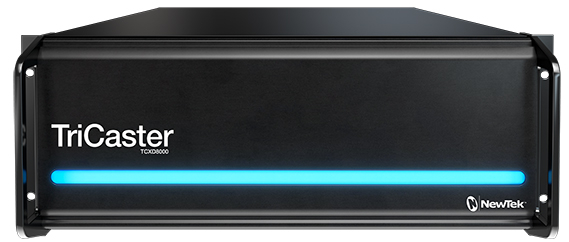

NewTek TC8000ALA
TriCaster 8000 without Control Surface

OUR PART #:  TC8000ALA

The NewTek TC8000ALA TriCaster 8000 is the live video system equipped to handle anything: big live shows, incredibly sophisticated Web programs...
Learn More

Call for price! Not available online.
List Price: $24,995.00

Similar Products

The NewTek TC8000ALA TriCaster 8000 is the live video system equipped to handle anything: big live shows, incredibly sophisticated Web programs, and branded content for cross-channel delivery and multi-screen experiences. All in a turnkey solution.

NewTek TriCaster 8000 Features:

  • 8-M/E, 24-channel video switcher with integrated audio mixer, media players, titles, graphics, and DVE effects
  • Router-extensible for virtually unlimited scalability
  • Robust I/O connectivity and networking
  • Flexible video layering and compositing

NewTek Tricaster 8000 Specifications:

  • Switcher Channels: 24 - 10 external, 6 internal, 8 M/E buses
  • Video Input: 8 simultaneous live video sources, in any combination of supported connection types, resolutions and frame rates, with third-party video router support
  • Audio Inputs:
    • 8 x SDI embedded
    • 8 x AES3/EBU
    • 8 x 2 Balanced XLR (Mic/Line)
    • Phantom Power Support
  • Audio Outputs:
    • 3 x SDI embedded
    • 2 x AES3/EBU
    • 4 x Balanced XLR
    • 4 x Balanced XLR (AUX)
    • 1 x Stereo 1/4" (phones)
  • Audio Mixing: Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones, with 4 fully independent stereo output mixes
    • Pan control, solo auditioning, seven-band equalizer and stereo compressor/limiter per input and output, with per-input audio delay control
    • Multi-bus routing of audio source channels to any combination of outputs, with independent level control over channels 1/2 and 3/4 for quad sources
    • AFV system enabling audio to follow multiple video sources, with support for unlimited audio grouping combinations
    • Digital audio inputs equipped with audio time-base synchronizers
    • Supports hardware control via Avid┬« Artist Mix audio control surface (sold separately)
  • System Physical: 4RU chassis with 550W redundant, removable PSU and multi-tiered hardware and software fail-safe
    • Dimensions: 19.0" x 7.0" x 20.5" (48.3 x 17.8 x 52.0 cm)
    • Weight: 44 lbs (20 kg)
