Blackmagic Design CONVNTRM/DB/SDIQD

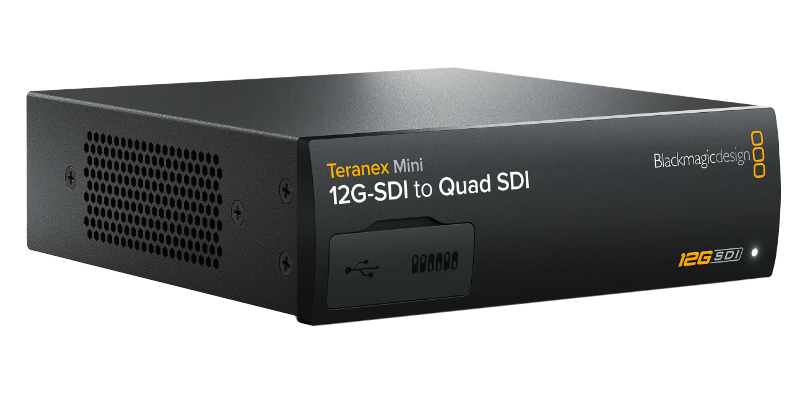

Teranex Mini - 12G-SDI to Quad SDI Converter


Our Price: $495.00
Write the first review.
Blackmagic Design CONVNTRM/DB/SDIQD
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Blackmagic Design CONVNTRM/DB/SDIQD 12G-SDI to Quad SDI Teranex Mini Converter converts 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.

Blackmagic Design Teranex Mini Converter Includes:

  • Teranex Mini - 12G-SDI to Quad SDI
  • SD card with software and manual

Blackmagic Design Teranex Mini Converter Features:

  • Advanced 12G-SDI
  • Smart thermal design
  • Teranex mini smart panel
  • True XLR audio, ethernet and built in IEC AC power connectors
  • Digital and analog audio
  • HDMI instant lock
  • Local or remote control

Blackmagic Design Teranex Mini Converter Specifications:

  • Connections:
    • SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
    • SDI Video Output: 4 x 3G-SDI outputs
    • Multi Rate Support: Automatic switching between SD/HD/2K and 4K
    • Updates and Configuration: USB or Ethernet
    • Re-Clocking: Yes
  • Standards:
    • SD Format Support: 525i29.97 NTSC, 625i25 PAL
    • HD Format Support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60
    • 2K Format Support:
      • 1080p23.98, 24, 25, 30
      • 1080PsF23.98, 24, 25
    • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60
    • 4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
    • SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit\
    • SDI Color Space: YUV & RGB
  • Software:
    • Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet
    • Internal Software Upgrade: Via included updater application
  • Operating Systems: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later, Windows 8.1 or Windows 10
  • Settings Control:
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
  • Power Requirements:
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC
  • Input:
    • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
    • Power Consumption: 16 Watts
    • Operational Voltage Range: 90 - 240V A
  • Physical Specifications:

  • Environmental Specifications:
    • Operating Temperature: 32° to 104°F (0°to 40°C)
    • Storage Temperature: -4° to 140°F (-20°to 60°C)
    • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 3 year Limited Manufacturer’s Warranty
