Atlona Technologies 4K-HDVS-WP-EXT
4K/UHD HDBaseT TX/RX, Two-Input Wall Plate Switcher


The Atlona 4K-HDVS-WP-EXT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K/UHD extension...
Learn More

Call for price! Not available online.

Related Products

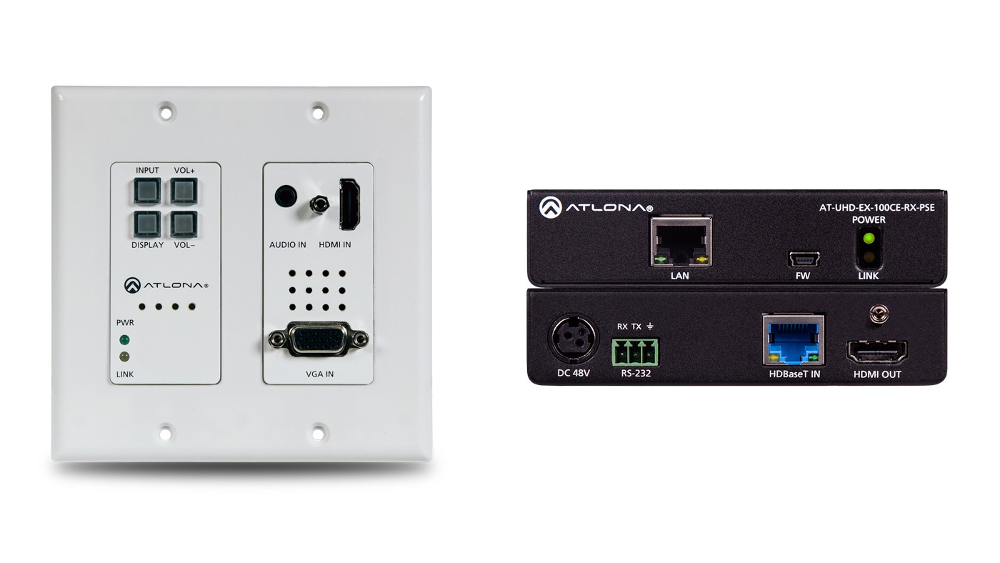

The Atlona 4K-HDVS-WP-EXT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K/UHD extension, automatic HDMI and VGA input switching, and automatic display control. It includes the AT-HDVS-200-TX-WP two-input HDBaseT wall plate switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver.

Atlona Technologies 4K-HDVS-WP-EXT Features:

  • US, 2-gang Decora®-style wall plate
  • 2×1 HDBaseT™ switcher with HDMI and VGA inputs
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 1.4 compliant
  • HDBaseT extension for AV, control, and Ethernet up to 330 feet (100 meters)
  • Automatic display control using IP, RS-232, or CEC
  • Automatic input selection using hot plug detect and video detection technology
  • Transmitter powered by receiver via PoE (Power over Ethernet)

Atlona Technologies 4K-HDVS-WP-EXT Specifications:

  • Video Resolutions:
    • Video: 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz* (UHD), 2048x1080p,
      1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p,
      576i, 480p, 480i
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900,
      1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600,
      640x480 (VGA input limited to a max of 1920x1200)
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Analog IN: PCM 2Ch
    • HDMI IN / HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 230 ft (70M)
    • CAT5e/6 @ 1080p: up to 330 ft (100M)
    • CAT6a/7 @ 4K: up to 330 ft (100M)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: 1.4
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 18W
    • Supply (100CE-RX-PSE):
      • Input: AC100~240V 50/60Hz
      • Output: DC48V 0.83A
  • Dimension:
    • Wall (HDVS-200-TX-WP): 2 gang (US)
    • HxWxD (100CE-RX-PSE): 0.98" x 4.29" x 5.00" (25 x 109 x 127 mm)
  • Weight:
    • HDVS-200-TX-WP: 0.5 lbs (0.23 kg)
    • 100CE-RX-PSE: 0.86 lbs (0.39 kg)
  • Certification: CE, FCC
