DPA Microphones FIO66F10-M2
66 Dual-Ear Omni Headset Mic with Hardwired TA4F-Beige

OUR PART #:  FIO66F10-M2

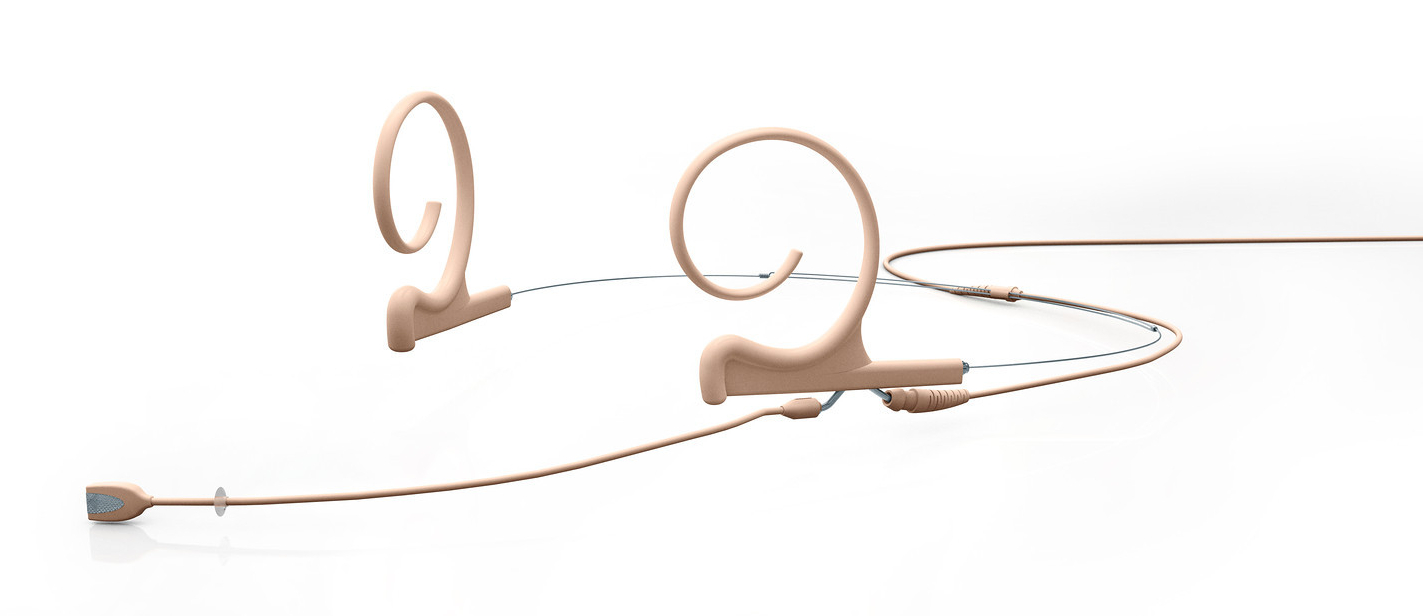

The DPA Microphones FIO66F10-M2 is an omnidirectional headset microphone with TA4F mini XLR termination, 90 mm boom length, and is dual-ear worn.
Learn More
Our Price: $799.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIO66F10-M2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones FIO66F10-M2 is an omnidirectional headset microphone with TA4F mini XLR termination, 90 mm boom length, and is dual-ear worn.

The d:fineā„¢ 66 Headset Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with the lightweight and flexible d:fineā„¢ Headset system. This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom. Like all of the microphones in the range, the d:fineā„¢ 66 Headset Microphone offers accurate, natural voice intelligibility and very high SPL capabilities. Users can both speak and sing into the mic with no hint of distortion. The microphone capsule is also optimized for low distortion as well as humidity resistance. The d:fineā„¢ 66 Omnidirectional Headset Microphone is available with single- or dual-ear mounts. Single-ear mount variants are the quickest to put on and often the best choice when miking needs to be fast and easy. Dual-ear mount variants sit more securely around the head and are ideal for active performance situations. The d:fineā„¢ 66 has been ergonomically designed to fit comfortably and easily around the head. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be easily used on either the left or right ear.

DPA Microphones FIO66F10-M2 Features:

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to both the left and right
  • Minimal visual impact
  • Resistant to humidity
  • Modular adapter system fits most professional wireless systems

DPA Microphones FIO66F10-M2 Specifications:

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, +/- 2 dB: Soft boost grid: 20 Hz -20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dBboost at 12 kHz
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re.20 ĀµPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB(max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dBSPL): Typ. 68 dB(A)
  • Total harmonic distortion (THD): < 1% THD up to123 dB SPL peak, < 1% THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 97 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: From MicroDot: 30 - 40 O. From DAD6001: 100 Ohm
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
  • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
  • Power supply (for full performance): Min. 5 V to max.50 V through DPA adapter for wireless systems
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Color: Beige
  • Microphone diameter: 0.21" (5.4 mm)
  • Microphone length: 0.5" (12.7 mm)
  • Cable length: 4.1 ft (1.25 m)
  • Cable diameter: 0.06" (1.6 mm)
  • Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
  • Temperature range: -40Ā°F to 113Ā°F (-40Ā°C to 45Ā°C)
  • Relative humidity (RH): Up to 90%
