Elation Pro Lighting RDMX6S
6-WAY RDM/DMX Data Splitter


The Elation Pro Lighting RDMX6S™ is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5pin DMX input...
Learn More
Our Price: $400.00
List Price: $500.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Elation Pro Lighting RDMX6S
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

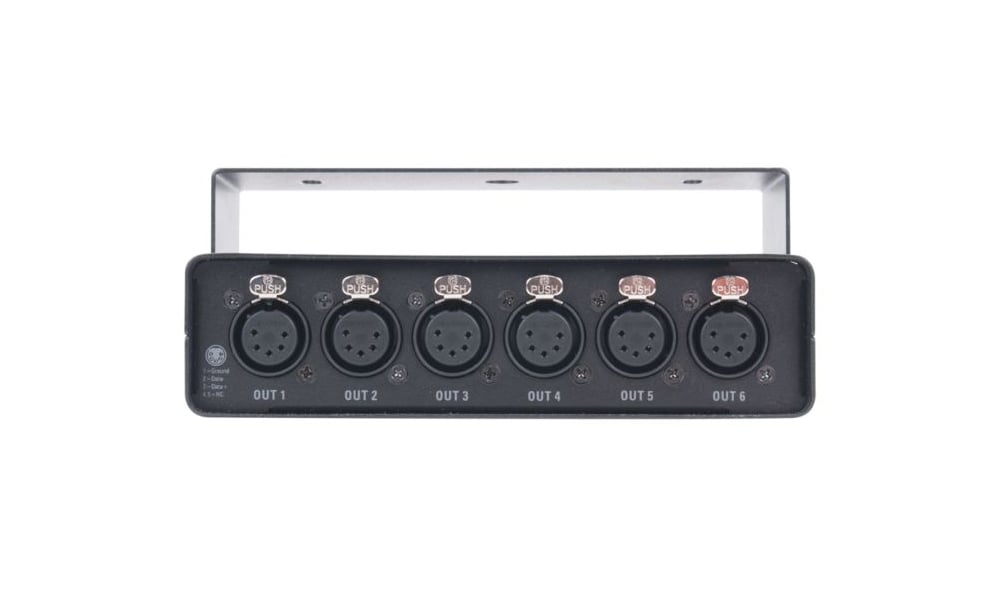

The Elation Pro Lighting RDMX6S™ is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5pin DMX input, a 5pin DMX loop thru output with built-in termination, and (6) opto-isolated 5pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v), and includes a single unit mounting bracket for truss/clamp installation. Optional single and dual unit rack mount kits are available.

Elation Pro Lighting RDMX6S Features:

  • RDM E1.20 Compliant
  • 5pin DMX Loop Thru Output with Built-In Termination
  • Six Opto-Isolated 5pin DMX Outputs
  • powerCON In
  • Universal Multi-Voltage Auto Switching Power Supply
  • Mounting Bracket for Truss/Clamp Installation Included

Elation Pro Lighting RDMX6S Specifications:

  • Control/Connections:
    • 5pin DMX Input
    • 5pin DMX Lopp Thru Output w/Built-In Termination
    • Six 5pin Opto-Isolated DMX Outputs
    • powerCON In
  • Size/Weight:
    • Length: 6.8” (173mm)
    • Width: 6.7” (170mm)
    • Vertical Height: 2.9” (74mm) (with mounting bracket)
    • Weight: 2.1 lbs. (1.0kg)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 3W Max Power Consumption
    • 14°F (-10°C) to 113°F (45°C)
  • Approvals/Ratings: CE | RoHs
