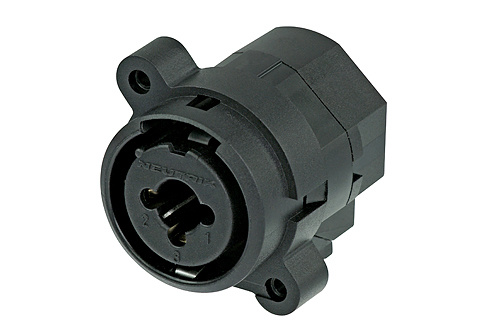

Neutrik NCJ5FI-S-0 XLRF 1/4" TS Combo Jack W/O Switching Contact

Neutrik's NCJ5FI-S-0 is an XLR/jack hybrid chassis connector combining a 3-pin XLR receptacle and a 1/4" jack. This connector does not include a switching contact, but feature solder cups for wire termination and a retention spring.

Neutrik NCJ5FI-S-0 Features:

• Combined XLR receptacle and 1/4" phone jack
• Balanced or line inputs in one XLR shell
• Saves rack space by combining two connectors in one housing
• Very low conductor capacitance, therefore suitable for digital audio

Neutrik NCJ5FI-S-0 Specifications:

• Electrical Specifications:
  • Contact resistance (XLR): < 10 mOhms
  • Contact Resistance (Jack): < 20 mOhms
  • Rated current: 7.5 A
  • Rated voltage: 50 V
  • Insulation resistance: > 2 GOhms (initial)
  • Dielectric strength: 1500 Vdc
• Mechanical Specifications:
  • Insertion force: = 25 N
  • Withdrawal force: = 25 N
  • Lifetime: > 1000 mating cycles
  • Locking force: > 20 N separating force
  • Panel thickness: max. 0.27" (7 mm)
  • Mounting direction: Rear mounting
• Material Specifications:
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6.6 30% GR)
  • Locking element: Steel Ck67
