Product Overview

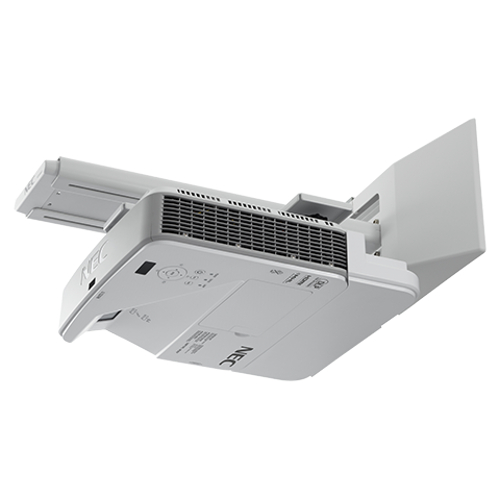

The NEC Visual Systems U321Hi-WK interactive projector brings collaboration to both classrooms and conference rooms alike. Together with a PC or Mac, the teaching tool will increase students’ attention and interaction within the classroom, increasing their retention of subject matter. This bundle includes the 3200-lumen U321H ultra short throw projector, NP04Wi interactive module and dual stylus pens and NP04WK1 wall mount kit. The U321Hi-WK delivers an extremely short throw distance, the ability to use multiple pens to bring interactivety to a new level. The U321H is able to mount on the wall directly above the screen using the NP04WK1. Features of the projector include a powerful 8W speaker, closed captioning, RJ-45, dual HDMI and VGA connectors.
NEC Visual Systems U321Hi-WK Includes:
- Remote control
- Batteries
- RGB cable
- User's Manual
- Product Registration Card
NEC Visual Systems U321Hi-WK Features:
- Microphone Input
- Wireless LAN (Optional)
- USB Viewer
- 6000 hour Filter Life
- Auto power on
- ECO Mode technology
- Closed captioning
- Variable audio out
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
- Wireless Image Utility
NEC Visual Systems U321Hi-WK Specifications:
- Optical:
- Display Technology: DLP (0.65" DMD)
- Light Output(Lumens): 3200
- Resolution:
- Native: 1080p 1920 x 1080
- Maximum: 1080p 1920 x 1080
- Contrast Ratio (up to): 10,000:1
- Lamp Type: 260W AC
- Lamp Life (up to): 3000 hours normal / 4000 hours eco
- Screen Size (diagonal): 85" -100" (2159 to 2540 mm)
- Throw Ratio: 0.25 to 1
- Projection Distance: 1.47 to 1.83 ft. (0.474 to 0.558m)
- Projector Angle: 57.0°
- Lens:
- Zoom: 1
- Focus: Manual
- F number, fnumber: F=2.4, f=3.72mm
- Keystone Correction: +/- 5° vertical
- Signal Compatibility/Connectivity:
- Synchronization Range:
- Horizontal (Analog/Digital): 15-100 kHz
- Vertical (Analog/Digital): 50-120 Hz
- Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
- SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- PC Signal Compatibility: VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
- Macintosh Compatibility: Yes
- Input/Output Terminals:
- RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E adapter
- RGB2(digital): HDMI/HML w/HDCP
- RGB3(digital): HDMI w/HDCP
- Video 1: RCA
- Audio 1: 1/8 in. stereo
- Audio 2: L/R RCA (shared by video sources)
- Monitor out: VGA 15-pin D-sub
- Audio out: Yes (variable)
- Audio: 8W speaker
- External Control: RS-232, IR, Wired LAN, DDC/CI, USB
- Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
- Networking: RJ-45 Monitoring
- Electrical:
- Power Requirements: 100-240V AC, 50/60 Hz
- Input Current: 3.5A/1.65A
- Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 323W / 272W / 3W / 0.18W
- Mechanical:
- Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
- Dimensions (WxDxH): 15.0" x 12.3" x 4.3" (382 x 312 x 108 mm)
- Net Weight: 10.4 lbs. (4.7 kg)
- Fan Noise: 34 dB normal / 29 dB eco
- Regulations: USA UL(UL60950-1/IEC60825-1/IEC62471) FCC Part 15 Class B, C-UL(CSA60950-1/IEC60825-1/IEC62471) ICES-003 Class B
- Environmental:
- Operating Temperature: 41°-104°F (5°-40°C)
- Humidity: 20-80% non-condensing
- Storage: -4°-140°F (-20°-60°C)
- Limited Warranty: 2 years. Lamp warranty is 1 year or 500 hours, whichever comes first.
