Atlona Technologies AT-UHD-EX-70C-RX
4K/UHD HDMI Over HDBaseT Receiver

OUR PART #:  AT-UHD-EX-70C-RX

The Atlona AT-UHD-EX-70C-RX is an HDBaseT™ receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability.
Learn More

Call for price! Not available online.

Similar Products

The Atlona AT-UHD-EX-70C-RX is an HDBaseT™ receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The receiver works with the PRO3-UHD Matrix Switcher Series to provide bidirectional extension of both 12 volt IR and RS-232 commands. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management.  Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

Atlona AT-UHD-EX-70C-RX Includes:

  • User guide
  • Mounting brackets
  • IR emitter P/N AT-IR-CS-TX

Atlona AT-UHD-EX-70C-RX Features:

  • 4K/UHD capability:
    • Compatible with Ultra High Definition sources and displays
    • Full support of 4K/UHD streaming services and playback devices
  • HDCP 2.2 compliant:
    • Adheres to latest specification for High-bandwidth Digital Content Protection
    • Allows protected content stream to pass between devices
  • Remote-powered receiver:
    • Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
    • Saves time and integration costs
  • Bidirectional extension of both RS-232 and IR control commands:
    • Control signals travel over HDBaseT link for maximum control system flexibility
    • Eliminates multiple cable runs between source, control system, and display
  • Long distance HDMI extension:
    • Receives HDMI signals up to 230 ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Flexible Bidirectional IR control capabilities:
    • IR Input designed to work with 12V IR receivers for source control
    • Saves control systems costs

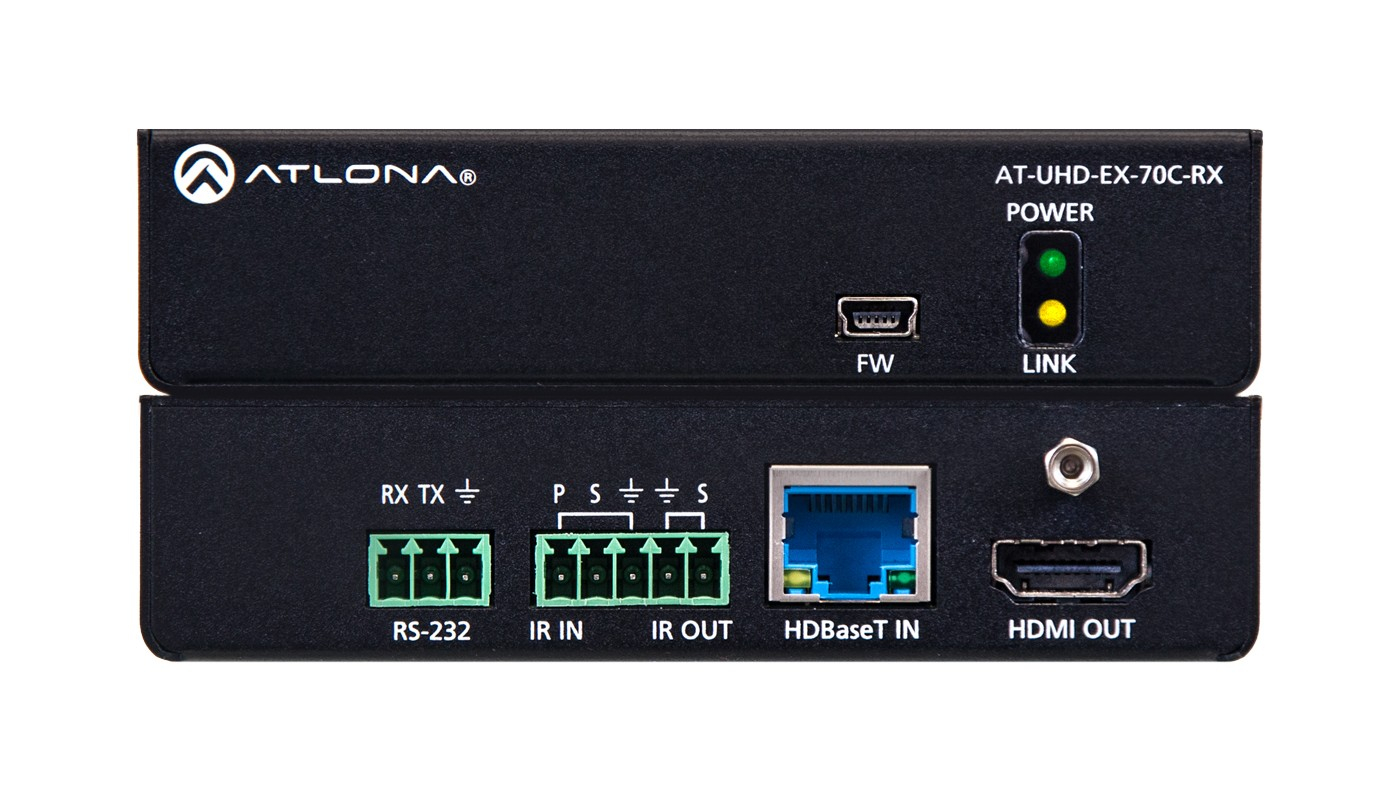

  • Rear panel I/O connectors:
    • Placement of ports on rear panel simplifies wire management
    • Saves installation time and eliminates clutter
  • Multi-channel audio compliant:
    • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, DTS:X™
    • Allows any multi-channel audio stream to be used within a professional audio system
  • Field updatable firmware:
    • Front panel USB port provides an easy means for kit upgrades
    • Ensures long term system return on investment
  • Front panel Power and Link status LEDs:
    • LED indicators provide power and HDBaseT link status information
    • Provides easy setup and troubleshooting
  • Low-profile, 1 inch (25 mm) high quarter rack-width enclosure:
    • Easy installation into confined spaces behind displays and above projectors
    • Keeps devices out-of-sight when placed in public spaces
  • Award-winning 10 year limited product warranty:
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence

Atlona AT-UHD-EX-70C-RX Specifications:

  • Resolution:
    • Video: 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Colorspace: YCbCr, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 115 feet (35 meters)
    • CAT6a/7 @ 4K: up to 130 feet (40 meters)
    • CAT5e/6 @ 1080p: up to 197 feet (60 meters)
    • CAT6a/7 @ 1080p: up to 230 feet (70 meters)
    • HDMI IN/OUT @ 4K: up to 15 feet (5 meters)
    • HDMI IN/OUT @ 1080p: up to 30 feet (10 meters)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Pass through
    • HDCP: Supports up to 2.2
  • Connector:
    • Firmware: Mini-B USB
    • HDBaseT: RJ45 (8P8C)
    • HDMI: Type A
    • IR: 5-pin captive screw
    • RS-232: 3-pin captive screw
    • Power: PoE (Power over Ethernet) from TX
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 10.89W
    • Supply:
      • Input: AC100~240V 50/60Hz
      • Output: DC 48V/0.83A
  • Dimension (HxWxD): 0.98" x 4.29" x 3.50" (25 x 109 x 89 mm)
    • w/ears: 1.06" x 4.69" x 3.50" (27 x 119 x 89 mm)
  • Weight: 0.73lbs (0.33kg)
  • Certification:
    • Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
    • Product: CE, FCC
