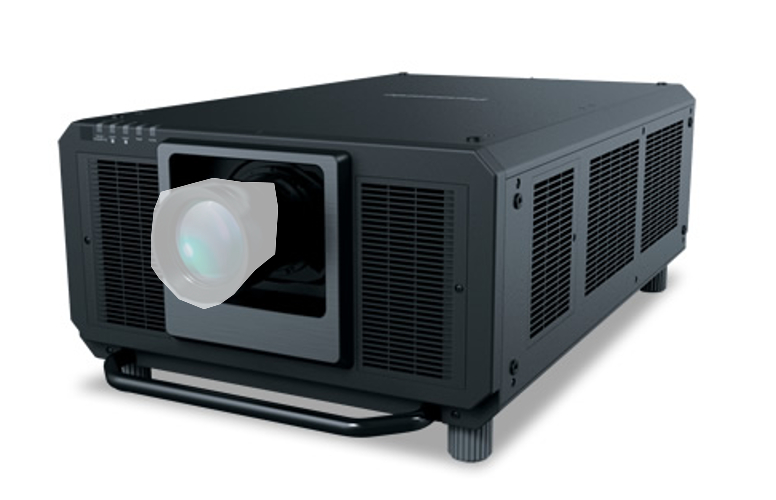

Panasonic PTRZ31KU
31,000lm 3DLP WUXGA Laser Projector, No Lens

OUR PART #:  PTRZ31KU

The Panasonic PT-RZ31K projector combines 3-Chip DLP™ with proprietary SOLID SHINE laser technology for bright and immersive picture quality.
Learn More
Similar Products

The Panasonic PT-RZ31K projector combines 3-Chip DLP™ with proprietary SOLID SHINE laser technology for bright and immersive picture quality. The PT-RZ31K has 31,000 lm of brightness with durable performance.

NOTE: Lens is NOT Included

Panasonic PTRZ31KU Features:

  • Original Technology for Elite Performance:
    • Combines 3-Chip DLP™ with proprietary SOLID SHINE laser technology for bright and immersive picture quality
    • Accurate Rec. 709-compliant color-space reproduction
    • Dual-drive laser optical engine ensures reliable 24/7 operation
    • Minimal maintenance required under continuous operation*1
    • Dustproof design featuring hermetically sealed laser modules, long-life Eco Filter, and refined air-intake system
    • Efficient cooling system for stable operation in ambient temperatures of up to 113 °F (45 °C)*2
  • Magnificent Image Quality and Reliable Operation:
    • 31,000 lm*3 of brightness with durable performance
    • Real Motion Processor 120 Hz frame-creation technology for smooth motion reproduction
    • Dynamic Contrast laser light-source modulation achieves high 20,000:1 contrast*4
    • Detail Clarity Processor 5 clarifies and enhances fine details with advanced processing algorithm
    • System Daylight View 3 improves color perception in bright environments and in mapping applications
    • Quiet operation with original cooling technology
  • Versatile System and Installation Flexibility:
    • Free 360° installation (vertical and horizontal)
    • Shares optional lenses with Panasonic 3-Chip DLP™ projector family
    • DIGITAL LINK supports transmission of uncompressed full HD video and control commands through a single CAT 5e or higher STP cable for distance up to 150 m (492 ft)*5
    • Eyebolt multi-rigging compatibility*6
    • Multiple projector stacking available without frame
    • Convenient one-box design
    • Multi-Screen Support System seamlessly connects multiple screens
    • Multi-Unit Brightness and Color Control
    • Geometry Manager Pro and optional upgrade kit (ET-UK20)

NOTES:
*1 Light source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period.
*2 Light output may be reduced to protect certain projectors depending on environmental conditions.
*3 Luminance measured at center of screen in High Mode. Operation in High Mode may reduce maintenance timing in comparison to use in Normal Mode.
*4 Dynamic Contrast set to 3.
*5 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080/60p (dot-clock frequency 148.5 MHz).
Transmission distance is up to 100 m (328 ft) in other cases.
*6 Not Available for the use of fixed installation.

Panasonic PTRZ31KU Specifications:

  • Power supply: AC 200-240 V, 50/60 Hz; AC 100-200 V,50/60 Hz (brightness is restricted with lower voltage)
  • DLP™ Chip:
    • Panel Size: 0.96" (24.4 mm) diagonal (16:10 aspect ratio)
    • Display Method: DLP™ chip x 3, DLP™ projection system
    • Pixels: 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
  • Refresh Rate: 120 Hz*1
  • Lens: Optional powered zoom and fixed-focus lenses(no lens included with this model)
  • Light Source: Laser diodes
  • Screen Size (Diagonal):
    • 70"-1,000" (1.78-25.4 m), 70"-600" (1.78-15.24 m) with the ET-D75LE8
    • 120"-600" (3.05-15.24 m) with the ET-D75LE95
    • 16:10 aspect ratio
  • Brightness: 31,000 lm (Center) / 30,000 lm*2 (HighMode)*3
  • Center-to-corner uniformity*2: 90 %
  • Contrast*2: 20,000:1 (Full on/off, with DynamicContrast Mode set to “3” )
  • Resolution: 1,920 x 1,200 pixels
  • Scanning Frequency:
    • SDI:
      • SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
      • HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
      • Dual-link HD-SDI: SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/60i, 1080/50i,
        1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p,
        [X´Y´Z´ 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p
      • 3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p,
        1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p,
        [YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p,
        [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p
      • Dual-link 3G-SDI: SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit / 10-bit] 1080/60p, 1080/50p,
        2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
    • HDMI/ DVI-D/ DIGITAL LINK: Compatible with HDCP, 480i*4, 576i*4, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 640 x 400-WUXGA*5 (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25-162 MHz
    • RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz or lower
    • YPBPR (YCBCR):
      • fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
      • fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
      • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
      • fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
      • fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
      • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
      • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
      • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
      • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
      • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
      • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
      • fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
      • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
      • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    • Video/Y/C: fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift*6 (from center of screen):
    • Vertical: ±55 % (±44 % with the ET-D75LE6, +68 - +78 % with the ET-D75LE95) (powered)
    • Horizontal: ±20 % (±15 % with the ET-D75LE6, ±12 % with the ET-D75LE95) (powered)
  • Keystone correction range:
    • Vertical : ±40° (±22° with the ET-D75LE50, ±28° with the ET-D75LE6
    • Horizontal: ±15°
  • Installation: Ceiling/floor, front /rear, free 360°installation
  • Dimensions (WxHxD): 27-25/32" x 16-17/32" x 50-25/32"(706 x 420 x 1,290 mm) (with protrusion parts)
  • Weight*7: Approx. 174 lbs. (79 kg)
  • Operating environment:
    • Operating temperature: 32°-113°F (0°-45°C)*8,
    • Operating humidity: 10- 80% (no condensation)
  • Applicable software: Logo Transfer Software, Multi Monitoring &Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20Upgrade Kit, Smart PJ Control)

NOTES:
*1: Refresh-rate varies depending on vertical scanning frequency.
*2: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3: Operation in High Mode may reduce maintenance timing in comparison to use in Normal Mode.
*4: Only compatible with dot clock frequency of 27 MHz (pixel repetition signal).
*5: WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
*6: Optical axis shift is not supported on the ET-D75LE50.
*7: Average value. May differ depending on the actual unit.
*8: When projector is operating at high attitude (1,400-2,700 m) [4,593-8,858 ft], operating temperature is 0°-40 °C (32°-104 °F). Light source brightness may decrease depending on operating temperature. When projector is operating at high temperature or at high altitude, brightness will decrease correspondingly.
