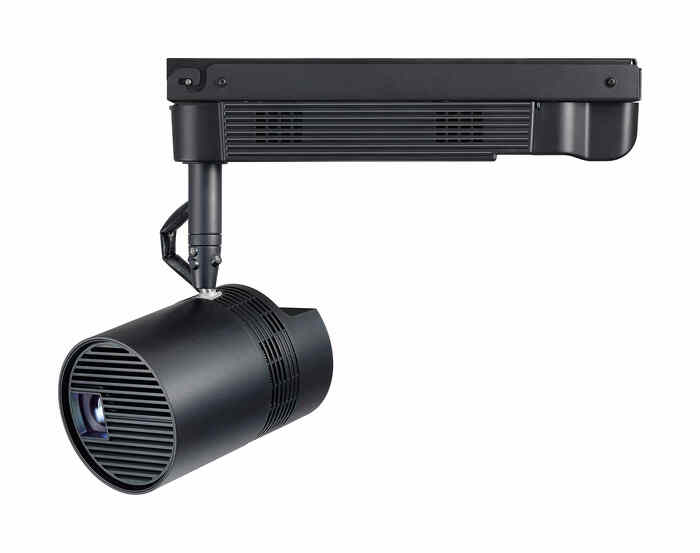

Panasonic PTJW130F
1000lm WXGA Laser Projector


Call for price! Not available online.

Select a Model: (shipping times are approximate)

Related Products

The Panasonic PT-JW130F Space Player provides a hybrid illumination and image-projection solution to enhance displayed objects or create vivid signage in variety of locations and applications. The ability to combine customized spotlighting and ambient illumination, still images, and moving pictures grabs attention in retail environments, while harnessing brightness and resolution to deliver text-and-image information clearly in exhibition spaces. With freedom to project a variety of media, and in-browser control for networked units, it’s never been easier to transform your display. The Space Player is great for cafes, restaurants, museums, and retail environments,

Panasonic PTJW130F Includes:

  • Wireless remote control unit x 1
  • Batteries for remote control (R03/AAA or LR03/AAA x 2)
  • Software CD-ROM (Multi Monitoring & Control Software, Wireless Manager x 1)

Panasonic PTJW130F Features:

  • Sleek spotlight-type design
  • Shoot from almost any angle
  • Bright and vivid picture quality
  • 20,000 hours maintenance-free
  • Choice of inputs
  • Wireless projection capability
  • Customizable lighting patterns
  • Playback schedulings
  • Content manager software
  • Network LAN control
  • Multi monitoring & control software
  • Keystone screen adjustment
  • 2.2x powered zoom lens
  • Direct playback
  • Simulation playback
  • Memory viewer

Panasonic PTJW130F Specifications:

  • Power Supply: AC 100–240 V, 50/60 Hz, 1.4-0.6 A (Europe), AC 120 V, 50/60 Hz 1.2 A (Americas)
  • Power consumption: 125 W (0.5 W for Europe/0.3 W for US with STANDBY MODE set to ECO*1, 6 W with STANDBY MODE set to NETWORK*2, 11 W with STANDBY MODE set to NORMAL)
  • DLP™ Chip:
    • Panel Size: 11.4 mm (0.45 in) (16:10 aspect ratio)
    • Display Method: DLP™ chip x 1, DLP™ projection system
  • Resolution: WXGA comparable
  • Lens: 2.2x Powered zoom (throw ratio 1.5–3.3:1), powered focus F 2.0–2.7, f 15.2–32.7 mm
  • Light Source: Laser diode (class 2)
    • Operating lifetime: 20,000 hours (as long as 50% of the original brightness are maintained)
  • Screen size (diagonal): 30"–200" (0.76–5.08 m)
  • Brightness*3: 1,000 lm
  • Contrast*3: 1,000:1 (full on/full off)
  • Scanning frequency:
    • HDMI: 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60
  • Keystone correction range:
    • Vertical: ±40°
    • Horizontal: ±40°
  • Terminals:
    • HDMI IN: HDMI 19-pin x 1 (Compatible with HDCP)
    • LAN: RJ-45 x 1 for network connection, 100Base-TX, 10Base-T, compatible with PJLink™ (Class 1)
    • AUDIO OUT: M3 x 1 (L-R x 1) for output (variable)
    • DC OUT: USB connector (Type A) x 1, for power supply (DC 5 V, maximum 900 mA)
  • Card slot: SD card slot*4 x 1 (supports SDHC memory card)
  • Wireless LAN: IEEE802.11a/b/g/n
  • Weight*5: Approximately 7.3 lbs. (3.3 kg)
  • Operation Noise*1:
    • When using with ET-JPC100:
      • 30 dB (Light power: Eco)
      • 36 dB (Light power: Normal)
    • When using with ET-JPF100:
      • 32 dB (Light power: Eco)
      • 37 dB (Light power: Normal)
  • Operating Environment: Operating temperature: 0-40°C (32-104°F)*6, operating humidity: 10-80% (no condensation)

*1: When STANDBY MODE is set to ECO, network functionality (both wireless LAN and wired LAN) is not available.
*2: When STANDBY MODE is set to NETWORK, network functions are restricted to projector operations via wired LAN using the Wake-on-LAN function.
*3: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4: Operations of the Panasonic SD memory card up to capacity of 2 GB and Panasonic SDHC memory card up to capacity of 32 GB are confirmed.
*5: Average value. May differ depending on the actual unit.
*6: The operating environment temperature should be between 0°C (32°F) and 35°C (95°F) when using the projector at elevations between 1,000 m (3,281 ft) and 2,700 m (8,858 ft) above sea level. When using the projector at elevations lower than 1,000 m (3,281 ft) above sea level, and the operating environment temperature becomes 35°C (95°F) or higher, the light output may be reduced to protect the projector. When using the projector at elevations between 1,000 m (3,281 ft) and 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30°C (86°F) or higher, the light output may be reduced to protect the projector.
