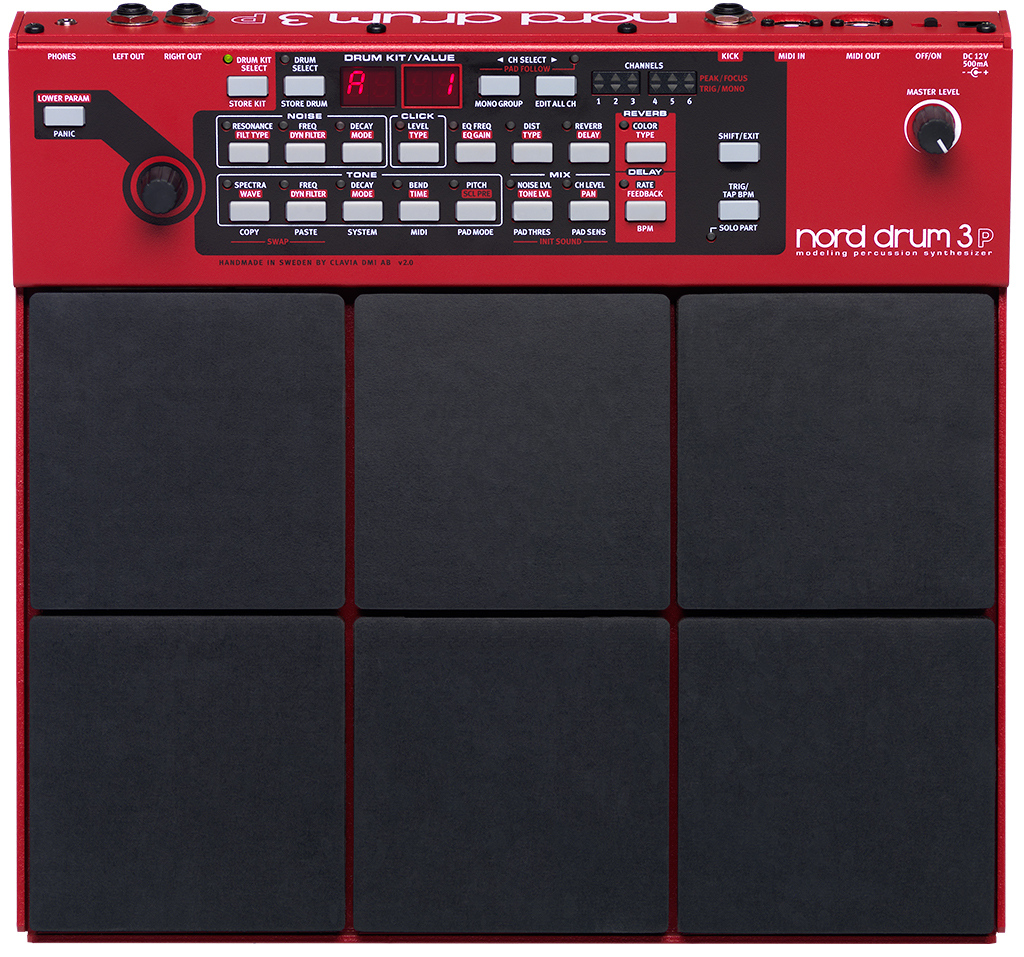

Nord USA Drum 3P
Modeling Percussion Synthesizer


Nord Drum 3P is equipped with an integrated multi-pad, Reverb and Delay effects, simplified sound selection mode and new Sound Banks.
Learn More
Our Price: $699.00
List Price: $799.00
You save 13%!
Write the first review.
Nord USA Drum 3P
In Stock

Related Products

Nord Drum 3P is equipped with an integrated multi-pad, Reverb and Delay effects, simplified sound selection mode and new Sound Banks.

The sounds of the Nord Drum 3P are synthesized in real-time allowing you to sculpt and play sounds with a unique dynamic response. The Tone Section is comprised of four synthesis modes:

Resonant synthesis mode: Provides a wide range of complex spectras inspired by materials like drum heads, marimba, vibraphone, tines, and cymbals.
Subtractive Wave types: Includes Sine, Saw, Square, Pulse waveforms and T-Bridge Oscillators.
FM Synthesis mode: Six different FM algorithms where the Frequency parameter controls modulation amount and Spectra controls modulation frequency.
Ring Modulation mode: Two different types of Ring Modulation.

Nord Drum 3P Includes:

  • User Manual
  • Universal Module Mount
  • Universal Power Adapter

Nord Drum 3P Features:

  • 6-channel Modeling Percussion Synthesizer
  • Integrated multipad, kick pad input and MIDI NEW
  • Simplified user interface with easy sound selection NEW
  • New preset 'Drum Select' library for kicks, snares, toms and more NEW
  • Advanced sound engine with Resonant Synthesis, Subtractive synthesis and FM-synthesis
  • Reverb and Delay Effects - adjustable amount for each pad NEW
  • Drive, Sample-Rate reduction, Ring Modulation and EQ effects for each pad
  • MIDI in/out and full CC-control
  • Stereo Output with improved output level
  • Headphone Output with improved output level
  • Nord Drum 3P Specifications:

    • Global
      • 4 Character LED-display
      • 4 Banks x 50 Programs for Drum Kits
      • 9 Drum banks for single drum sounds - Bass Drums, Snare Drums, Toms, Hi-Hats, Cymbals, Percussion, Bells, Tuned Percussion, Effects
      • 8 User Banks x 50 sounds for single drum sounds
      • Free OS updates
    • Sound Generation
      • 6-channel Percussion Modeling Syntesizer
      • Tone section - Resonance modeling, Subtractive, Ring Modulation and FM-synthesis
      • Noise section - Low Pass 12dB/24dB, High Pass 12db/24dB, High Pass High Cut and Band Pass 6dB/12dB filter. Adjustable resonance and filter envelope response
      • Click section - 12 click types, Noise Waveforms, Short Pulses, High Pass Filtered Pulses and Chirps. Adjustable level.
    • Effects
      • Global Stereo Reverb with 5 reverb modes (Tiled Room, Room, Plate, Stage and Hall) and Color high pass/low pass. Reverb amount can be adjusted per channel.
      • Global Delay with Rate (Milliseconds), Feedback and Tap Tempo mode (BPM)
      • Drive, Sample Rate Reduction and Ring Modulation Effects per channel
      • EQ with Gain and Frequency controls per channel
    • Pads and Trigger Input
      • 6 integrated rubber pads with adjustable Input Threshold/Sensitivity
      • External Trigger input with adjustable Input Threshold/Sensitivity for Kick drum pad or similar
      • Adjustable Dynamic Response Curves
      • Channel Peak/Activity indicator
    • MIDI
      • MIDI Note ON/OFF
      • MIDI Program Change
      • MIDI CC parameter control
    • Connection
      • 2 Audio Outputs ¼", 6,35 mm (unbalanced)
      • Stereo Headphones Output - 1/8”, 3,5 mm
      • MIDI in & out - 5 pin DIN connectors
      • 1 generic trigger input - ¼”, 6,35 mm
      • DC input - 12V, 250mA
    • Dimensions: 11.78" x 1.9" x 11.2" (29.9 x 4.85 x 28.1cm)
    • Weight: 4.1 lbs (1.85 kg)
