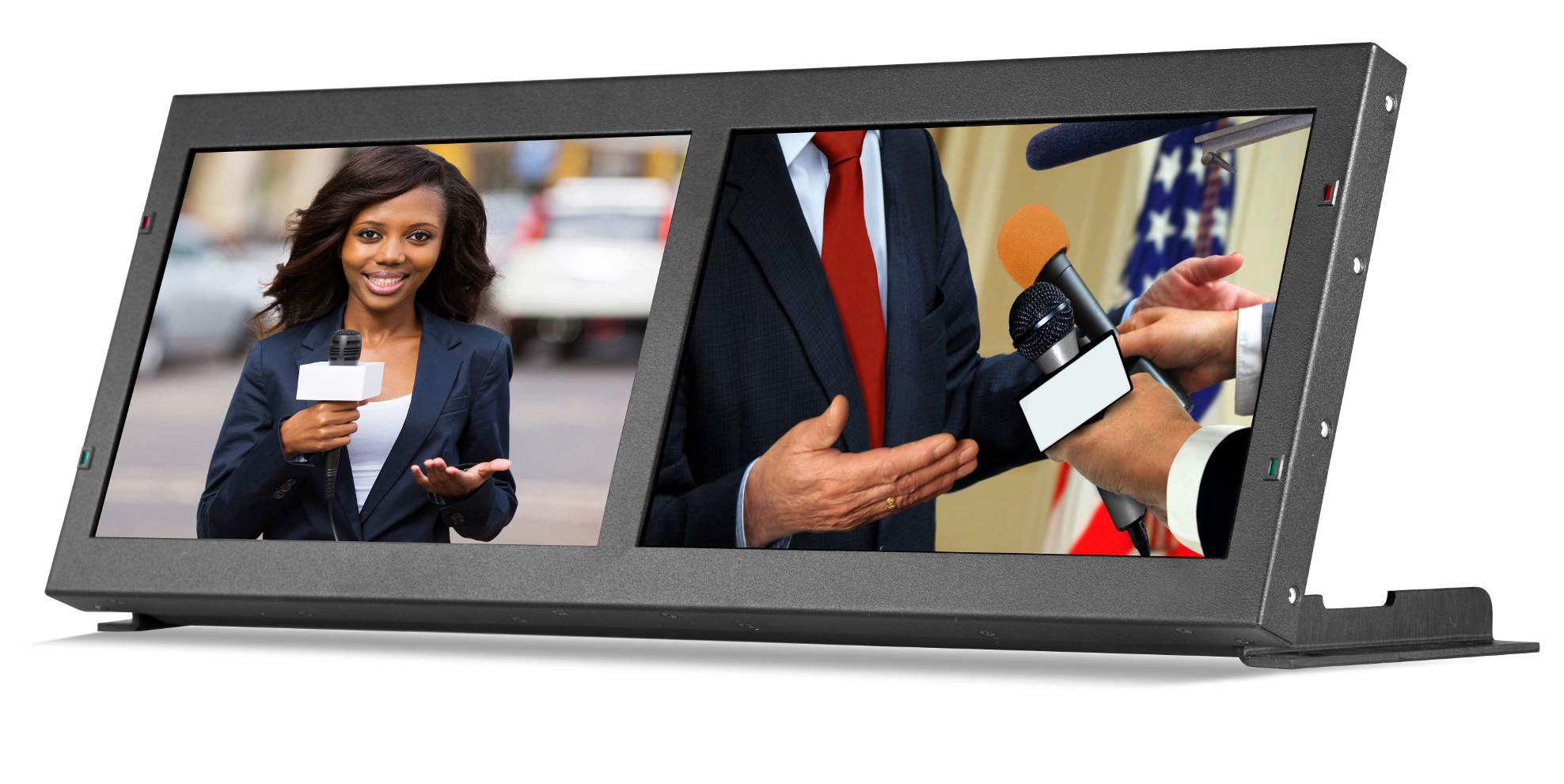

Marshall Electronics V-R1012-IMD-3GTE
Dual 10.1" 3G HD Rackmount Monitor with IMD Function

OUR PART #:  V-R1012-IMD-3GTE

From Marshall Electronics LCD Rack offerings comes the V-R1012-IMD-3GTE; a dual 10.1" 3G HD rackmount monitor with IMD (In-Monitor Display) functionality.
Learn More
Our Price: $2,498.75
List Price: $2,940.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-R1012-IMD-3GTE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

From Marshall Electronics LCD Rack offerings comes the V-R1012-IMD-3GTE; a dual 10.1" 3G HD rackmount monitor with IMD (In-Monitor Display) functionality. The V-R1012-IMD Rackmount monitor is a cost-effective, fully integrated solution designed for exceptional functionality while saving precious rack space. The dual 10.1" 1280 x 800 LCD panels support video time code, tri-color "soft" tally, and audio presence indicators with 3G/HD-SDI inputs.

Common applications for the V-R1012-IMD-3GTE include:

  • Live Broadcast
  • Broadcast Units
  • HD OB Truck
  • Closed Captioning
  • Confidence Monitoring
  • Audio Monitoring

Marshall Electronics V-R1012-IMD-3GTE Features:

  • No need for external Under Monitor Display --"all-in-one" In-Monitor Display solution without added depth
  • Supports the following protocols: Image Video /NVISION / TSL / MEI
  • 1280 x 800 RGB Dots with 2.4 million pixels
  • 16.7 million colors
  • High resolution scaling / high quality deinterlacing
  • Ultra-wide viewing radius -- 170 degree horizontal and vertical provides superior visibility
  • 500 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
  • 800:1 ratio of contrast between black and white luminance values
  • Three-color on-screen "soft" tally indicators (Red /Green / Amber)
  • Two LED color tally indicators (Red / Green)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Field upgradeable firmware capability via RS-422 /485 port
  • Direct access for adjustments of brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory

Marshall Electronics V-R1012-IMD-3GTE Specifications:

  • Panel:
    • Number of Panels: 2
    • Panel Size: 10.1" Diagonal
    • Resolution: 1280 x RGB x 800
    • Aspect Ratio: 16:10
    • Type: LCD Panel
    • Brightness: 500 cd/m²
    • Contrast: 800:1
    • Color Gamut: YUV, RGB
    • Viewing Angles: 150° x 150°
    • Backlight type: LED
  • Features:
    • Compatible Input Formats:
      • SDI / HDSDI Inputs:
        • 525i/59.94,625i/50
        • 720p/23.98,24,25,29.97,30,50,59.94,60
        • 1080p/23.98,23.98sF,24,24sF,25,29.97,30
        • 1035i/59.94,60
        • 1080i/50,59.94,60
      • 3G-SDI Inputs:
        • 3G - Level A and Level B
        • YCbCr, YCbCr+A, RGB, RGB+A
        • 1080p/60,59.94,50
        • 1080p/30,29.97,25,24,23.98,30sF,29.97sF,25sF,24sF,23.98sF
        • 1080i/60,59.94,50
    • Loss of Input Curtain: Yes
    • Color Temperature: D65, D55 and D93
    • Tally: Yes
    • Closed Caption: Yes
    • Pre-set Gamma points: Yes
    • Self-Sensing: Yes
    • Re-clocked/Re-Shaped: Yes
  • Input Connectors:
    • 3G-SDI Video Input (Per Screen)
    • 1 x BNC Female (75 ohm)
  • Output Connectors:
    • 3G-SDI Video Output (Active Output, Per Screen)
    • 1 x BNC Female (75 ohm)
  • Audio Outputs:
    • Embedded Audio SDI: Yes
    • Headphones: Yes
    • Input Status Display: Yes
  • Audio OSD:
    • Audio Bars: Yes
    • Channels: Yes
  • Control Inputs:
    • Tally / GPI: Yes
    • RS-485/422 w/ Loop-Through: Yes
    • Ethernet: No
    • Handles/Rack Ears: Yes
  • Power:
    • Voltage: 12 VDC
    • Consumption: 3.0A @ 12VDC (36 W)
    • Power Switch: Yes
    • Connector: 2-Pin Twist Lock
  • Compliance:
    • Compliance: CE approved
  • Environmental:
    • Operating Temperature: 57° F to 104° F (15° C to 40° C)
    • Storage Temperature: 14°F to122°F (-10° C to 50° C)
  • Dimensions:
    • Unit dimensions: 18.94" W x 6.95" H x 1.74" D
    • Weight (Main Body): 6.5 lbs
