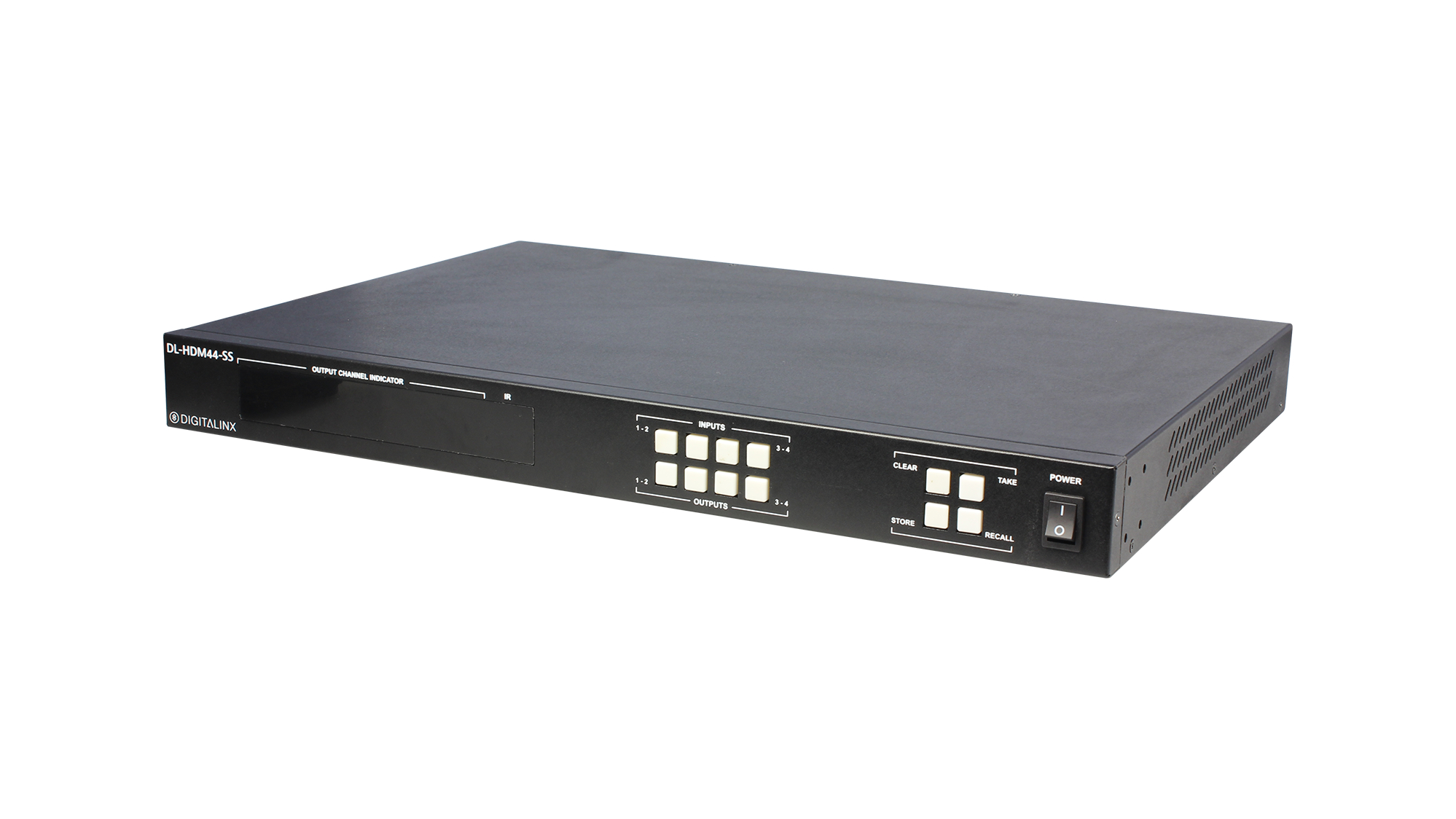

Intelix DL-HDM44-SS
HDMI 4X4 Matrix

OUR PART #:  DL-HDM44-SS

A four input by four output HDMI matrix switcher...
Learn More
Our Price: $899.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix DL-HDM44-SS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A four input by four output HDMI matrix switcher, the Intelix DigitaLinx DL-HDM44-SS also has HDCP 2.2 and a full-loading capability 4K @60Hz 4:4:4 with HDR output support for each channel. For EDID management, it features an advanced independent DIP switch. The DL-HDM44-SS delivers HDCP handling, including the ability to turn input HDCP compliance ON and OFF, ensuring maximum functionality with a wide variety of sources.

The DL-HDM44-SS can be controlled via front panel buttons, front panel IR, external IR, remote IR, RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching as well as a full command set for RS232 and Ethernet control with third party control systems, plus web browser control.

Intelix DigitaLinx DL-HDM44-SS Includes:

  • Intelix DigitaLinx DL-HDM44-SS Unit
  • Installation Guide
  • IR Remote
  • IR Receiver
  • Rack Mounting Ears with Screws
  • US Power Cable
  • USB to UART Cable

Intelix DigitaLinx DL-HDM44-SS Features and Benefits:

  • 4x4 HDMI matrix switching
  • 4K, HDMI 2.0, HDCP 2.2 compliant
  • Built-in EDID management
  • Front panel, IR, RS232, and Ethernet control
  • Built-in webserver control
  • 1 RU design

Intelix DigitaLinx DL-HDM44-SS Specifications:

Input/Output Connections:

  • HDMI Inputs: Four (4) HDMI Type A Receptacle
  • HDMI Outputs: Four (4) HDMI Type A Receptacle
  • IR All In: One (1) 3.5mm TRS
  • TCP/IP: One (1) 8P8C Port (Shielded RJ45 Female)
  • RS232: One (1) DB9 Port Female
  • Power: One (1) IEC C14

Supported Audio, Video, and Embedded Control:

  • Video Resolutions: Up to 4K @60Hz 4:4:4 8 bit
  • Color Depth: 1080p 48bit / 4K 24bit
  • Maximum Passive: HDMI Cable Distance 1.5m for 4k60 signals
  • Video Compliance: HDMI 2.0 and HDCP 2.2
  • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
  • Embedded RS232 Baud Rate: 9600 baud

Device Control Parameters:

  • IR Carrier Frequency Range: 33-55kHz at 5 volts
  • Ethernet: 100BaseT
  • RS232 Baud Rate: 9600 baud

Chassis and Environmental:

  • Enclosure: Painted Aluminum
  • Dimensions (H x W x D): 1.69" x 17.20" x 11.77" (43 x 437 x 299 mm) – 1 RU
  • Shipping Weight: 9.30 lbs. (4.22kg)
  • Operating Temperature: +32° to +113° F (0° to +45° C)
  • Operating Humidity: 10% to 90%, Non-condensing
  • Storage Temperature: -4° to +140° F (-20° to +70° C)
  • Storage Humidity: 10% to 90%, Non-condensing

Power, ESD, and Regulatory:

  • Power Supply: 100V-240VAC / 50-60 Hz
  • Power Consumption: 45W (Max.)
  • ESD Protection: 8kV air, 4kV contact
  • Product Regulatory: FCC, CE, RoHS

Other:

  • Standard Warranty: 2 years
  • Diagnostic Indicators: System LCD
