Product Overview

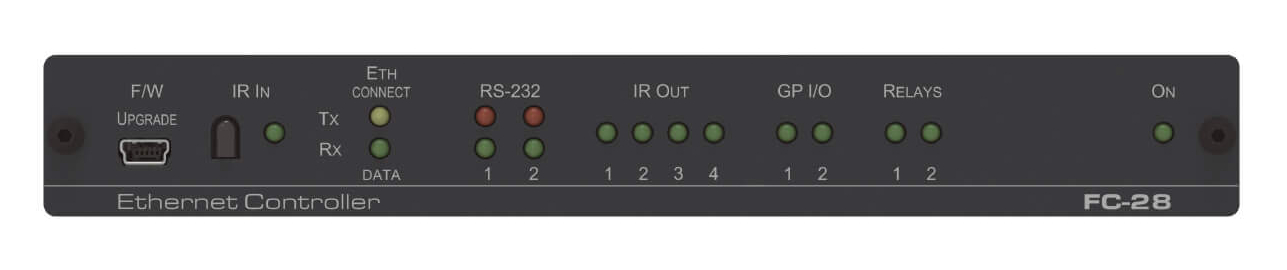

An Ethernet-powered (PoE) control gateway, the Kramer FC-28 is capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS-232, IR, GPI/O and relay control connections. Multiple control clients can be IP-connected to the FC-28 control gateway for simultaneous control of two (2) RS-232, as well as four (4) IR controllable devices, such as AV scalers, video displays, DVD players, audio amplifiers, screens, sensors, shades, door locks, and lighting.
Main Applications
- Remote IP control of RS–232 and IR-controlled devices
- K–Touch multi–clients IP room control
- LAN–based expansion of K–Config control system
Includes
- FC-28 unit
- Power adapter
- IR Cable CA35M/IRE10
Features
- 2 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.
- 4 IR Emitter Control Ports — Control a device via IR control protocols.
- 2 GPI/O Control Ports — Controls a device via general purpose I/O ports, program–configured as digital input, digital output or analog input interface for controlling sensors, door–locks, audio volume and light dim level, or lighting control devices.
- 2 Relay Control Ports — Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
- Simultaneous IP Control Communication — With up to 40 IP control clients.
- IR Sensor Port — Learns commands from IR remotes.
- Mini USB Port — For firmware upgrades and local technical services.
- 1 Ethernet Control Port — Remote protocol–based control port.
- Built–in Web Pages — Remote browser–based control and support.
- Easy Installation — Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto–setup deployment for simple and cost–reducing installation.
Specifications
- Outputs: 4 IR & relays on 2-pin terminal blocks
- Ports: 2 RS232 serial on 3-pin terminal blocks, 2 GPI/O on 2-pin terminal blocks, 1
- Ethernet on an RJ45 connector, 1 mini USB connector for local services, 1 built-in IR sensor (for learning)
- Supported Serial Port Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
- RS-232 Communication: Transparent up to 115200bps
- IR Emitter Cable Range: 260ft (80m)
- Supported IR Input Frequencies: 20kHz to 60kHz
- Supported IR Output Frequencies: 20kHz to 1.2MHz
- Maximum Data Handling Of Device: Up to 150kbps summed on all ports
- Power Consumption: 5V DC, 230mA
- Product Dimension (W x D x H): 7.38" x 4.53" x 1.00" (18.75 x 11.50 x 2.54cm)
- Product Weight: 1.0 lb (0.5 kg) approx
- Shipping Dimension (W x D x H): 13.58" x 6.50" x 2.05" (34.50 x 16.50 x 5.20cm)
- Shipping Weight: approx. 2.1 lbs (1.0kg)
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: –40° to 158°F (–40° to +70°C)
- Humidity: 10% to 90%, RHL noncondensing
- Cooling: Convection
- Enclosure Type: Aluminium
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Safety Regulatory Compliance: Ce
- Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
- Options (sold separately): 19" Rack adapter RKT2B, IR cables: CA35M/2IRE10, CA35M/IRR3, CAS35M/AS35F50, CA35M/IRE10; bulk cable for serial control: BC1T300M
