Lowell ACR-SEQ6-2009 Power Panel, 20A, 6-Switched 3-Unswitched Outlets, 1 Rack Unit, Sequencer

OUR PART #: ACR-SEQ6-2009 MFR #: ACR-SEQ6-2009

Copied to clipboard

Lowell's ACR-SEQ-2009 is a rackmount panel with nine outlets, a 4-step sequencer, and a rear terminal block for connection to optional remote switches... ...Read more

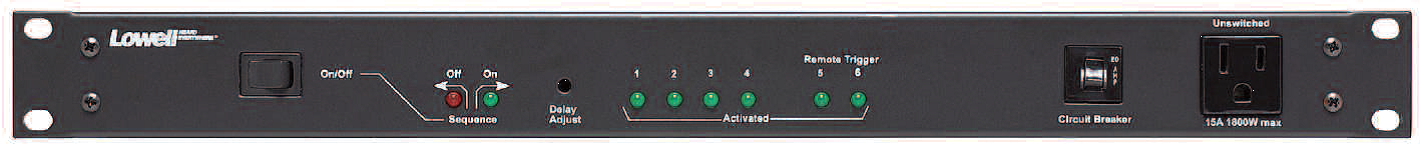

Lowell ACR-SEQ6-2009 Power Panel, 20A, 6-Switched 3-Unswitched Outlets, 1 Rack Unit, Sequencer Image 1
Lowell ACR-SEQ6-2009 Power Panel, 20A, 6-Switched 3-Unswitched Outlets, 1 Rack Unit, Sequencer Image 2
Lowell ACR-SEQ6-2009 Power Panel, 20A, 6-Switched 3-Unswitched Outlets, 1 Rack Unit, Sequencer
Our Price: $790.79
List Price: $898.62
You save 12%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$22/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Lowell's ACR-SEQ-2009 is a rackmount panel with nine outlets, a 4-step sequencer, and a rear terminal block for connection to optional remote switches, external triggers and alarm system interfaces. This power panel also includes three unswitched power outlets (1 front, 2 rear) and 6 switched rear outlets for sequential activation of connected equipment.

Lowell ACR-SEQ-2009 Rackmount Power Panel Features:

  • Delay between sequenced steps (0.5-10 seconds) is screwdriver adjustable
  • Power rating of 120VAC, 60Hz/20A with EMI/RFI filtering. Each receptacle rated 15A
  • Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by firecode
  • Includes two dry contact closures (steps 5 and 6) for triggering remote power control units (RPC series, order separately)

Lowell ACR-SEQ-2009 Rackmount Power Panel Specifications:

  • Actuation Switch: front panel rocker switch with momentary contacts (normally open SPST) plus rear barrier strip termination blocks for momentary (normally open) remote switches
  • Alarm Interface: lock on, lock off and switch lock functions for alarm system or master control panel applications
  • External Control Connections: plug-in barrier strip terminal blocks
  • EMI/RFI Filter: 19dB@500kHz, 42dB@30MHz
  • Termination via 9 ft. attached cord with NEMA 5-20P plug
  • Dimensions: 19" W x 1.75" H (1U) x 9" D
  • Made in the U.S.A.
  • ETL-listed in the U.S. and Canada to UL Standard 60065
