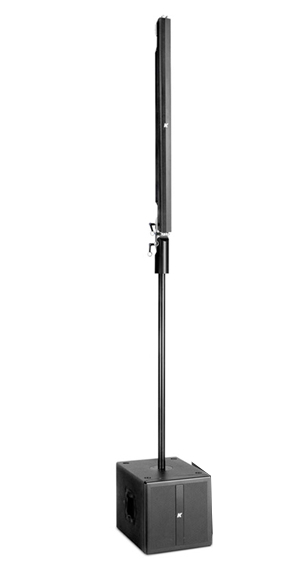

K-Array KR102 Mark I
High Tech, Ultra-Light Powered Array System

OUR PART #:  KR102-I

The KR systems are integrated, self-powered speaker systems, featuring mid-hi line array elements matched to powered subwoofers.
Learn More

Call for price! Not available online.
List Price: $12,846.05

Similar Products

The KR systems are integrated, self-powered speaker systems, featuring mid-hi line array elements matched to powered subwoofers. All systems feature two channels of Class D amplification housed in the subwoofer. The rear panel provides input for 2 balanced line signals and a digital signal in AES/EBU protocol. And with the K-dante accessory, the system can be used in a Dante network. An integrated touch screen provides intuitive managing and editing of powerful DSP controlling: Input and output levels, In/Out routing, subwoofer delay up to 12 ms, Speakon output to the mid-hi element with delay up to 12 ms, and overall system delay up to 330 ms. All DSP functions, including EQ can be controlled with remote managing software via USB or RS485, again, conveniently on a standard XLR.The unique four-corner port configuration gives symmetrical back loading to the sub speaker for extended bass response with very low distortion. This also gives incredible structural strength to the cabinet despite its light weight. Pocket handles in the sub and an M20 thread mount position for attaching mid-high speakers, with a variety of mounting and rigging hardware options make the systems very versatile in almost any application and in every type of venue.KR102 features a pair of KMT12 (12”) subs each with 2 channels of 1,000 W matched to a Kobra loudspeaker with 16 x 2” neodymium speaker elements.

The K-array KR102 Mark I features two channels of class D amplification housed in the subwoofer, where you can also find input for a balanced line signal, balanced microphone signal with phantom power AES/EBU protocol and XLR for ease of cabling.

K-array KR102 Mark I Features:

  • High power 128 dB continuous, 134 dB peak
  • Line array emission wavefront
  • DSP onboard with dedicated presets
  • Ultra fast setup and dismantling system
  • RS485 and USB connectivity for remote control

K-array KR102 Mark I Specifications:

  • Acoustics:
    • Power handling: 400 W
    • Impedance: 8 Ohm or 32 Ohm (selectable)
    • Frequency range: 150 Hz - 20 kHz
    • Maximum SPL: 124 dB continuous - 130 dB peak
  • Coverage:
    • Horizontal: 110°
    • Vertical: 7°- 35° (selectable)
  • Physical:
    • Dimensions: 8.1 x 100 x 5.9 cm (3.19” x 39.4” x 2.32”)
    • Weight: 4.6 Kg (10.14 lbs)
