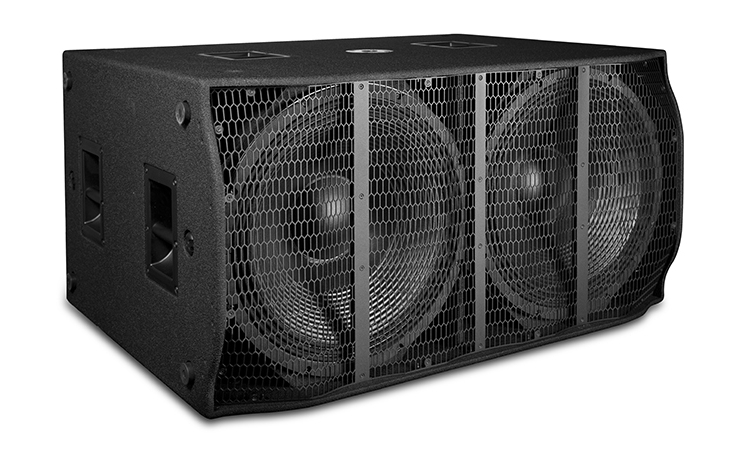

K-Array KS5
Large Format, Self-Powered Subwoofer

OUR PART #:  KS5

The K-array KS5 is a self-powered subwoofer system.
Learn More

Call for price! Not available online.
List Price: $17,672.35

Similar Products

The K-array KS5 is a self-powered subwoofer system. It is best suited for high-powered, extended bass response applications in arenas, theatres, stadiums, concert halls, houses of worship and outdoor events. The 21" loudspeakers feature Neodymium magnets with 6" voice coils driven by powerful Class D amplifiers. The rear panel provides inputs for a balanced line signal, a balanced microphone signal with phantom power, and digital signals in AES/EBU protocol, also on an XLR for ease of cabling.

K-array KS5 Features:

  • Self powered
  • Integrated DSP and remote control
  • Onboard touch screen with matrix control
  • RS485 and USB connectivity for remote control

K-array KS5 Specifications:

  • Acoustics:
    • Power handling: 2 x 2500 W
    • Max power: 8000 W
    • Impedance: 2 x 2 Ohm
    • Frequency range (-10 dB): 25 Hz – 120 Hz
    • SPL 1W/1mt: 99.5 dB
    • Maximum SPL: 138 dB (cont.) – 142 dB (peak)
  • Coverage:
    • Horizontal: omni - cardio (array)
    • Vertical: omni - cardio (array)
  • Crossover:
    • Type: Internal DSP controlled
    • Frequency: low pass @ 150 Hz (maximum)
  • Transducers:
    • Type: 2 X 21” Neodymium magnet woofer with 5.5” voice coil
  • Audio In/Out:
    • Analog connectors: 2 male + 2 female 3-pin balanced XLR
    • Digital connectors: 1 male + 1 female 3-pin balanced XLR
  • Remote Control Input:
    • Connectors: 1 male + 1 female XLR parallel; 1 USB B Jack serial converter
  • Amplifier:
    • Type: 1 module class D - DSP controlled
    • Nominal Power Output: 2 X 3500 W @ 2 Ohm 1% THD + NOISE
    • Protections: Over Temp.(Power Limiting – Thermal Shutdown), Short Circuit/Overload Output Protection, Power Limiting,
    • Clip Limiter/Permanent Signal Limiter, High Frequency Protection
    • Frequency response: 20 Hz – 20 kHz (+0 -1 dB) for 1 W @ 8 Ohm
    • Damping factor @ 100 Hz: >10000
    • THD+N  1kHz,1 W: 0.2%
  • AC Power:
    • Nominal power requirements: 100-240 +/- 10%, 50-60 Hz with PFC
    • Operating Range: 90 – 264 Vac (auto range)
  • Physical:
    • Dimensions: 116.2 x 59.0 x 85.0 cm (45.7 x 23.2 x 33.5")
    • Weight: 104.4 kg  (230.2 lbs)
