K-Array Thunder-KMT12 I 12" Subwoofer with DSP and Power Output, 700W

OUR PART #: KMT12-I

Copied to clipboard

The K-array KMT12 I is a powered 12” subwoofer... ...Read more

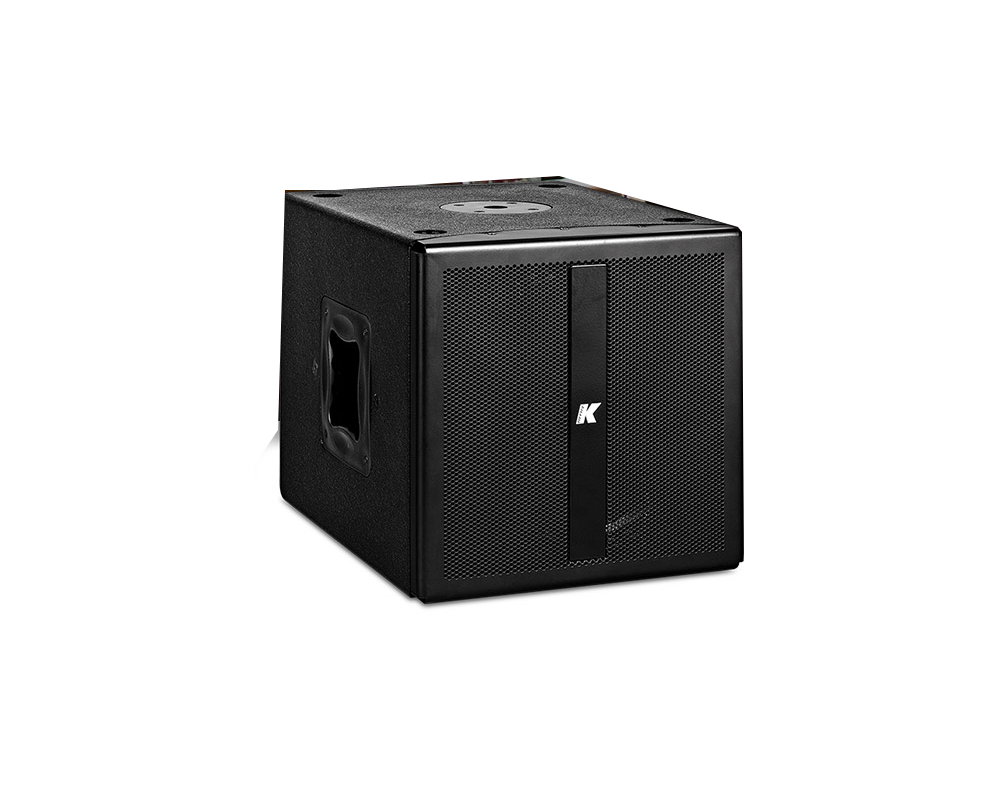

K-Array Thunder-KMT12 I 12" Subwoofer With DSP And Power Output, 700W Image 1
K-Array Thunder-KMT12 I 12" Subwoofer With DSP And Power Output, 700W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The K-array KMT12 I is a powered 12” subwoofer, whit programmable on-board DSP and multiple analog and digital inputs and outputs for creating a wide array of speaker configurations. The amplifier mounted on board is class D, delivering 2 x 1000 W at 8 Ohm. The KMT12 I features an integrated touch screen, providing intuitive control over the main DSP functions: input/output levels, signal routing, offset delays for subwoofer and speakon output and overall system delay (up to 330 ms). All DSP functions, including EQ, can also be remote controlled via software over USB or RS485 (3-pin XLR). The KMT series provides two balanced analog line level inputs and a two-channel AES/EBU digital input. An integrated class D amplifier delivers 2 x 1000 W at 8 Ohm, with a max THD of 1% (EIAJ test @ 1kHz). The KMT12 I features multiple analog and digital outputs, including a Speakon output to connect a wide array of passive speakers including mid-high models (KK52, KK102) or additional passive subwoofers (KMT12P). To optimize performance, the on-board DSP includes up to 40 programmable presets. The unique four-corner port configuration provides symmetrical back loading to the speakers, for extended bass response with very low distortion. The port configuration also provides incredible structural strength to the cabinet, despite its light weight. Pocket handles and an M20 thread mount position for attaching mid-high speakers makes the subwoofer convenient to use and ideal for medium throw applications in theaters, concert halls, and Audio/Video installations. All KMT components are designed by K-Array and custom made under K-array’s quality control system. All KMT components are designed by K-array and custommade under K-array’s quality control system.

K-array KMT12 Mark I Features:

  • Unique performance-to-size ratio
  • Fitted with integral handles and castors
  • Direct radiating, long excursion 12” driver
  • Analog and digital AES-EBU inputs
  • RS485 and USB connectivity for remote control

K-array KMT12 Mark I Specifications:

  • Acoustics:
    • Speaker Power handling: 700 W
    • Max power: 1200 W
    • Impedance: 8 Ohm
    • Frequency range: 40 Hz - 150 Hz +/- 3dB (preset relating)
    • SPL 1W / 1mt: 99 dB
    • Maximum SPL: 128 dB continuous - 134 dB peak
  • Amplifiers:
    • Type: 1 modules class D - DSP controlled
    • Subwoofer power: 1000 Watt @ 8 Ohm
    • Speaker power output: Dynamic limiter, over current, over temp, short circuits
  • AC Power:
    • Nominal power requirements: 100 - 240 Vac +/- 10% 50-60 Hz
    • Operating range: 85 – 265 Vac (auto-range)
  • Physical:
    • Dimensions: 32.6 x 32.7 x 43.3 cm (12.8 x 12.9 x 17.0")
    • Weight: 15.6 kg (34.4 lbs)
