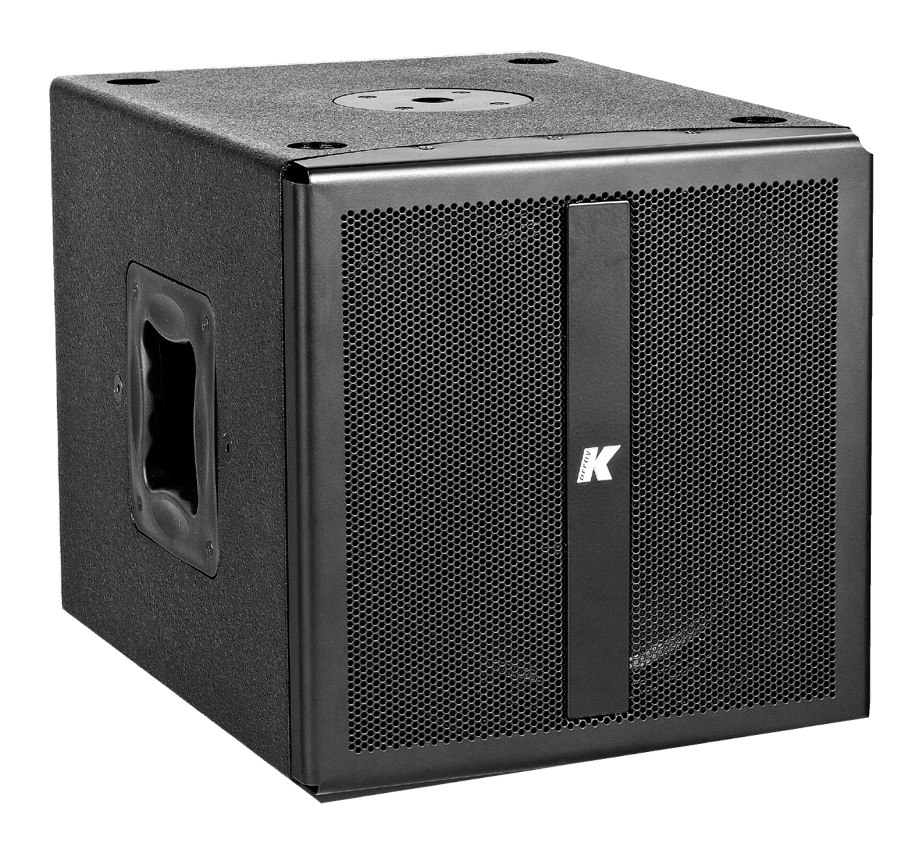

Product Overview
The KMT18 puts out 2x1000W at 8 Ohm with its Class D amplifier and comes equipped with multiple analog and digital outputs to connect a wide array of passive speakers including mid-high models or additional passive subwoofers. The onboard DSP includes up to 40 programmable presets for optimal performance.
K-Array KMT181 Features:
- Unique performance-to-size ratio
- Fitted with integral handles and castors
- Direct radiating, long excursion 18” driver
- Analog and digital AES-EBU inputs
- RS485 and USB connectivity for remote control
- High power 127 dB continuous - 133 dB peak
- Direct radiating, 18" long-excursion driver
- Fitted with integral handles and castors
- Ultra-fast setup and dismantling system
- RS485 and USB connectivity for remote control
- Analog and digital AES-EBU inputs
K-Array KMT181 Specifications:
- ACOUSTICS
- Speaker Power handling: 800 W
- Max power: 1400 W
- Impedance: 8 Ohm
- Frequency range: 30 Hz - 150 Hz ± 3dB (preset relating)
- SPL 1W / 1mt: 99 dB
- Maximum SPL: 130 dB continuous - 136 dB peak
- COVERAGE: Omni
- CROSSOVER
- Type: DSP controlled
- Frequency: 150 Hz (preset dependent)
- TRANDUCERS
- Full range: 1 x 18” Neodymium speakers with 3” voice coil
- AUDIO INPUT
- Analog Connectors: 2 male + 2 female 3-pin balanced XLR
- Digital Connectors: 1 male + 1 female 3-pin XLR
- AUDIO POWERED OUTPUT
- Connector: Female Speakon
- Wiring: Pin1+= CH1+ Pin1= CH1- Pin2+= N.C. Pin2= N.C.
- REMOTE CONTROL INPUT
- Connectors: 1 male + 1 female XLR parallel / 1 USB B Jack serial converter
- POWER INPUT
- Connectors: 2 x PowerCon IN/OUT
- AMPLIFIERS
- Type: 1 modules class D - DSP controlled
- Subwoofer power: 1000 Watt @ 8 Ohm
- Speaker power output: 1000 Watt @ 8 Ohm
- Speaker power output: Dynamic limiter, over current, over temp, short circuits
- AC POWER
- Nominal power requirements: 100 - 240 Vac ± 10% 50-60 Hz
- Operating range: 85 – 265 Vac (auto-range)
- CONSUMPTION
- 1/8 rated power (pink noise) @ 8 Ohm: 300 W
- PHYSICAL
- Dimensions: 18.3“ x 18.3” x 23.3“ (46.5 cm x 46.5 cm x 59.2 cm)
- Weight: 60.8 lbs (27.6 kg)
