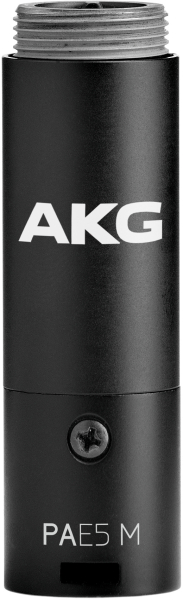

AKG PAE5 M Phantom Power Adapter with 5-pin XLR for DAM+ Series Capsules

The AKG PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the ?mic on? status. With its wide voltage range the module will fit most available microphone mixers.

The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

AKG PAE5 M Features:

• Extra feeding of LED ring to show mic status for use with automixers including logic outputs
• Highly reliable contacts to mounting modules prevent contact problems and ensure extra-long life
• RFi Shield technology provides high immunity to radio-frequency interference
• Feeds all DAM+ Series capsules for highest flexibility
• Switchable bass roll off for reduction of body noise and proximity effect

AKG PAE5 M Specifications:

• General:
  • Audio frequency bandwidth: 20 to 20000 Hz
  • Bass cut filter: 150 Hz
  • Recommended load impedance: 2000 Ohms
• Powering Interface:
  • Voltage: 9 to 52 V
  • Current: 3.5 mA
• Audio Output:
  • Type: Balanced XLR
  • Gender: Male
  • Contacts: 5-pin
• Dimensions / Weight:
  • Height: 65.5 mm
  • Diameter: 19.1 mm
  • Net Weight: 43 g
