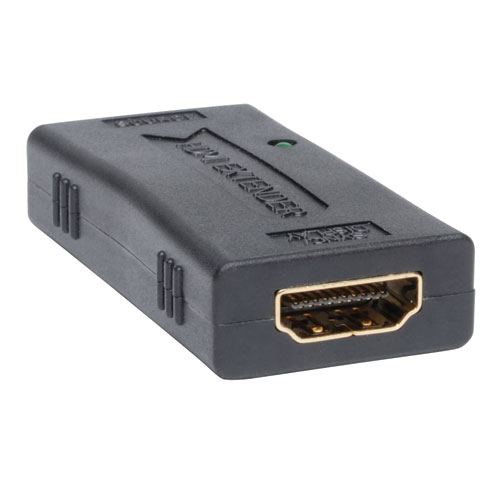

Tripp Lite B122-000 HDMI In-Line Signal Booster and Extender, HDMI-F to HDMI-F

OUR PART #: B122-000 MFR #: B122-000

Copied to clipboard

Tripp Lite's B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). ...Read more

Tripp Lite B122-000 HDMI In-Line Signal Booster And Extender, HDMI-F To HDMI-F Image 1
Tripp Lite B122-000 HDMI In-Line Signal Booster And Extender, HDMI-F To HDMI-F Image 2
Tripp Lite B122-000 HDMI In-Line Signal Booster And Extender, HDMI-F To HDMI-F Image 3
Tripp Lite B122-000 HDMI In-Line Signal Booster And Extender, HDMI-F To HDMI-F
Our Price: $29.47
List Price: $33.00
You save 11%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Tripp Lite's B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Tripp Lite B122-000 Includes:

  • B122-000 HDMI Signal Extender
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 0.5A)
  • Owner's Manual

Tripp Lite B122-000 Features:

  • Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source
  • Use P568-Series HDMI cables in most applications
  • When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order)
  • 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
  • HDCP compliant
  • No software or drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B122-000 Specifications:

  • AC Adapter:
    • Input: 100-240V, 50/60Hz, 0.5A
    • Output: 5V, 0.5A
  • Communications:
    • Max 1024 x 768 Range: 150 ft
    • Max 480P Range: 153 ft
    • Max 1440 x 900 Range: 150 ft
    • Max 1080i Range: 150 ft
    • Max 1080P Range: 150 ft
    • Max 480i Range: 153 ft
    • Max 640 x 480 Range: 150 ft
    • Max 800 x 600 Range: 150 ft
    • Max 1600 x 1200 Range: 150 ft
    • Max 720P Range: 150 ft
  • Connections:
    • Side A - Connector 1: HDMI (Female)
    • Side B - Connector 1: HDMI (Female)
  • Product Warranty Period (Worldwide): 1-year limited warranty
