Product Overview

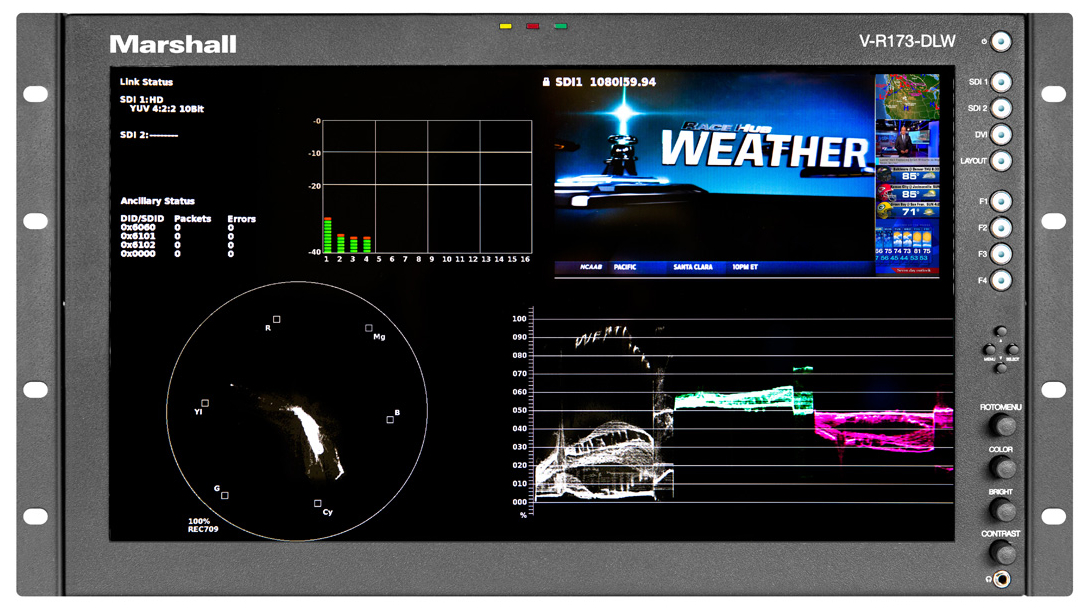

The Marshall Electronics V-R173-DLW-DT is a 17.3" monitor that features 3G, Dual Link and DVI inputs and displays Waveform & Vectorscope, Digital Audio and a host of additional information in a 10 bit "no compromise" video path. In Quad-View mode, the input signal can be broken into four quadrants that simultaneously displays all of the critical information needed to keep your signal path within all critical specifications.
Additional features include IMD protocol support for TSL, NVISION, Image Video, and MEI (Marshall Electronics) tricolor tally and in- monitor text systems via RS-485. Other display features include full CEA-608-B and CEA-708-B Closed Captioning, Timecode and VANC data.
Marshall Electronics V-R173-DLW-DT Features:
- Inputs:
- 2 x 3G-SDI inputs with loop-through and SD-SDI, HD-SDI, & 3G-SDI support.
- SDI inputs can be used in tandem to do dual link
- 1 x DVI-I input: supports digital DVI, HDMI (without audio), Analog video (RGB, YPbPr) to 162MHz
- Processing:
- 10-bit image processor
- 4x3 and 16x9 aspect ratios
- High quality motion adaptive deinterlacer
- Time-code (LTC / VITC)
- 608/708 closed captioning
- Waveform monitor
- Vectorscope
- Ancillary data window
- 16 channels of audio metering (SDI inputs only)
- Standard Marshall IMD processing
- RotoMenu controlled OSD
- Four programmable function buttons
- System statistics monitoring in OSD
- Variety of markers
- Miscellaneous:
- Hard TALLY (Red, Yellow, Green LEDs)
- Soft TALLY (in IMD)
- RS-485 interface supports Marshall, Image Video and TSL protocols
- System supports color calibration
- RS-485 based firmware update
Marshall Electronics V-R173-DLW-DT Specifications:
- Panel Size: 17.3" Diagonal
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Active Area: 381.88 x 214.81 mm
- Type: LCD Panel
- Brightness: 400 cd/m²
- Contrast: 600:1
- Viewing Angles (CR>=10): 160° x 160°
- Backlight type: LED
- Adjustable Backlight: Yes
- Video Formats: 1080p/1080i/720p/625i/525i
- Loss of Input Curtain: Yes
- Color Temperature: D55,65,93
- OverLay Position: Yes
- IMD Functions: Yes
- Tally: Yes
- Closed Caption: Yes
- Waveform: Yes
- Vectorscope: Yes
- Self-Sensing: Yes
- Re-clocked/Re-Shaped: Yes
- Input Connectors:
- SD-SDI: Yes
- HD-SDI: Yes
- 3G-SDI: Yes
- DVI-I: Yes
- Output Connectors:
- SD-SDI: Yes
- HD-SDI: Yes
- 3G-SDI: Yes
- Audio Meters: Yes
- Embedded audio from SDI: Yes
- Input Status Display: Yes
- Control Inputs:
- Tally / GPI: Tally
- RS-485/422 w/ Loop-Through: Yes
- Ethernet: No
- Controls on front Panel: Yes
- User-Defined Function Buttons: Yes
- RotoMenu™ Control: Yes
- Pivot Angle: Yes
- Handles/Rack Ears: Yes
- Power:
- Voltage: 12 VDC
- Consumption: 3.0A @ 12VDC (36 W)
- Power Switch: Yes
- Connector: 4-Pin XLR Connector
- Compliance: CE approved
- Environmental:
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -14° F to120° F (-20°C to 50°C)
- Rack Unit dimensions (WxHxD): 17.15" x 10.45" x 2.00"
- Weight (Main Body): 7 lbs
- Vesa Mount: 75mm
