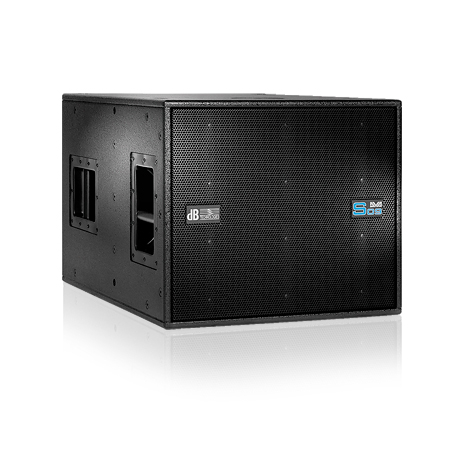

DB Technologies DVA S09 DP
Active 15" Band-Pass Subwoofer, Black

OUR PART #:  DVA-S09DP-BLACK

The DB Technologies DVA S09 DP is a A remarkably compact 15" subwoofer in a band-pass design, the DVA S09 DP delivers true, tight, and punchy bass response.
Learn More
Our Price: $2,099.00
List Price: $2,600.00
You save 19%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies DVA S09 DP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DB Technologies DVA S09 DP is a A remarkably compact 15" subwoofer in a band-pass design, the DVA S09 DP delivers true, tight, and punchy bass response.

With a height of just 44 cm, it can be flown above DVA T4 modules to keep the rig's footprint inconspicuous. The S09 comes with two features that make it the perfect base for a high-quality satellite system, for example, when paired with the DVX D10. One is an integrated active stereo crossover with two cutoff frequencies to choose from, 90Hz and 120Hz. The other is a phase inversion switch. One PowerCon socket connects to the mains power supply, while two PowerCon outputs connect satellites.

DB Technologies DVA S09 DP Features:

  • Variable crossover frequencies
  • Precise limiter functions
  • On board delay for perfect time alignment
  • Preset for configuring cardiod systems
  • Settings accessible via rotary encoder
  • X-over out

DB Technologies DVA S09 DP Specifications:

  • Technical Data:
    • Speaker Type: Active Bandpass Subwoofer
  • Acoustical data:
    • Frequency Response [+/- 3dB]: 45 - 120 Hz
    • Max SPL: 134 dB
    • Directivity: Omnidirectional
    • LF: 15 "
    • Voice Coil LF: 4 "
  • Amplifier:
    • Amp Technology: Digipro┬«
    • Amp Class: Class D
    • LF Amp: 1000 W RMS
    • Cooling: Convection
  • Processor:
    • Ctroller: Analog (Stereo
    • Phase: 0, 180 ┬░
    • Limiter: RMS, Peak, Thermal
    • Delay Option: NO
    • Crossover Frequency LF-MF: 90, 120 Hz
    • LF-Xover out slope: 24 dB/Octave
  • Mechanics:
    • Housing: Multiplex plywood
    • Housing Design: Rectangular
    • Color: Black, White
    • Handles: 2x Side
    • Pole Mount: 1x M20
    • Rigging Points: 2xPick Points on top to fix, DRK10/20 rigging frames
    • Accessory: Wheels 100mm, Dust Cover, Rain Cover
    • Dimensions (W x H x D): 20.6 x 17.6 x 29.8 in (515 x 440 x 720 mm)Weight: 37.5 kg (82.67 lbs)
