The Light Source MSCB-1/2CS
Mega Slim 1/2" Countersunk Coupler in Black

OUR PART #:  MSCB-1/2CS

The Mega Slim Coupler from The Light Source, is a lower profile option for smaller light fixtures.
Learn More
Our Price: $16.93
List Price: $20.50
You save 17%!
Write the first review.

Related Products

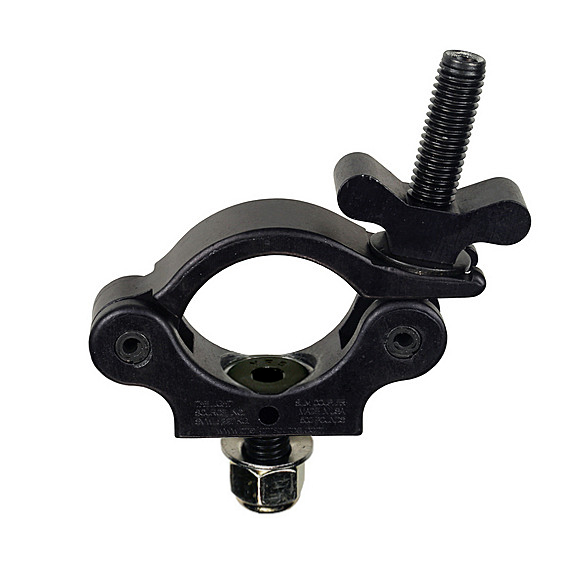

The Mega Slim Coupler from The Light Source, is a lower profile option for smaller light fixtures. It's half the size of the standard Mega-Coupler, and weighs 30% less; yet fits the same as the Mega-Coupler. This particular model is the MSCB-1/2CS with black anodized finish, and featuring a 1/2" Flat Head Countersunk Bolt.

The Mega Slim will fasten from 1-1/4" pipe (1.66 OD) to 2.050 OD Truss Tube. It has a wide wing nut for easy fastening of the coupler to the pipe or tube as well as a pocket for the 1/2" bolt. It includes the 1/2" zinc plated bolt along with nylock nut and spring washer, with the bolt fitting flush into the Coupler unit.

The Light Source Mega Slim Coupler MSCB-1/2CS Specifications:

  • Minimum Size: 1.25" pipe, 1.66 OD pipe
  • Maximum Size: 1.5" pipe, 1.90 OD pipe, 2.050" OD Truss Tube
  • Safe Vertical Working Load: 500 lbs
  • Hardware:
    • 1/2" Counter Sunk Bolt
    • Belleville Washer
    • Nylock Nut
  • Weight: 0.65 lbs.
  • Case Quantities: 24
