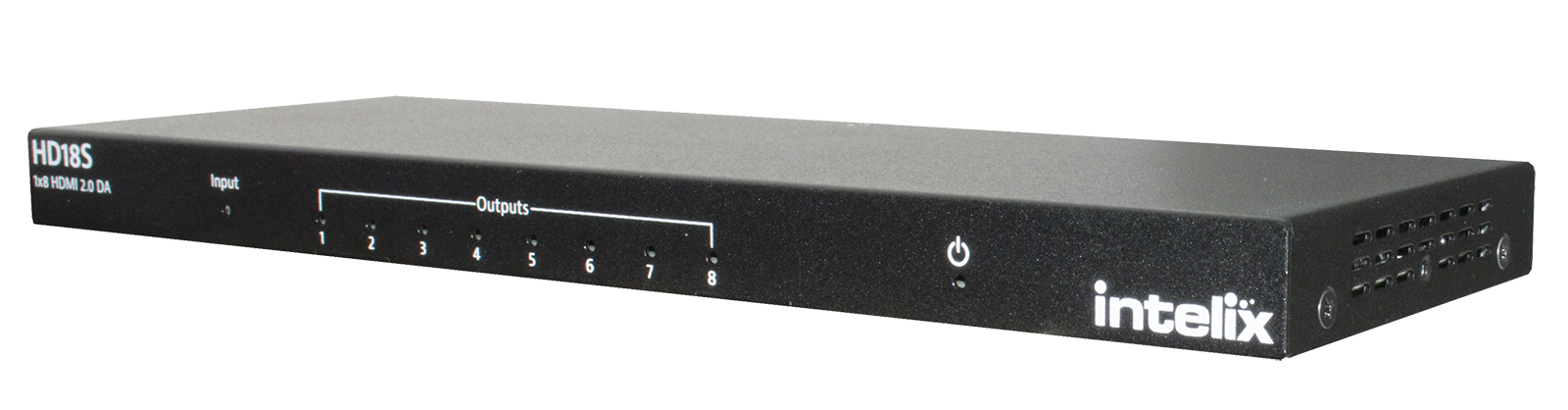

Intelix HD18S
1x8 HDMI 2.0 Distribution Amplifier

OUR PART #:  HD18S

The Intelix HD18S is a 1x8 HDMI splitter with HDMI 2.0 and HDCP 2.2. capability. The HD18S supports data rates up to 18Gbps and resolutions of 4K2K @ 60Hz (4:2:0).
Learn More
Our Price: $479.95
List Price: $499.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix HD18S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix HD18S is a 1x8 HDMI splitter with HDMI 2.0 and HDCP 2.2. capability. The HD18S supports data rates up to 18Gbps and resolutions of 4K2K @ 60Hz (4:2:0). The HD18S features EDID management which provides multiple EDID options for various resolutions output and HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content for the display.

The Intelix HD18S includes input cable equalization and signal regeneration compensation, which reduces the need for additional signal conditioning equipment by compensating for signal loss when using long input cables or cascading multiple units.

NOTE: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.

Applications:

  • HDMI signal distribution to multiple displays
  • Digital Signage and retail display management
  • Restaurant and bar, office wait areas

Intelix HD18S Includes:

  • Installation guide
  • Power supply
  • Mounting “L” brackets (2 ea)
  • Mounting screws (2 ea)
  • 3 pole RS232 connector

Intelix HD18S Features:

  • 1x8 HDMI distribution amplifier/splitter
  • 4K, HDMI 2.0, HDCP 2.2 compliant
  • Adjustable EDID management
  • Field firmware upgradeable
  • Locking power supply
  • Includes mounting hardware

Intelix HD18S Specifications:

  • I/O Connections:
    • HDMI Input: One (1) HDMI Type A Receptacle
    • HDMI Outputs: Eight (8) HDMI Type A Receptacle (1 per output)
  • Supported Audio and Video:
    • Maximum Data Rate: 18 Gbps
    • HDTV Video Resolutions: 480p, 576p, 720p, 1080i, 1080p, 4Kx2K @30Hz, 4Kx2K @60Hz (4:2:0)
    • VESA Video Resolutions: Up to 1920x1200
    • Embedded Audio Compatibility: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Maximum Passive HDMI Distance: 16 ft (5m)
    • Compliance: HDMI 2.0, HDCP 2.2
    • Maximum Pixel Clock: 600MHz
    • Input DDC Signal: 5V
  • Chassis and Environmental:
    • Enclosure: Painted Aluminum
    • Dimensions (W x H x D): 10.11" x 3.54" x 0.70" (257 mm x 90 mm x 18 mm)
    • Shipping Weight: 1.27 lbs (0.58 kg)
    • Operating Temperature: +32° to +113° F (0° to +45° C)
    • Operating Humidity: 10% to 90%, Non-condensing
    • Storage Temperature: -4° to +140° F (-20° to +70° C)
    • Storage Humidity: 10% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • Maximum Power Consumption: 1080p: 8 W (max) / 4K: 12 W (max)
    • Power Supply Input Voltage: 100-240v AC at 50/60 Hz at 0.45A
    • Power Supply Output Rating: DC 12V 1.5A
    • ESD Protection: 8kV
    • Device Regulatory: CE, RoHS
    • Power Supply Regulatory: CE, FCC
  • Other:
    • Warranty: 2 years
    • Diagnostic Indicators: Power LED, Input LED, Eight (8) Output Status LEDs
