Product Overview

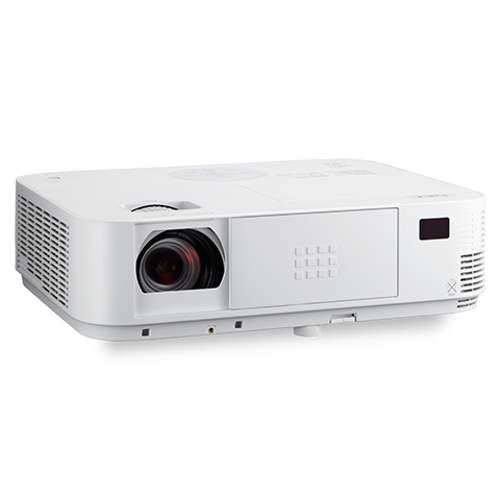

The NEC Visual Systems NP-M403H M Series projectors using the latest DLP(R) technology from Texas Instruments provide all the essential features that you need to connect with your audience. The 4000-lumen, 1080p (1920 x 1080) native resolution NEC M403H is ideal for education and small-to-medium-sized business environments that need essential features, including bright images, automatic technologies and eco-friendly appeal. The M403H offers lamp life up to 8,000 hours and a high contrast ratio of up to 10,000:1, while Crestron Roomview aids in emergency messaging. The versatile, color-coded connections to various sources aid in classroom and conference room use, including those in healthcare environments where its DICOM Simulation technology can be utilized. AutoSense(TM) intuitively syncs the projector with most computer signals and features one touch optimization. The environment is kept in mind with ECO Mode™ technology, a carbon savings meter, extended filter life, and energy-saving features such as quick startup and direct power off.
NEC Visual Systems NP-M403H Includes:
- Remote control
- Batteries
- Power cord
- RGB signal cable
- Built-in Lens cover
- User manual
- Quick Start Guide
- Product registration card
- CD-ROM
- Carrying case
NEC Visual Systems NP-M403H Features:
- Dual HDMI inputs ensure quick switching between inputs
- USB Viewer allows you to present without a PC using a USB flash drive
- Powerful 20W speaker provides volume needed for large rooms
- ECO Mode™ technology helps extend lamp life and lowers power consumption
- Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
- Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
- Full 3D capability up to 1080p at 144Hz
- Filter free with shielded engine eliminates the hassle and time spent monitoring and/or changing filters
- Automatic keystone correction
- Wireless LAN (Optional)
- Active Lens Cover
- USB Viewer
- Cornerstone - available using geometric correction software
- Geometric Correction
- 6000 hour Filter Life
- Auto power on
- ECO Mode technology
- Closed captioning
- Variable audio out
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
NEC Visual Systems NP-M403H Specifications:
- Display Technology: DLP (0.65" DMD)
- Light Output(Lumens): 4000 normal
- Resolution:
- Native: 1080p 1920 x 1080
- Maximum: WUXGA 1920 x 1200
- Contrast Ratio (up to): 10,000:1 with auto iris
- Lamp Type: 270W AC / 162W eco
- Lamp Life (up to): 3500 hours normal / 8000 hours eco
- Screen Size (diagonal): 30" to 300" (0.76 to 7.6m)
- Throw Ratio: 1.2 – 2.04:1
- Projection Distance: 2.4 to 46.3 ft. (0.74 to 14.1m)\
- Projector Angle:
- Tele: 9.9 to 10.5°
- Wide: 16.9 to 18.3°
- Lens:
- Zoom: 1 to 2.01
- Focus: Manual
- F number, fnumber: F=2.4 to 3.2, f=18.0 to 30.6mm
- Keystone Correction: +/- 25° horizontal, +/- 30° vertical
- Supported Video Standards: NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
- SD/HD Video Signal Compatibility: Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
- Macintosh Compatibility: Yes
- Audio: 20W speaker
- Electrical:
- Power Requirements: 100-240V AC, 50/60 Hz
- Input Current: 3.9A/1.2A
- Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 336W / 221W / 2.5W / 0.2W
- Mechanical:
- Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
- Dimensions (WxDxH): 14.5" x 11.5" x 4.3" (368 x 292 x 108mm)
- Net Weight: 7.7 lbs. (3.5 kg)
- Fan Noise: 36 dB normal / 30 dB eco
- Regulations: USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
- Environmental:
- Operating Temperature: 41°-104°F (5°-40°C)
- Humidity: 20-80% non-condensing
- Storage: -14°-122°F (-10°-50°C)
- Limited Warranty: 3 years. Lamp warranty is 1 year or 500 hours,whichever comes first
