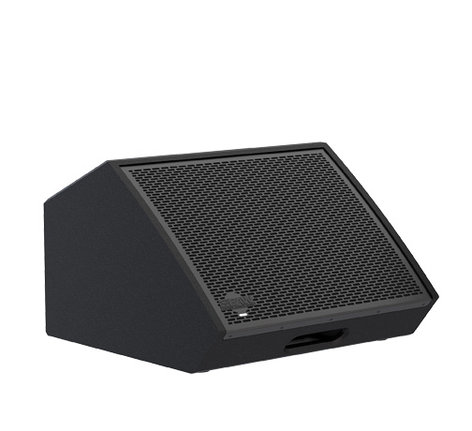

EAW-Eastern Acoustic Wrks RSX12M
12" Touring Stage Monitor


The EAW RSX12M is a stage monitor.
Learn More
Our Price: $1,870.00
Write the first review.
EAW-Eastern Acoustic Wrks RSX12M
In Stock

Related Products

The EAW RSX12M is a stage monitor. The RSX12M is equipped with onboard bi-amplified electronics (500W per channel) featuring technologies such as Focusing™ and DynO™ for a pristine impulse response at any output level. A 12" vented cone with 2.5" voice coil drives the low end while a 1" x 1" exit, 1.77" voice coil compression driver handles HF, oriented in a coaxial configuration. The RSX12M offers a uniform coverage pattern of 105° x 105°. Additionally, system latency is a remarkably low 2.6 milliseconds for excellent transparency in vocal monitoring applications.

EAW RSX12M Specifications:

  • Operating Range (-10 dB, Hz): 50 Hz to 20 kHz
  • Calculated Maximum Output Peak (dB SPL): 130 dB
  • Nominal Coverage (degrees): 90° x 90°
  • Subsystems:
    • LF: 1 x 12 in cone, 2.5 in voice coil, vented
    • HF: 1 x 1 in exit, 1.8 in voice coil  compression driver, coaxial-loaded
  • Amplifier Power: 2x 500W
  • Weight (lb. / kg): 35 / 16
  • Dimensions (imperial / metric): 19  x 19 x 13 / 501 x 489 x 333
