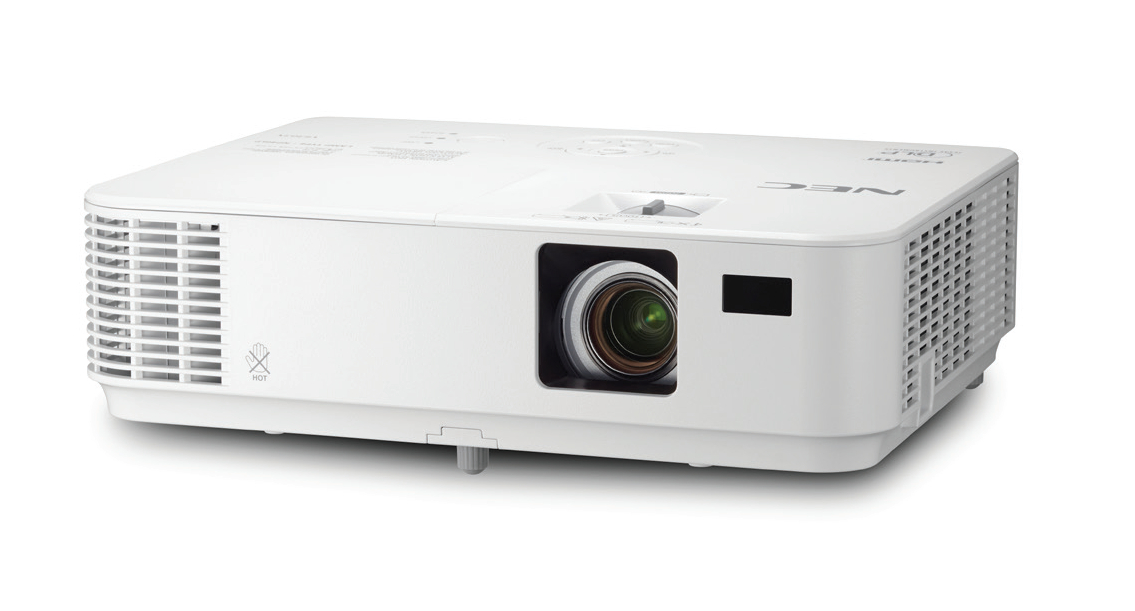

Product Overview
The NEC VE303X is a XGA native resolution 3000-lumen portable projector that's designed to provide high brightness for small-to-medium-sized businesses, education environments, corporate conference rooms, and mobility applications where strong ambient light is present but the situation requires a small projector. It's a lightweight model that is affordable and includes essential features, such as 3D Ready technology, high-contrast images, and a 2W speaker. Its automated technologies—from Auto Power On and quick startup/shutdown to a lamp life up to 6000 hours—make it an eco-friendly choice. The VE303X offers the Intelligent Driving Scheme (IDS2) for increased lamp life and contrast.
NEC VE303X Includes:
- VE303X unit
- Remote control
- Batteries
- Power cord
- RGB signal cable
- User manual
- Quick Start Guide
- Product registration card
NEC VE303X Features:
- Automatic Power ON via RGB (15-pin) input
- BrilliantColor™ provides accurate color reproduction
- Built-in wall color correction with blackboard setting
- Filter-free design reduces maintenance
- Optical and digital zoom
- Closed captioning
- 3-D display capable
- Vertical keystone correction
- Control of projector from PC using Virtual Remote Tool and PC ControlUtility
- Quick startup/cooling/shutdown minimizes projector setup and teardown timebetween meetings
- ECO Mode™ technology helps extend lamp life and lowers power consumption
- Compact size and lightweight design simplify transport
NEC VE303X Specifications:
- Manufacturer code: NP-VE303X
- Optical:
- Display Technology: DLP (0.55" DMD)
- Light Output(Lumens): 3000 normal
- Resolution:
- Native: XGA 1024 x 768
- Maximum: 1080p 1920 x 1080
- Contrast Ratio (up to): 10,000:1 with Dynamic Contrast
- Lamp Type: 195W AC, 160W in Eco-mode
- Lamp Life (up to): 4500 hours normal / 6000 hours eco
- Screen Size (diagonal): 30" to 300" (0.76 to 7.6m)
- Throw Ratio: 1.95 to 2.15
- Projection Distance: 3.9 to 43 ft (1.2 to 13.1m)
- Projector Angle: 12.8° tele / 14° wide
- Lens:
- Zoom: 1 to 1.1
- Focus: Manual
- F number, fnumber: F=2.41 to 2.55, f=21.8 to 24mm
- Keystone Correction: +/- 40°
- Signal Compatibility/Connectivity:
- Synchronization Range:
- Horizontal (Analog/Digital): 15-100 kHz
- Vertical (Analog/Digital): 50-120 Hz (24Hz Blu-Ray, 24P)
- Supported Video Standards: NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
- SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- PC Signal Compatibility: SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
- Macintosh Compatibility: Yes
- Input/Output Terminals:
- RGB1 (analog): VGA 15-pin D-sub, Component video using ADP-CV 1E
- RGB2 (digital): HDMI(MHL) with HDCP
- Video 1: RCA
- Audio 1: 1/8" stereo
- Audio: 2W speaker
- External Control: RS-232, IR
- Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
- Electrical:
- Power Requirements: 100-240V AC, 50/60 Hz
- Input Current: 2.5A / 1.1A
- Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 237W / 198W / 0.3W
- Mechanical:
- Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
- Dimensions (WxDxH): 12.6" x 9.8" x 4.0" (324 x 250 x 101mm)
- Net Weight: 5.8 lbs. (2.6 kg)
- Fan Noise: 34 dB normal / 30 dB eco
- Regulations: USA UL60950-1 FCC Part 15 Class B, Canada CSA60950-1, NOM
- Environmental:
- Operating Temperature: 41°-104°F (5°-40°C)
- Storage: -4°-122°F (-20°-50°C)
- Limited Warranty: 2 years. First year Instacare Service. Lamp warranty is1 year or 500 hours, whichever comes first
- Additional Features:
- AutoSense
- Built-in wall color correction
- Advanced AccuBlend
- Kensington lock slot
- Image magnification
- Auto Power On
- Sleep timer
- Closed Captioning
- Virtual Remote
- ECO Mode technology
- Discreet source keys
- Direct power-off
- BrilliantColor
- Carbon savings meter
- 3D ready
