Whirlwind W1266A
2 Conductor, 22 AWG Audio Cable, Priced by the Foot

OUR PART #:  W1266A-COLOR-BY-FOOT

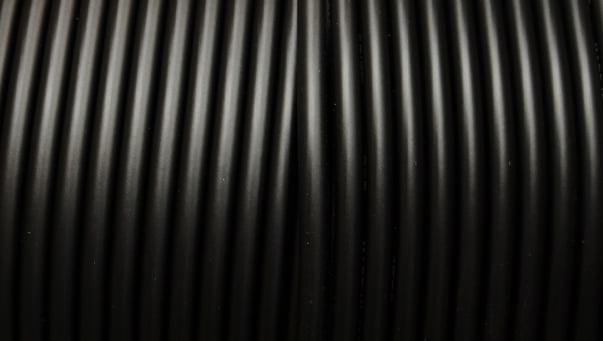

Whirlwind's W1266A is an audio cable with two 22 AWG conductors and polypropylene insulation.
Learn More
Selected Model Price: $0.33
List Price: $0.38
Save up to 13%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Whirlwind W1266A
Select model: (shipping times are approximate)
Qty:

Similar Products

Whirlwind's W1266A is an audio cable with two 22 AWG conductors and polypropylene insulation.

Whirlwind W1266A Audio Cable Specifications:

  • Number of Conductors: 2
  • Conductor Gauge: 22
  • Conductor Stranding: 7x30
  • Shield Type: Foil
  • Shield Coverage: 100%
  • Overall Diameter: 0.145"
  • Nominal Cap. (conductor to conductor): 30 pf/ft
  • Nominal Cap. (conductor to shield): 54 pf/ft
  • Jacket Thickness: 0.020"
  • Insulation Thickness: 0.010"
  • Weight per 100 ft: 1.57 lbs
