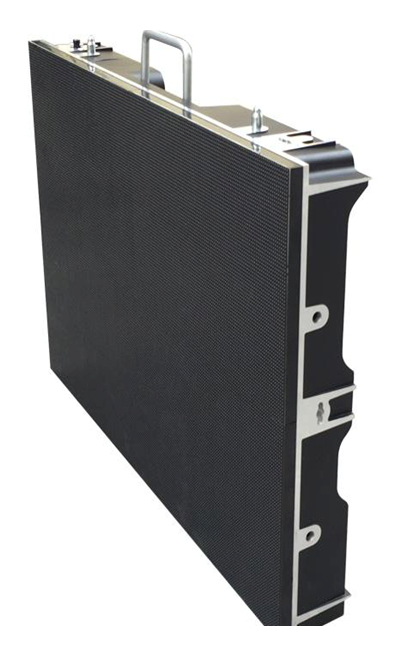

Vanguard LED Displays TUNGSTEN P3.91
1.64 x 1.64 ft Indoor LED Screen with 3.91mm Pixel Pitch


The Tungsten Indoor LED screen series is VANGUARD's aluminum die-cast cabinet design, with this model...
Learn More
Our Price: $1,002.30
List Price: $1,542.00
You save 35%!
Write the first review.
Vanguard LED Displays TUNGSTEN P3.91
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Tungsten Indoor LED screen series is VANGUARD's aluminum die-cast cabinet design, with this model, the P3.91 having a pixel density of 65410 dots/m2 and a pixel pitch of 3.91mm. The Tungsten series cabinet is designed to fulfill the rigorous demands of the rental industry.

VANGUARD Tungsten P3.91 LED Screen Features:

  • Sleek & Slim design: The cabinet is slim and features a smooth-edged design that allows you to handle the cabinet safely.
  • Innovative handle: The handle is unique, easy to grip and wide for easy transport.
  • LCD Display: The rear box of the cabinet has an LCD display that shows voltage, temperature, cabinet usage for each time used and total hours of usage. Power and signal lamps indicate cabinet status.
  • Dual data connection: There is an optional data connecting port under the cabinet. You can use this port if the primary one fails.
  • No data & power cables: Everything is connected with pin type sockets. Cable free design makes it quick for installation and stable in data/power transmission.
  • Strong Locks for hanging installation: The cabinet locks have smooth edges, for easy handling. The cabinets are very strong, which allows you to hang up to 20 cabinets vertically.
  • Easy ground installation: Special structural design allows you to install the screen on the ground without any tools.
  • Fast assembling & disassembling: No tools are required for installation of screen.

VANGUARD Tungsten P3.91 LED Screen Specifications:

  • Module Specification:
    • Pixel Pitch: 3.91mm
    • Pixel Density: 65410 dots/m2
    • Pixel Configuration: 1R1G1B, SMD 3-in-1 2727 black face LED
    • Pixel Quantity (W x H): 64 x 64 Pixels
    • Module Size: 9.84" x 9.84"
  • Cabinet Specification:
    • Pixel Quantity (W x H): 128 x 128 pcs
    • Cabinet Size (W x H x D): 19.7" x 19.7" x 3.3"
    • Module Configuration (W x H): 2 x 2 pcs
    • Power Consumption:
      • 100W Average
      • 200W Max
    • Material: Aluminum
    • Cabinet Weight: 21 lbs./pc
    • IP Rating: IP31
  • Screen Specification:
    • Pixel Quantity (W x H): 128 x 128 pixels
    • Dimension (Ft.) (W x H): 1.6 x 1.6 ft.
    • Screen Diagonal Length:
      • Feet-2.3
      • Inches-27.8
    • Cabinet Configuration (W x H): 1 x 1 pcs
    • Brightness: 800 nits
    • Driving Method: 1/16 scan
    • Connectors (Power/Data): Neutrik
    • Minimum Viewing Distance: 13ft
    • Power Consumption:
      • 100W Average
      • 200W Max
    • Power Requirements:
      • 208v 20amp - 1 Circuits
      • 110v 20amp - 1 Circuits
    • Total Weight of Cabinets: 21lbs.
    • Input Voltage: AC240V -AC110V @ 50-60Hz
    • Power Cascade Quantity:
      • 18pcs @ 208v
      • 10pcs @ 110v
    • Heat Load in BTU:
      • Average 192 BTU
      • Max 383 BTU
    • Number of Data Runs Required: 1
    • Hanging Cabinet Quantity: 15pcs
    • Refresh Frequency: =2400Hz
    • Frame Frequency: 60Hz
    • Gray Scale: 16bits
    • Life Span: >100,000 hours
      • Operating Temperature: -4°F~122°F (-20°C~50°C)
      • Storage Temperature: -4°F~122°F (-20°C~50°C)
    • Operating Humidity: 20%~90%RH
    • Input Signal: DVI, HDMI
    • Communication Cable:
      • CAT5: 328.08 ft (=100m)
      • Optical Fiber: 1640.4 ft-49212.6 ft (500m-15000m)
