The Light Source MTD20.5/2-12/3

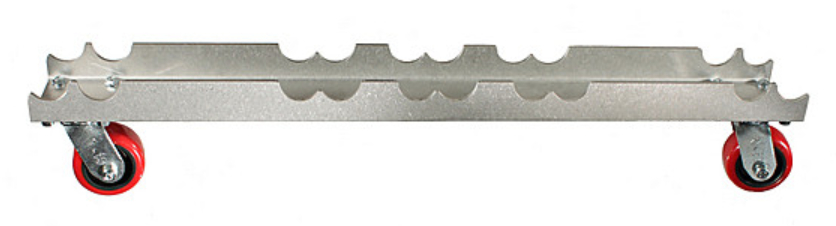

Mega-Truss Dolly for Two 20.5" or Three 12" Truss (41" Long) in Silver

OUR PART #:  MTD20.5/2-12/3

The Mega-Truss Dolly from the LIght Source easily holds truss for transport or storage.
Learn More
Our Price: $277.20
List Price: $360.00
You save 23%!
Write the first review.
The Light Source MTD20.5/2-12/3
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Mega-Truss Dolly from the LIght Source easily holds truss for transport or storage. This model, the MTD20.5/2-12/3 is designed for (2) 20.5" or (3) 12" Truss (41" Long) and it comes in the color of Silver.

The 5" aluminum C channel has CNC milled cutouts for truss to ride in. It is important to secure the trusses tightly to the Mega-Truss Dolly with an E-Clip ratchet strap before moving. The two 4" × 2" heavy duty castors are rated for 480 pounds each. A pair of Mega-Truss Dollies will carry up to 1900 total pounds of truss. Mega-Truss Dollies are available in a variety of sizes, with additional sizes available upon request. Dollies are sold as a set (pair).

For greater utilization of your Mega-Truss Dolly you might want to consider ordering the following optional gear: E-Clip ratchet straps and Mega-Couplers (which hold the bottom truss directly to the Mega-Truss Dolly.

Light Source MTD20.5/2-12/3 Mega-Truss Dolly Specifications:

  • Safe Vertical Working Load: 960 Pounds per dolly
  • Hardware: Encore 4" × 2" 480 pound rated casters each secured with 4 each 3/8" × 3/4" grade 5 Hex head cap screws and serrated hex flange nuts.
  • Dimensions:
    • U Channel is 5" W x 2.5" T x 1/2" Wall
    • Weight: Avg. 26 pounds each pair
  • Case Quantities: per pair
