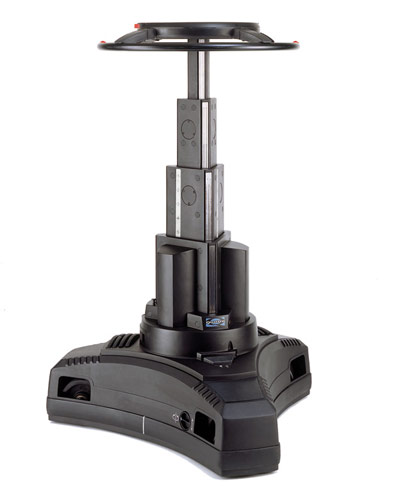

Vinten Quattro-L Pedestal
4-Stage Studio Pedestal, Black

OUR PART #:  V3852-0003

Vinten's Quattro-L is a unique and innovative four-stage pedestal with an extensive range of benefits for today's camera operator.
Learn More

Call for price! Not available online.
List Price: $49,995.00

Similar Products

Vinten's Quattro-L is a unique and innovative four-stage pedestal with an extensive range of benefits for today's camera operator.

The Quattro-L studio pedestal provides an extensive height range and the opportunity to achieve lower angle shots, as well as an impressive on-shot stroke of 39.4" (100 cm).

A revolutionary pneumatic design ensures that the Quattro-L provides Perfect Balance throughout its four stages of elevation, ensuring that it offers the exact support required for the camera operator to raise and lower the camera with minimal effort.

Vinten Quattro-L Pedestal Features:

  • Innovative low volume and low pressure pneumatics
  • Perfect Balance provides fingertip control and reduces operator fatigue
  • 39.4" (100 cm) on-shot stroke allows greater shot creativity
  • Quiet operation minimizes set noise levels

Vinten Quattro-L Pedestal Specifications:

  • Model Number: V3852-0003
  • Max. Capacity (includes trim weights): 231.5 lbs (105 kg)
  • Height Range: 18.2" to 58.7" (46.2 to 149 cm)
  • Weight: 348.4 lbs (158 kg)
  • On-Shot Stroke: 39.4" (100 cm)
  • Tracking Width: 42.1" (107 cm)
  • Transit Width: 36.4" (92.4 cm)
  • Wheel Diameter: 6.3" (16 cm)
  • Detachable Steering Ring Diameter: 29" (74 cm)
  • Trim Weights: 16.5 lbs (7.5 kg)
  • Ground Clearance: 1.1" (2.8 cm)
  • Color: Black
