Roland System Group M300BAS
V-Mixer and Snake Bundle

OUR PART #:  M300BAS

The Roland M300-BAS is a 28 x 18 digital mixing system.
Learn More
Our Price: $4,895.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Roland System Group M300BAS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

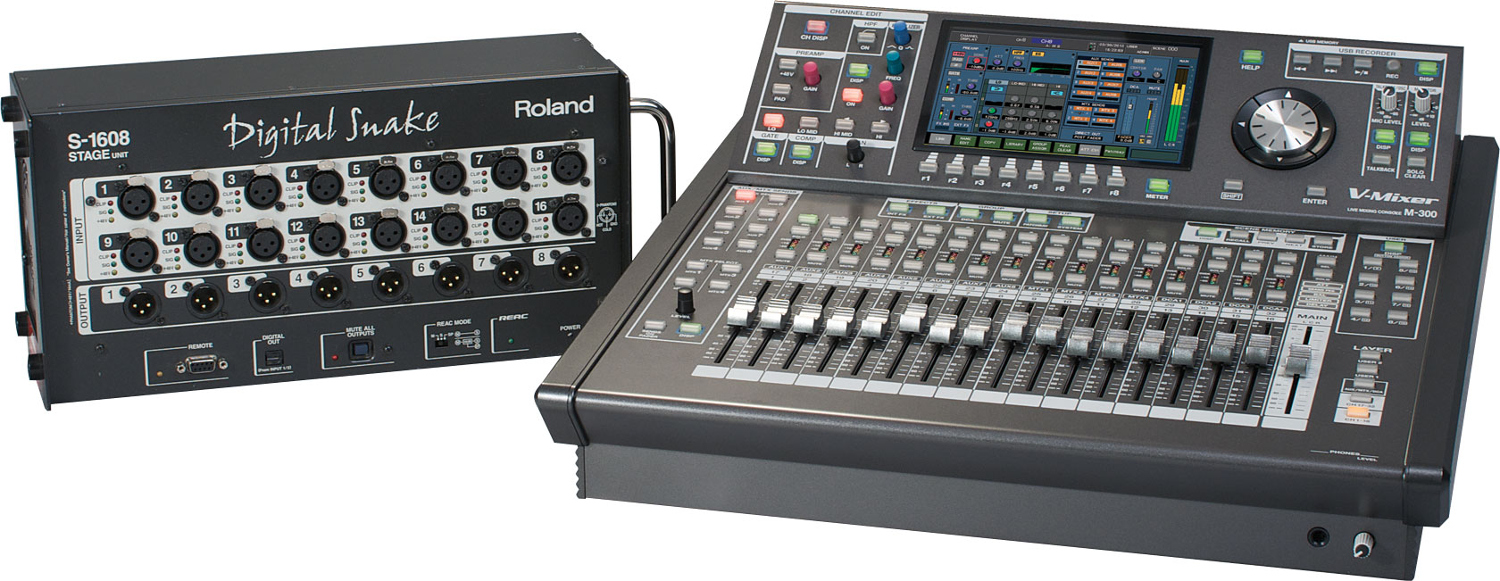

The Roland M300-BAS is a 28 x 18 digital mixing system. This configuration is a rock solid basic configuration delivering ability to pull from 28 inputs and send to up to 18 outputs if needed. The system consists of the M-300 32-Channel V-Mixer and one S-1608 Digital Snake head.

The M-300 V-Mixer is a 32-channel console that possesses many of the powerful features and extensive benefits of the award-winning M-400 and M-380 V-Mixers - but in a very compact format. The M-300 provides another console choice in the growing V-Mixing System that also consists of Digital Snakes, Personal Mixing and Multi-Channel Recording. Its size and affordability allows smaller to mid-sized venues to replace their analog consoles with a digital mixing solution. The M-300 is ideal for any event production, houses of worship, schools, government and corporate applications.

The S-1608 Digital Snake is a compact version of the popular S-4000 Digital Snake System. Easy to use and quick to install, the S-1608 Digital Snake System is a small format audio snake solution that offers the highest quality audio signal available in a portable snake system. The S-1608 Digital Snake system is ideal for bands, corporate A/V events, seminars, rental and staging houses, Houses of Worship and broadcasters that need the best possible sound quality from their audio without the high frequency losses and bulk of an analog snake.

Roland M300-BAS Features:

  • 32 channels of digital mixing
  • 28 x 18 digital audio I/O and transport - perfect for the typical ensemble or band
  • Remotely placed and controlled I/O of 16x8

Roland M-300 Features:

  • 32 mixing channels, L/C/R outputs, 8 AUX buses, 4Matrices
  • 4-band PEQ and dynamics on all channels
  • 11 different built-in multi-effects/ PEQ and delay onall outputs
  • 24bit AD/DA for high-quality soundRemotelycontrollable from a PC
  • Record to /playback from USB flash memory
  • Perfectly integrates with the Digital Snake for simpleand high-quality audio transmission, distribution, splits and merging
  • Construct a flexible and powerful system by adding the Personal MixingSystem, multi-channel recording and other REAC components

Roland M-300 Specifications:

  • Processing: Number of Channels: 32 mixing channels/11buses/4 MATRIX buses/Up to 92 inputs and 90 outputs when using REAC Devices
  • AD/DA Conversion: 24-bit/48.0 kHz or 44.1 kHz
  • Display: 800 x 480 dots Wide VGA TFT color screen withbacklight
  • Power Supply: AC 115 V, 117 V, 220 V, 230 V, 240 V(50/60 Hz)
  • Power Consumption: 50 W
  • Dimensions (W x D x H): 18-9/16 x 19-1/16 x 7-11/16inches (470 x 483 x 195 mm)
  • Weight: 21 lbs 10 oz (9.8 kg)

Roland S-1608 Features:

  • 16 input x 8 output configuration
  • Compact, floor-based or rack-mountable design
  • High resolution 24 bit / 96 kHz audio quality
  • Remote controllable preamps using an S-4000R or freeRCS software
  • REAC low latency digital audio transmission system
  • Easy and affordable splits and recording options

Roland S-1608 Specifications:

  • Number of Channels: S-1608 : 16 in 8 out S-0816 : 8 in16 out
  • AD and DA Conversion: 24 bit / 96 kHz
  • Frequency Response: -2 dB / +0 dB (@ +4 dBu, 20 Hz to20 kHz)
  • Total Harmonic Distortion + Noise: 0.05 % or less (Pad:On, Input Gain: +4 dBu, 22Hz to 20 kHz)
  • Dynamic Range: 110 dB
  • Cross Talk: -80 dB or less (Input Gain: +4 dBu, typ.)
  • Nominal Input Level: -65 to -10 dBu (PAD: Off), -45 to+10 dBu (PAD: On) (1 dB step, Max. +28 dBu)
  • PAD: 20 dB On/Off
  • Input Impedance: 14 k ohms
  • Nominal Output Level: +4 dBu, Max. +22 dBu
  • Output Impedance: 600 ohms
  • Recommended Load Impedance: 10 k ohms or greater
  • Residual Noise Level (IHF-A, typ.): -80 dBu or less
  • Equivalent Input Noise Level: S-1608: -128 dB S-0816:-124dB
  • Network Latency: 375 microseconds when using REAC cableonly (*1) (AD > REAC > DA Latency: approx 1.2 ms)
  • Connectors: Analog Input x 16 (XLR type, balanced,phantom power) Analog Output x 8 (XLR type, balanced) Digital Output connectorx 1 (Optical type) REAC Connector x 1 (RJ-45 EtherCon type) Remote Connector x1 (RS-232C, DB-9 type)
  • Indicators: POWER Indicator x 1, REAC Indicator x 1,REMOTE Indicator x 1, MUTE ALL OUTPUTS Indicator x 1
  • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V,AC 240 V (50/60 Hz)
  • Power Comsumption: 45W
  • Phantom Power: +48 V / 14 mA (each input, remotecontrolled)
  • Operation Temperature: 0 to +40 degrees Celsius +32 to+104 degrees Fahrenheit
  • Accessories: Power Cord x 1, REAC Connector Cover x 1,Ferrite Cores x 1 Rubber Foot x 4, Rack Mount Kit x 1, Owner's Manual
  • Dimensions (W x D x H): 15-13/16 x 5-3/8 x 7inches (401 x 135 x 177 mm)
  • Weight: 12 lbs. 3 oz. (5.5 kg)
