164 ft Active Optical High-Speed Pluggable HDMI Cable, Plenum Rated


Kramer's CP-AOCH/XL is an Active Optical HDMI Cable for running 4K@60Hz 4:2:0 UHD, 4K@30Hz 4:4:4, over longer distances up to 100m (328 ft) in a simple and practical way.
Learn More
Our Price: $440.00
List Price: $550.00
You save 20%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

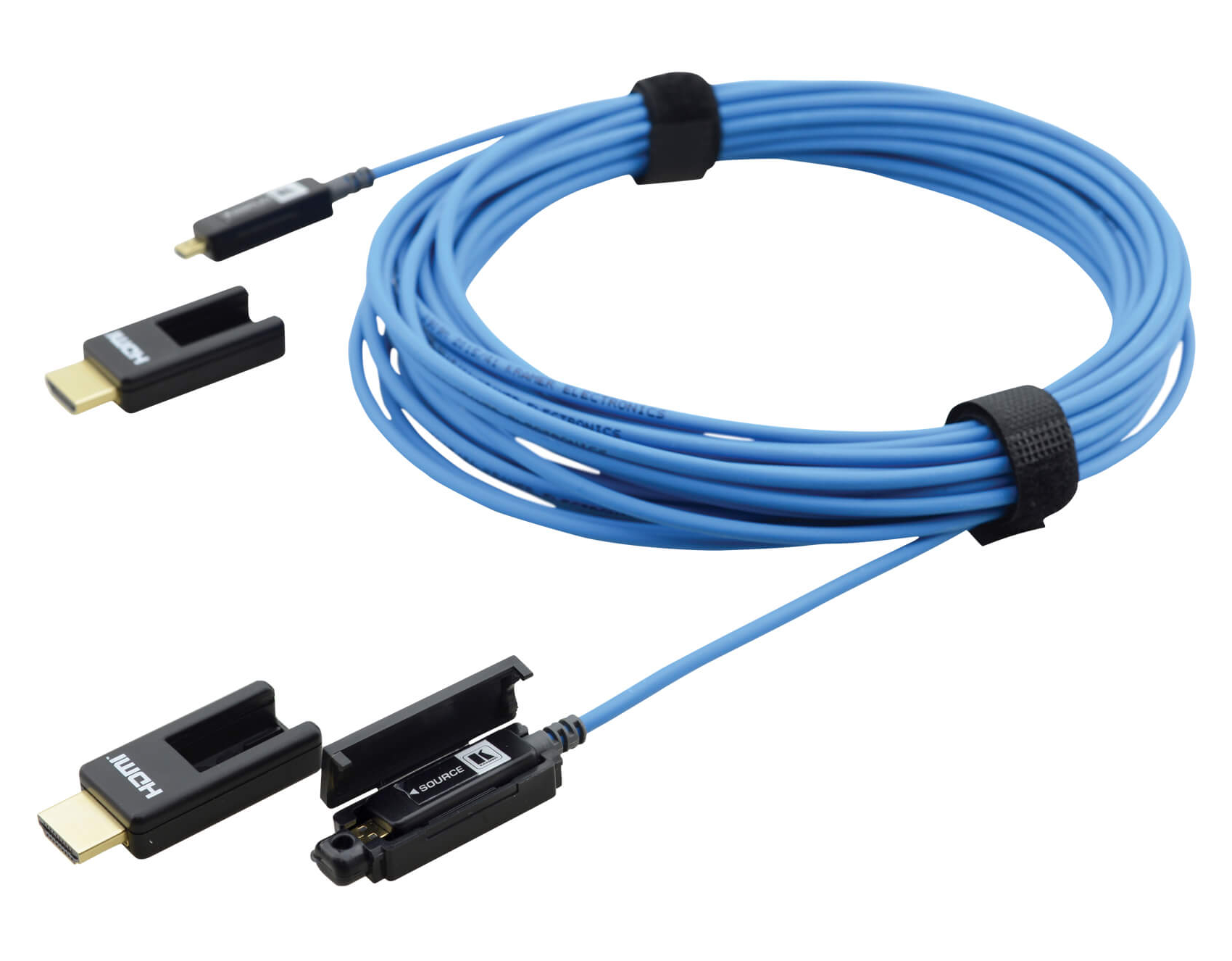

Kramer's CP-AOCH/XL is an Active Optical HDMI Cable for running 4K@60Hz 4:2:0 UHD, 4K@30Hz 4:4:4, over longer distances up to 100m (328 ft) in a simple and practical way. The HDMI ends of this hybrid-fiber cable quickly detach leaving a much smaller head that can be run through conduit or other tight spaces with the included pulling capsule. AOCH cables are thinner, lighter and more flexible than copper or even standard optical cables. They provide transparent EDID and HDCP support without signal attenuation. They also provide reduced risk of EMI and RFI interference to provide a great solution for critical AV installations that demand the highest signal integrity.

Kramer CP-AOCH-XL Active Optical Pluggable HDMI Cable Features:

  • Video Resolution: 4K@60Hz 4:2:0 UHD, 4K@30Hz 4:4:4 8Bit, full HD, 3DDeep Color across all lengths
  • High Data Transfer Rate: Up to 10.2Gbps
  • Embedded Audio: PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
  • High–Quality Connectors: 24K gold-plated, corrosion-resistant and bestpossible connectivity
  • EMI & RFI Immunity
  • No External Power: Powers the active units via the HDMI connector,consumes only 0.25W (50mA @ 5V)
  • Thin Construction: 0.13" (3.4 mm) diameter
  • Small Bending Ratio: Only 0.24" (6 mm)
  • Jacket Construction: Low smoke & halogen free or UL CMP-OF (Plenum)
  • RoHS 2011/65/EU Compliant

Kramer CP-AOCH-XL Active Optical Pluggable HDMI Cable Specifications:

  • Part Number: CP-AOCH/XL-164
  • Overall Specifications:
    • Video Resolution: 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, 8Bit, full HD, 3D Deep Color
    • Max. Data Rate: Up to 10.2Gbps
    • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601
    • Embedded Audio: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
    • HDMI Compliance: HDCP 2.2, EDID, CEC
  • Physical Specifications:
    • Connectors: Male HDMI Type D, 24K gold-plated
    • Cable Structure: Hybrid optical fiber cable
    • Fiber Optic: Multi-mode fiber
    • Conductors: 6x28AWG (7/0.127 mm)
    • Outer Sheath Material: LSHF or plenum
    • Outer Sheath Color: Blue
    • Outer Sheath Diameter: 3.4 mm
    • Cable Bending Radius: 6 mm
    • Connector Max. Pulling Strength: 22 lbs (10 kg)
    • Max. Compression Load Resistance: 500N (50 kg, 110 lbs)
  • Electrical Specifications:
    • Power Supply: No external power supply needed (draws current from the source). If source power is not sufficient, connect the AD-HM/HF/UAM USB to HDMI power injector (sold separately) to an external power source
    • Power Consumption: 0.25W max
  • Usage & Environmental Specifications:
    • Operating Temperature: +32ºF~+122°F (0ºC~+50°C)
    • Storage Temperature: –22ºF~+122°F (0ºC~+50°C)
    • Operating Humidity: 5 ~ 85%
  • Regulatory:
    • LSHF (Compliance): IEC 60332-1, IEC 60754-1, IEC61034-2
    • Plenum (Compliance): CMP-OF
    • RoHS: 2011/65/ EU
