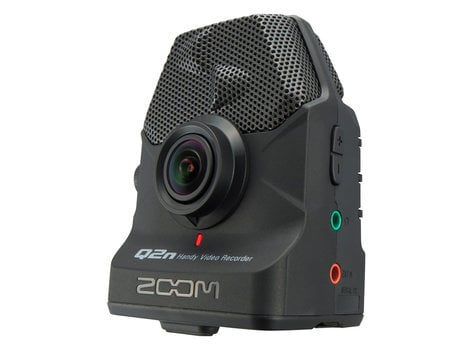

Zoom Q2n
Handy Video Recorder

For musicians looking for an ultimate camera option, Zoom offers the Q2n Handy Video Recorder. Video now plays an important role in helping you reach a wider fan base. It’s a digital world and that means an inspiring performance can take the Internet by storm. But you can’t capture your music with just any camera. You need one that records incredible audio.

NOTE: Some gear shown in photos above is sold separately. For more information on this and other products, please contact your Sales Pro.

The Zoom Q2n gives you a fast and easy way to create HD videos with high-impact audio. The built-in X/Y microphones capture sound with beautiful stereo imaging. And the 160° wide-angle lens excels in an array of lighting conditions—whether you’re filming at home, in a rehearsal space, or at a club. With the Q2n in hand, you can finally make videos that sound as great as they look—at a price more affordable than ever. The reason the Q2n sounds great? This portable camera is packed with high-resolution 24-bit/96 kHz audio that delivers studio-quality recording, no matter where you’re filming.  And the camera’s built-in X/Y microphones can handle sound pressure levels up to 120 dB SPL, for distortion-free recording.

And if looks are as important as sound, Zoom's Q2n has Ten "Scene" presets allow you to record in a wide range of environments, including low-light locations where this unit is designed to thrive. The presets range from "Concert Light" — which automatically adjusts for changing lighting conditions — to "Concert Lo-Lit" for dimly lit rooms. And there are scene settings tailored specifically for filming in jazz clubs and rehearsal studios, as well as outdoors.

The Q2n also features a 160° wide-angle lens that captures stunning video. And it records in 720p or 1080p HD resolution, using the same 24 fps or 30 fps frame rate used in film. An F2.0 aperture makes the Q2n perfect for musicians who perform in a wide variety of lighting environments. Capture the full band or focus on an individual performer using five field of view (FOV) settings. Plus, a color LCD screen makes it easy to create the perfect shot or review your videos.

Zoom Q2n Includes:

• User guide
• AA batteries
• Q2n Handy Recorder

Zoom Q2n Features:

• High-quality 160° wide-angle lens (F2.0/16.6 mm)
• 10 "Scene" options for use in different lighting environments, plus ‘Auto’ setting for automatically adjusting how the camera captures specific scene conditions
• Built-in X/Y stereo microphones capable of handling sound levels up to 120 dB SPL
• Can be used as standalone audio recorder, with data saved in WAV format, up to 24-bit/96 kHz
• 5 field of view (FOV) settings
• Records directly to micro SD/SDHC/SDXC cards up to 128GB for extended recording times
• Easy one-button recording
• Color LCD
• Support for two HD video modes, 720p and 1080p
• Video bitrates up to 24 Mbps for improved image quality
• Frame rates: 1080p/30fps HD, 1080p/24fps HD, 720p/30fps HD, 720p/24fps HD
• HDMI video output for connection to HDTVs, selectable between NTSC and PAL
• Records video (with audio) in MOV format
• Analog-style level control with onscreen level metering and 2-color status LCD on lens
• Auto Gain function automatic control over audio input level
• Stereo input for use with external devices plus support for plug-in power
• Headphone/line-level for fast audio monitoring
• Low-cut filter for the elimination of low-frequency noise and rumble
• USB interface for live streaming and data transfer
• Compatible with USTREAM Producer, Flash Live Media Encoder, Skype, and other popular streaming applications
• Webcam and USB mic function (with direct monitoring) when used with computers and iOS devices (Apple Camera Connection Kit or Lightning to USB Camera Adapter required for use with iOS devices)
• Operates with two AA batteries for approximately two hours
• Built-in standard tripod mount

Zoom Q2n Specifications:

• Recording media: micro SD/SDHC/SDXC cards (Class 10 or higher, up to 128 GB)
• Image sensor: 1/3" 3-megapixel CMOS sensor
• Lens:
  • F2.0, 160° FOV, fixed focus (36 cm – 8)
  • Focal distance approx. 16.6 mm (35 mm equivalent)
• Video format: MPEG-4 AVC/H.264 (MOV)
• Video resolutions and frame rates:
  • HD 1080p / 30 fps
  • HD 1080p / 24 fps
  • HD 720p / 30 fps
  • HD 720p / 24 fps
• Audio formats: WAV (24-bit/96 kHz, 24-bit/48 kHz, 16-bit/44.1 kHz)
• Audio functions: Lo-Cut filter (off, 80Hz, 120Hz, or 160Hz), Auto Gain
• Image functions: Five FOV (field of view) steps:(×0.75 / ×0.85 / ×1.00 / ×1.30 / ×1.50)
• Scene selection: (Auto / Outdoor / Sunset / Night / Concert Light / Concert Lo-Lit/ Concert Hall / Jazz Club / Dance Club /Rehearsal Studio / Garage)
• Power Save: (Off, 1, 3 or 5 minutes)
• Auto Power Off: (Off, 1, 3 or 5 minutes)
• Display: 1.77" full-color LCD (160 x 128)

INPUT: MIC

• Type: 120° X/Y stereo
• Maximum sound pressure input: 120 dB SPL
• Input gain: –8 to +39 dB

INPUT: EXTERNAL INPUT

• Input connector: Stereo mini jack
• Input gain: –8 to +39 dB
• Input impedance:
• 2 k ohms or more
• Supports plug-in power

OUTPUTS

• Output connector: Combined line/headphones stereo minijack
• HDMI connector: Micro Type D
• Built-in speaker: 400 mW 8 ohm mono speaker

USB: OPERATION AS MASS STORAGE

• Class: USB 2.0 High Speed

Note: Mass storage operations are supported with iOS devices. USB bus power supported.

USB: OPERATION AS AUDIO INTERFACE

• Class: USB 1.0 Full Speed
• Specifications: 44.1 kHz sampling rate, 16-bit

Note: Audio interface operations are supported with iOS devices. USB bus power supported.

USB: OPERATION AS WEBCAM

• Specifications: WVGA/720p video size, 48 kHz/16-bit audio

Note: USB bus power supported.

GENERAL

• Power supply: 2 AA batteries
• AC adapter: ZOOM AD-17, sold separately: DC 5V/1A
• Battery operation time:
  • About 2 hours or more (when recording 720p/30 fps video using alkaline batteries)
  • About 3 hours or more (when recording 720p/30 fps video using Ni-MH batteries)
• Maximum dimensions of main unit (DxWxH): 1.8" × 2.5" × 3.3"
• Weight: 0.2 lb
