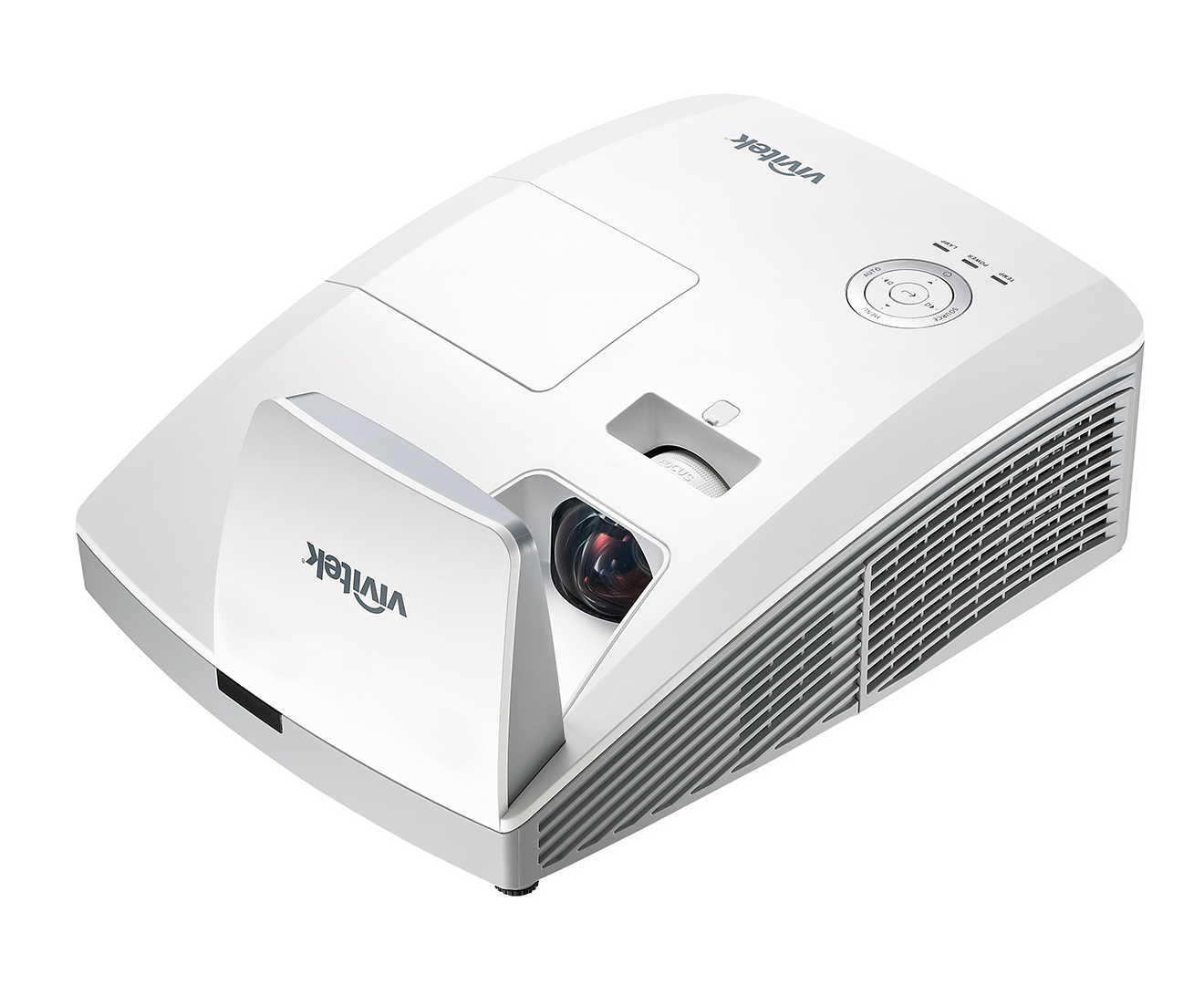

Vivitek DW756USTi
3300 Lumen WXGA Ultra-Short-Throw Projector with Built-in Pen Interactivity


The DW756USTi from Vivitek is an ultra short-throw interactive projector that delivers a large 80” to 100” diagonal image from a distance of ~11” to 17”.
Learn More
Our Price: $1,462.50
List Price: $2,250.00
You save 35%!
Write the first review.
Vivitek DW756USTi
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The DW756USTi from Vivitek is an ultra short-throw interactive projector that delivers a large 80” to 100” diagonal image from a distance of ~11” to 17”. The projector delivers a high bright 3,300 ANSI Lumens and an outstanding contrast ratio of 10,000:1 plus it offers a low cost of operation with lamp life up to 10,000 hours. The DW756USTi is complimented with full IWB functionality with IR pen support and 10-point finger touch interactivity with the optional finger touch DT02 Laser Curtain in an intuitive way with minimal set-up and on-going maintenance. Enhanced interactivity is assured with NovoScreenNote interactive software for MAC and PC. This model also offers Full 3D support.

Vivitek DW756USTi Includes:

  • DW756USTi Ultra-Short Throw Projector
  • AC Power Cord
  • VGA Cable
  • USB Cable
  • Remote Control
  • Interactive Pen (w/Battery) (x2)
  • USB Cable
  • Documentation Kit
  • Wall-mount arm
  • Projector mount bracket

Vivitek DW756USTi Features:

  • Brightness 3,300 ANSI lumens with a high 10,000:1 contrast ratio for bright defined and sharp images from single chip technology (no convergence required)
  • Native WXGA resolution (1280x800) and compatible up toWUXGA resolution (1920x1200)
  • Ultra Short Throw 0.35:1 T.R that delivers a large100” image from a distance of 23.7” to 29.8” (to mirror).
  • Connectivity options include: 2x HDMI v1.4 (1 w/MHL) and, 2x VGA-in, 1x VGA-out, microphone in, audio-in/audio-out, RJ-45 for projector status and control
  • Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX and Telnet
  • 3D compatibility with DLP® Link™ and HDMI 1.4b Blu-ray technology
  • WiFI compatible with NovoConnect/NovoPRO WirelessPresentation System for B.Y.O.D support of iOS, Android, PC, MAC andChromebook.
  • Feature rich interactivity and collaboration
  • Integrated audio speakers delivering 10W+10W (20W) for clear and loud audio enhancement
  • Interactivity:
    • Built-in IWB functionality with IR pen support allowing simultaneous writing/drawing
    • Optional finger touch DT2 Laser curtain module allowing up to 10 simultaneous finger-touch for writing/drawing
    • Easy to use automatic or manual calibration for interactivity set-up

Vivitek DW756USTi Specifications:

  • Display Type: Single 0.65”DLP® Technology by TI
  • Brightness: 3,300 ANSI Lumens
  • Native Resolution: WXGA (1280x800)
  • Maximum Resolution: WUXGA (1920x1200) @60Hz
  • Contrast Ratio: 10,000:1
  • Lamp Life and Type: 5,000 / 10,000 Hours (Normal/EcoMode), 230W / 200W
  • Throw Ratio: 0.35:1
  • Image Size (Diagonal): 80” - 100” (2032mm – 2540mm) Diagnol
  • Projection Distance: 23.74” to 29.68” (603mm-754mm) Typical to mirror.
  • Projection Lens: F=2.5, f=5.1MM
  • Zoom Ratio: Fixed
  • Aspect Ratio: 16:10 Native, 4:3, 16:9, 2.35:1 switchable
  • Offset (full image height): 120% Fixed
  • Lens Shift adjustent of 1.7%
  • Keystone Correction: +/-40°
  • Horizontal Frequency: 15, 31 – 91Hz
  • Vertical Scan Rate: 24 - 30Hz, 47 - 120Hz, Freemont, CA
  • Interactive Functionality: Yes (via Camera), pen based. (Finger Touch requires optional DT02 Laser Curtain Kit)
  • 3D Compatibility: Yes, DLP® Link™, HDMI 1.4b (Blu-Ray)
  • Audio: 2 x 10W, Total 20W.
  • Video Compatibility: SDTV (480i, 576i), EDTV (480p,576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M,N), SECAM (B, D, G, K, K1, L)
  • I/O Connection Ports: 2x HDMI v1.4 (1w/MHL), VGA-In (x2), S-Video, Composite, Audio-In RCA, Audio-In (Mini-Jack), VGA-Out, Microphone Jack, Audio-Out (Mini-Jack) variable, RJ45, RS-232, USB Power (5V,1.5A), USB (Service), Mini USB (Type B for IR Camera)
  • Security Solutions: Kensington® Security Slot, Security Bar, Keypad Lock
  • Dimensions (W x D x H): 11.3” x 14.7” x 4.9” (287.7 x374.5 x 122.6mm) (not including height of mirror)
  • Weight: 11 lb (5 kg)
  • Noise Level: 33dB/29dB (Normal/Eco. Mode)
  • Power:
    • Supply: AC 100-240V, 50/60Hz
    • Consumption: 290W (Normal Mode), 250W (Eco. Mode), <0.5W (Standby Mode)
  • Standard Warranty: 5 years P&L warranty, Lamp -1year/3500 hours whichever comes first, 3 year Advanced Exchange
  • Education Warranty: 5 years P&L warranty, 1year/3500 hrs on lamp, 5 years Advanced Exchange
  • Optional Accessories:
    • Laser Curtain Kit (DT02)
    • Replacement Lamp: 5811118004-SVV
    • NovoConnect Interactive and Collaborative BYOD module
