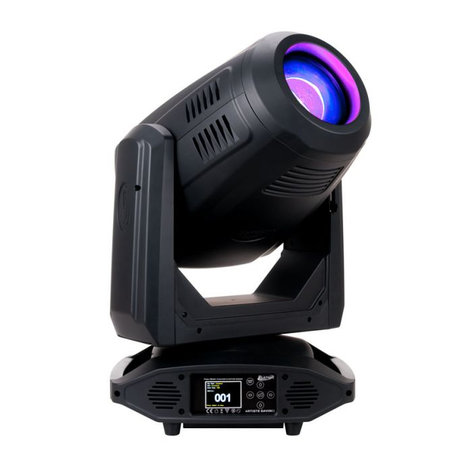

Elation Artiste DaVinci 270W LED Moving Head Spot with Zoom and CMY Color Mixing

OUR PART #: ARTISTE-DAVINCI MFR #: EAD582

Copied to clipboard

The Elation Pro Lighting Artiste Davinci™ delivers over 12,000 total lumens... ...Read more

Elation Artiste DaVinci 270W LED Moving Head Spot With Zoom And CMY Color Mixing Image 1
Elation Artiste DaVinci 270W LED Moving Head Spot With Zoom And CMY Color Mixing Image 2
Elation Artiste DaVinci 270W LED Moving Head Spot With Zoom And CMY Color Mixing Image 3
6dsiXm7nIWY
1 Video
Elation Artiste DaVinci 270W LED Moving Head Spot With Zoom And CMY Color Mixing
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Elation Pro Lighting Artiste Davinci™ delivers over 12,000 total lumens, and has a comprehensive featureset that includes full CMY color mixing and linear CTO color correction, 7 dichroic colors including CTB and Violet, 6 rotating glass and 9 static-stamped metal interchangeable gobos, 3-facet and linear rotating prisms, frost filter, full 360° bi-directional animation wheel, motorized iris, focus, and auto-focus, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, plus a ton more. Additionally, it comes equipped with Elation's E-FLY™ internal wireless DMX transceiver, as well as 5-pin XLR, RJ45 etherCON, powerCON TRUE1 I/O connections. And that's not all...

Features

  • 270W Cool White 12,000 Lumen LED Spot Luminaire
  • Ultra-wide 6° to 48° Motorized Zoom
  • Full CMY Color Mixing and Linear CTO Color Correction
  • (7) Dichroic Colors including CTB and Violet
  • (6) Rotating and (9) Static-Stamped Interchangeable Gobos
  • 3-Facet and Linear Rotating Prisms and Frost Filter
  • Full 360° Bi-Directional Animation Wheel
  • High Speed Electronic Shutter and Strobe
  • Motorized Iris, Focus, and Auto-Focus
  • Variable Dimming Curve Modes
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • Elation's E-FLY™ Internal Wireless DMX Transceiver
  • Low Heat, Quiet Operation, Hibernation Mode
  • Adjustable LED Refresh Rate Frequency and Gamma
  • Flicker-free Operation For Broadcast TV and FILM

Specifications

  • Source:
    • 270 W Cool White LED Engine
    • 50,000 Hour Average LED Life* (*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
  • Photometic Data:
    • Measurement @16.4ft (5m) Full ON
    • 23,560 LUX 2,189 FC (6° Min Zoom)
    • 1,049 LUX 97 FC (48° Max Zoom)
  • Effects:
    • 6° - 48° Motorized Zoom
    • 3-Facet and Linear Rotating Prisms and Prism Macros
    • Full 360° Bi-Directional Rotating Animation Wheel
    • Frost Filter Hybrid Wash Effect
    • Motorized Zoom, Iris, Focus and Auto-Focus
    • High Speed Electronic Shutter and Strobe
    • Variable 16-Bit Dimming Curve Modes
    • Adjustable LED Refresh Rate Frequency and Gamma Brightness
  • Color:
    • 7 Dichroic Colors + CTB
    • Full CMY Color Mixing
    • Linear CTO Color Correction
  • Gobos:
    • 2 Gobo Wheels
    • 6 Interchangeable Rotating / Indexing Gobos
    • 9 Interchangeable Static-Stamped Metal Gobos
  • Contol/Connections:
    • 3 DMX Channel Modes (40 total channels)
    • RDM (Remote Device Management)
    • 6-Button Touch Control Panel
    • Full-Color 180° Reversible LCD Menu Display
    • 8- / 16-Bit Resolution Adjustable Movement
    • Elation's E-FLY™ Internal Wireless DMX Transceiver
    • 5-pin DMX In/Out
    • RJ45 etherCON In/Out (Art-NET, sACN)
    • powerCON TRUE1 Power In/Out
  • Dimensions (L x W x H): 16.4" x 11..2" x 25.4" (416 x 284 x 645mm)
  • Weight: 56.0 lbs. (25.4kg)
  • Electical/Thermal:
    • AC 100-240V - 50/60 Hz
    • 470 W Max Power Consumption
    • 14 °F to 113 °F (-10 °C to 45 °C)
  • Approvals/Ratings: CE | cETLus | IP20
