RapcoHorizon Music SN16-24GA
Unterminated 16 Channel Individually Shielded 24AWG Audio Snake Cable, Priced By The Foot

OUR PART #  SN16-24GA

Our Price: $2.58
List Price: $2.71
You save 5%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

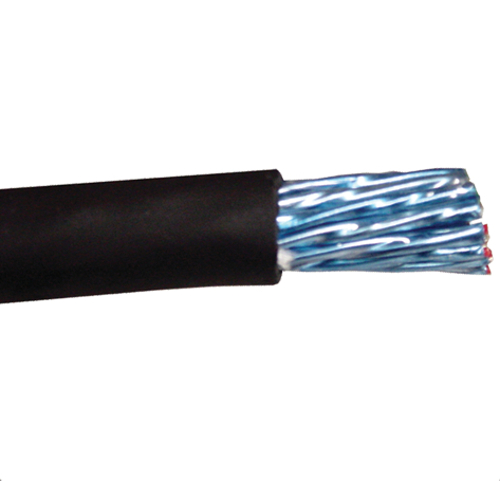

The RapcoHorizon SN16-24GA is a 16-pair, 24AWG stranded bare copper, polypropylene insulated, individually shielded multipair snake cable with an overall PVC jacket.

NOTE: This cable is priced by the foot. For more information on this and other products, contact your Sales Representative.

RapcoHorizon SN16-24GA Specifications:

  • Cable: SN16-24GA
  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • Capacitance: 25 pF/ft @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft @ 1 kHz
  • Characteristic Impedance: 60 Ohm nominal
  • D.C. Resistance @ 20°C: 24.5 Ohm/1000 ft

RapcoHorizon Music SN16-24GA
Unterminated 16 Channel Individually Shielded 24AWG Audio Snake Cable, Priced By The Foot

OUR PART #  SN16-24GA

Product Information:

The RapcoHorizon SN16-24GA is a 16-pair, 24AWG stranded bare copper, polypropylene insulated, individually shielded multipair snake cable with an overall PVC jacket.

NOTE: This cable is priced by the foot. For more information on this and other products, contact your Sales Representative.

RapcoHorizon SN16-24GA Specifications:

  • Cable: SN16-24GA
  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • Capacitance: 25 pF/ft @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft @ 1 kHz
  • Characteristic Impedance: 60 Ohm nominal
  • D.C. Resistance @ 20°C: 24.5 Ohm/1000 ft
