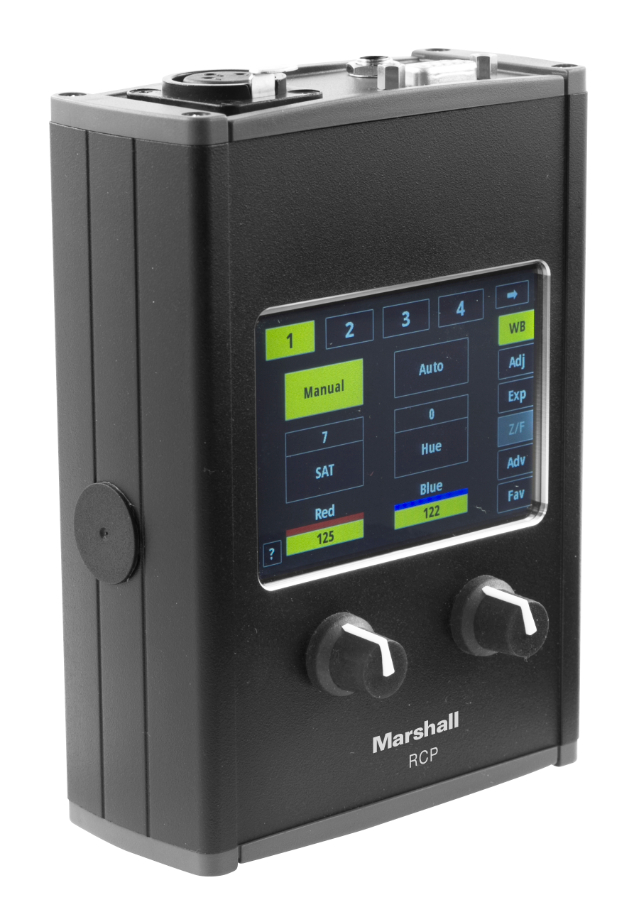

Marshall Electronics CV-RCP-100
Touchscreen RCP Camera Control

OUR PART #:  CV-RCP-100

The Marshall Electronics CV-RCP-100 Touchscreen RCP Camera Control unit allows for remote operation of up to seven broadcast cameras from up to 300m away via RS485 (Visca)...
Learn More
Our Price: $999.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV-RCP-100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics CV-RCP-100 Touchscreen RCP Camera Control unit allows for remote operation of up to seven broadcast cameras from up to 300m away via RS485 (Visca), intuitive touchscreen control, and user friendly fine-tune adjustment dials for quick changes on the fly.

Intuitive touchscreen interface includes self help dialogs, favorites settings, save features and intelligent menu and sub-menu layouts. Fine-tune finger dials enable precision adjustments for white balance, red/blue gain, gamma, black level, brightness, exposure, iris, shutter, resolution, frame-rate, and many more - simultaneously or one at a time. The CV-RCP-100 comes pre-programmed with control protocols for leading broadcast cameras, including Marshall POV, remote zoom, full-PTZ, as well as popular non-Marshall branded cameras on the market.

Marshall Electronics CV-RCP-100 Features:

  • Directly adjusts camera settings remotely via RS485 connect without having to manipulate on-screen display menu (individual & global set features)
  • Convenient touchscreen control with fine-tune adjustment knobs to adjust and match cameras
  • Enables remote controls for brightness (AE offset), white balance, exposure, paint (red/blue), gamma, gain, iris, shutter, saturation, output format (res/fps), Pan-Tilt-Zoom control, and more
  • Easy access 3-pin XLR connection (RS485/RS232)
  • USB interface for memory saves via USB stick and firmware updates in the field
  • Intuitive menus and sub-menus with help dialogs and favorites presets
  • Set multiple cameras with one preset or multiple presets saveable on-board or on external USB memory sticks
  • Low power consumption requires 9-26V power at less than 12 watts (AC or portable batteries)
  • Expandable frame for mounting in broadcast trucks, consoles and racks
